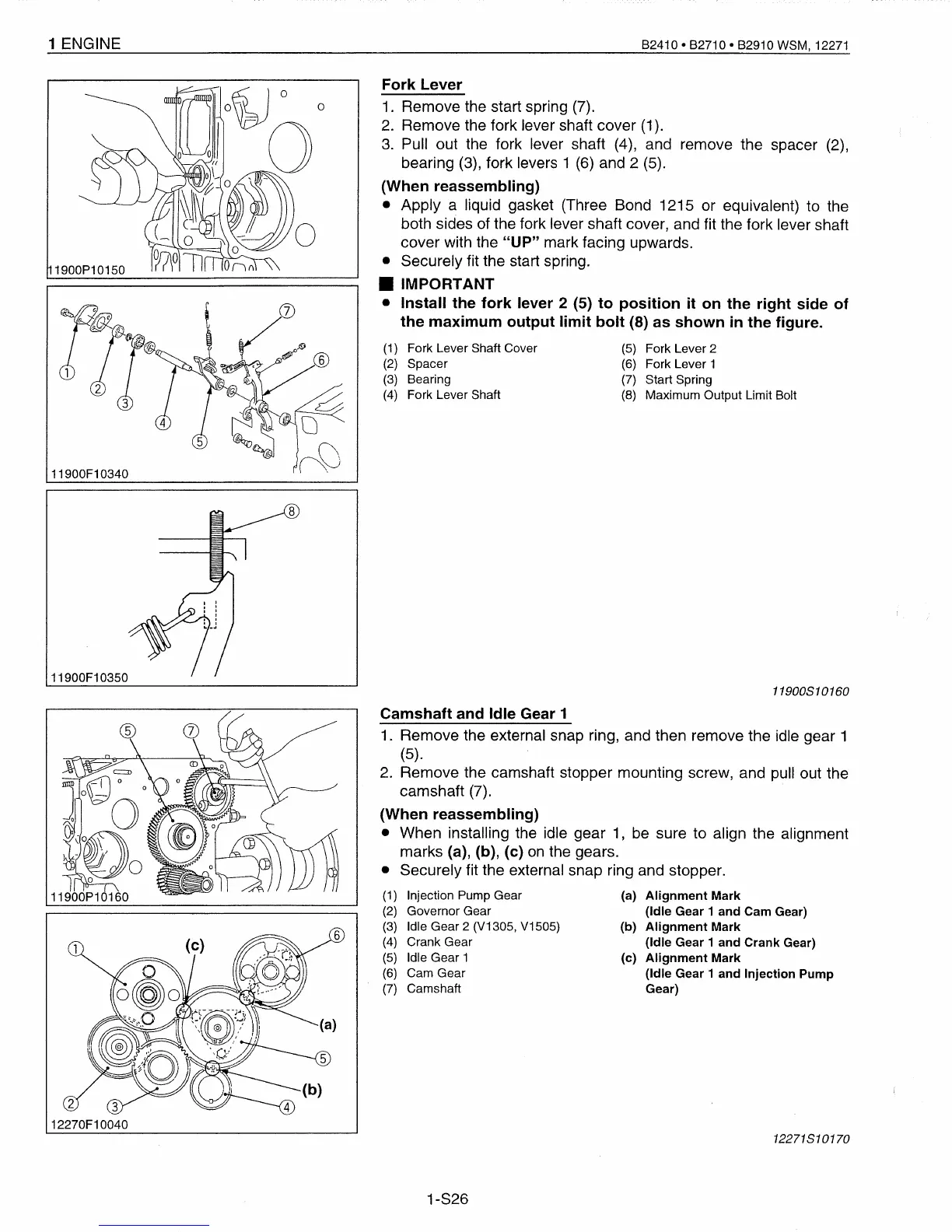

1 ENGINE
B2410· B2710·
B2910 WSM, 12271
(5) Fork Lever 2
(6) Fork Lever 1
(7) Start Spring
(8) Maximum Output Limit Bolt
(1)
Fork Lever Shaft Cover
(2)
Spacer
(3)
Bearing
(4)
Fork Lever Shaft
Fork
Lever
1.
Remove the start spring (7).
2.
Remove the fork lever shaft cover (1).
3.
Pull out the fork lever shaft (4), and remove the spacer (2),
bearing (3), fork levers 1 (6) and 2 (5).
(When
reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) to the
both sides of the fork lever shaft cover, and fit the fork lever shaft
cover with the
"UP"
mark facing upwards.
• Securely fit the start spring.
• IMPORTANT
•
Install
the
fork
lever 2 (5)
to
position
it
on
the
right
side
of
the
maximum
output
limit
bolt
(8)
as
shown
in
the
figure.
®
1900P10150
11900F10340
11900F10350
11900810160
Camshaft
and
Idle Gear 1
1. Remove the external snap ring, and then remove the idle gear 1
(5).
2.
Remove the camshaft stopper mounting screw, and pull out the
camshaft (7).
(When
reassembling)
• When installing the idle gear 1, be sure to align the alignment
marks (a), (b), (c) on the gears.
• Securely fit the external snap ring and stopper.
(1)
Injection Pump Gear (a)
Alignment
Mark
(2)
Governor Gear (Idle Gear 1
and
Cam Gear)
(3)
Idle Gear 2 (V1305, V1505) (b)
Alignment
Mark
(4)
Crank Gear (Idle Gear 1
and
Crank
Gear)
(5)
Idle Gear 1 (c)
Alignment
Mark
(6)
Cam Gear (Idle Gear 1
and
Injection
Pump
(7)
Camshaft Gear)
12271810170
1-826
