9 ELECTRICAL SYSTEM
[3]

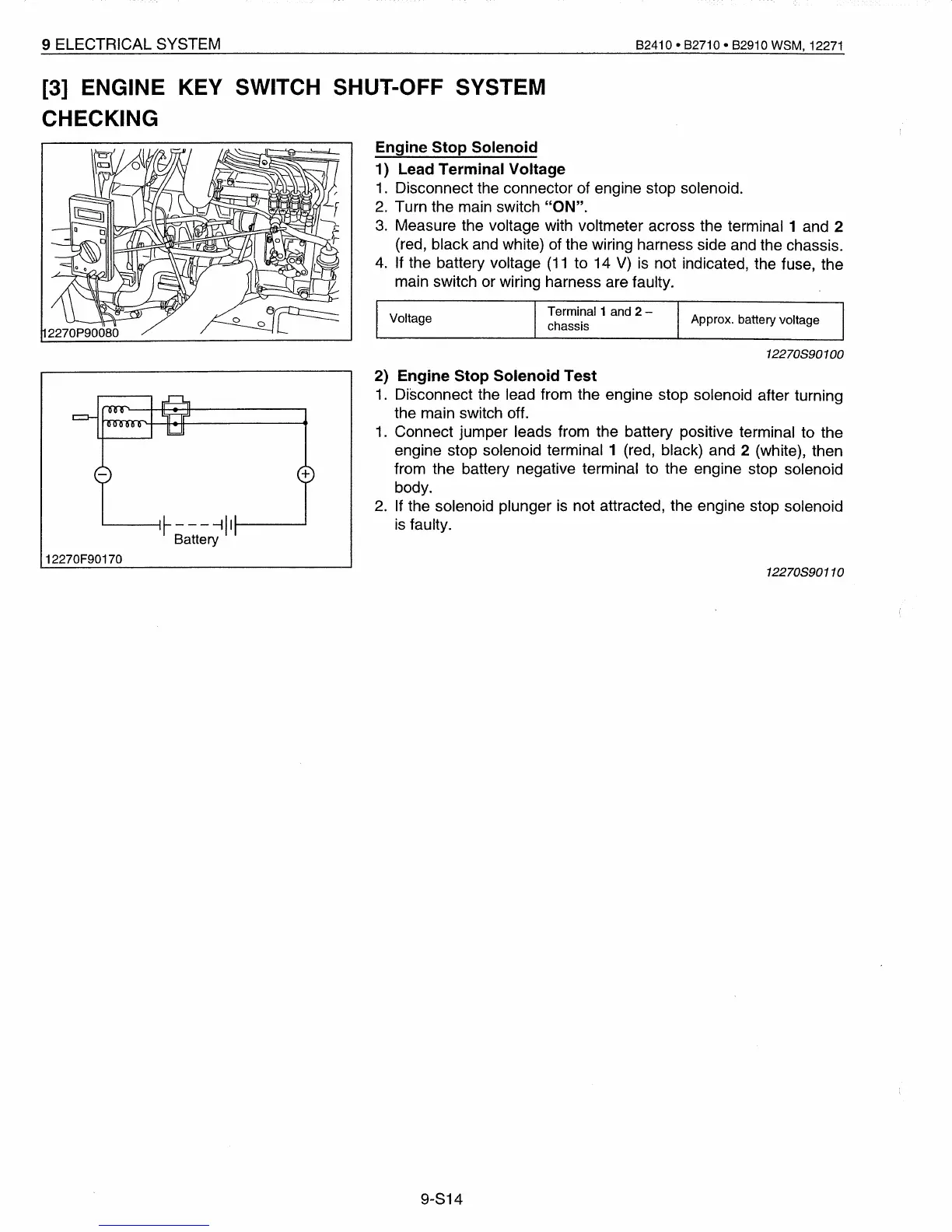

ENGINE KEY SWITCH SHUT-OFF SYSTEM
CHECKING
82410 • 82710 • 82910 WSM, 12271
Engine Stop Solenoid
1) Lead Terminal Voltage
1.
Disconnect the connector of engine stop solenoid.
2.
Turn the main switch
"ON".
3.
Measure the voltage with voltmeter across the terminal 1 and 2
(red, black and white)
of
the wiring harness side and the chassis.
4.
If the battery voltage
(11
to 14
V)
is not indicated, the fuse, the
main switch or wiring harness are faulty.
Voltage
Terminal 1 and
2-
chassis
Approx. battery voltage
12270890100
1...-----1
r---
-11
1
1------1
Battery
12270F90170
2) Engine Stop Solenoid Test
1.
Disconnect the lead from the engine stop solenoid after turning
the main switch off.
1.
Connect jumper leads from the battery positive terminal to the
engine stop solenoid terminal 1 (red, black) and 2 (white), then
from the battery negative terminal to the engine stop solenoid
body.
2.
If the solenoid plunger
is
not attracted, the engine stop solenoid
is
faulty.
12270890110
9-S14
