B2410 • B2710 • B2910 WSM, 12271
G GENERAL
12490GOO
160
(4)
Clutch Housing
(5)
Safety Switch
(6)
Clutch Rod
(1)
Stopper Bolt
(2)
Clutch Pedal Rod
(3)
Lock Nut for Stopper Bolt

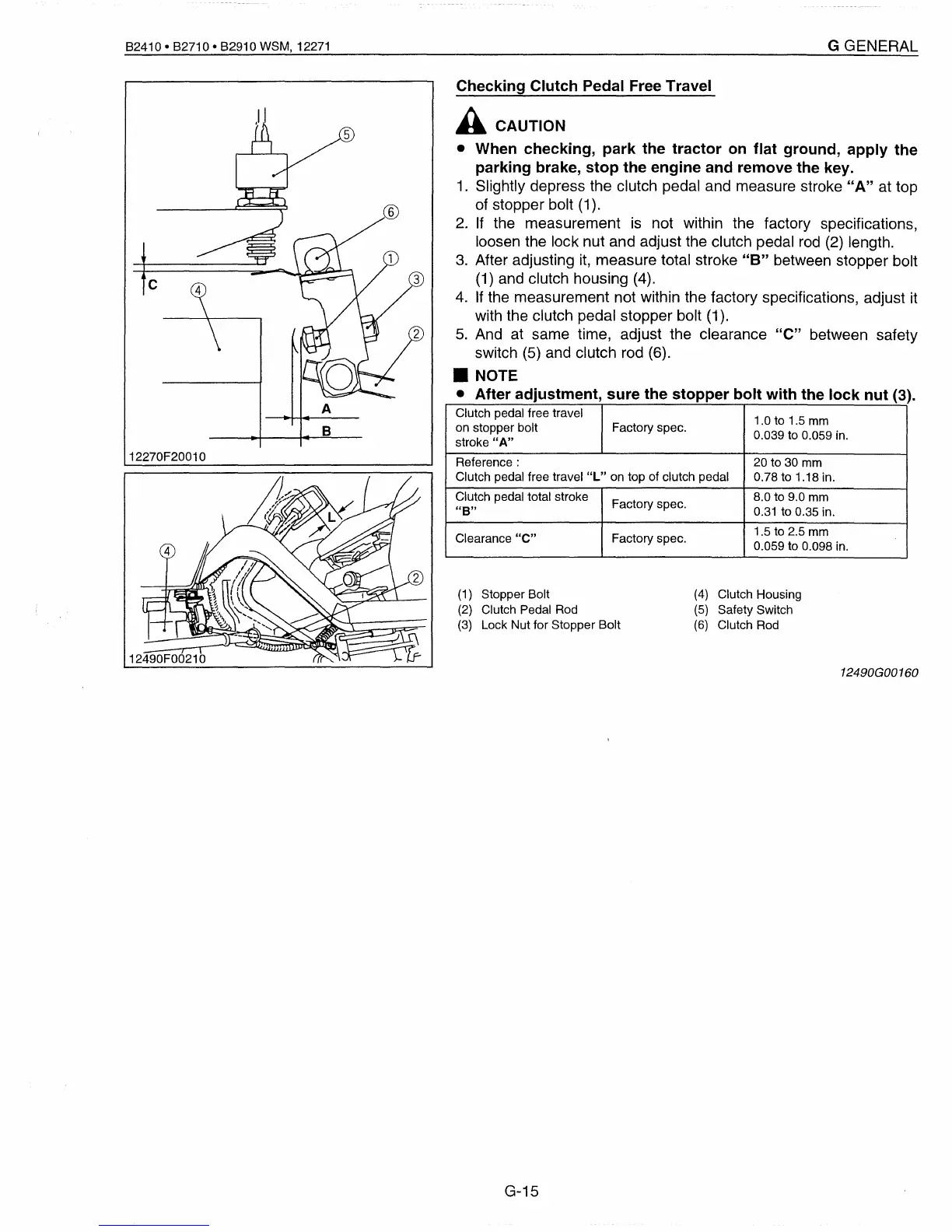

Checking
Clutch
Pedal Free Travel
A CAUTION
• When
checking,
park
the
tractor
on
flat
ground,
apply
the
parking
brake,
stop
the
engine
and
remove
the
key.
1.
Slightly depress the clutch pedal and measure
stroke"
A"
at top
of stopper bolt (1).
2.
If
the measurement is not within the factory specifications,
loosen the lock nut and adjust the clutch pedal rod (2) length.
3.
After adjusting it, measure total stroke
"8"
between stopper bolt
(1) and clutch housing (4).
4.
If the measurement not within the factory specifications, adjust it
with the clutch pedal stopper bolt (1).
5.
And at same time, adjust the clearance
"C"
between safety
switch (5) and clutch rod (6).
• NOTE
•
After
adjustment,
sure
the
stopper
bolt
with
the
lock
nut
(3).
Clutch pedal free travel
1.0 to 1.5 mm
on stopper bolt
Factory spec.
0.039 to 0.059 in.
stroke
"A"
Reference:
20 to
30
mm
Clutch pedal free travel
"L"
on top of clutch pedal
0.78 to 1.18 in.
Clutch pedal total stroke
Factory spec.
8.0 to 9.0 mm
"8"
0.31
to 0.35 in.
Clearance
"e"
Factory spec.
1.5
to
2.5 mm
0.059 to 0.098 in.
A
B
c
12270F20010
G-15
