B2410· B2710· B2910 WSM, 12271

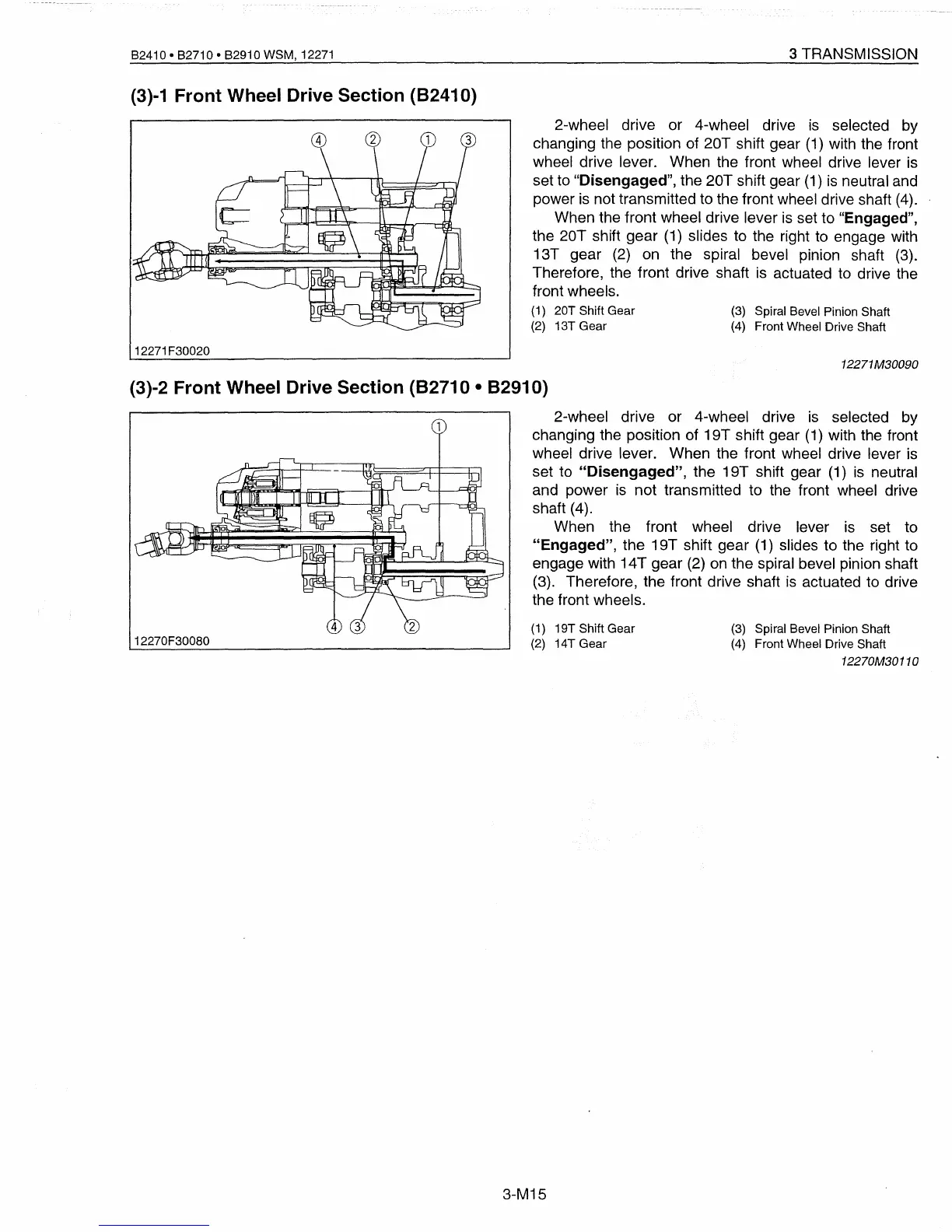

(3)-1 Front Wheel Drive Section (82410)
12271F30020
3 TRANSMISSION
2-wheel drive or 4-wheel drive
is selected by
changing the position of 20T shift gear
(1) with the front
wheel drive lever. When the front wheel drive lever
is
set to "Disengaged", the 20T shift gear (1) is neutral and
power
is not transmitted to the front wheel drive shaft (4).
When the front wheel drive lever is set to "Engaged",
the 20T shift gear (1) slides to the right to engage with
13T gear
(2) on the spiral bevel pinion shaft (3).
Therefore, the front drive shaft is actuated to drive the
front wheels.
(1) 20T Shift Gear (3) Spiral Bevel Pinion Shaft
(2) 13T Gear (4) Front Wheel Drive Shaft
12271M30090
(3)-2 Front Wheel Drive Section (82710 • 82910)
2-wheel drive or 4-wheel drive is selected by
changing the position of 19T shift gear (1) with the front
wheel drive lever. When the front wheel drive lever is
set to "Disengaged", the 19T shift gear (1) is neutral
and power
is not transmitted to the front wheel drive
shaft (4).
When the front wheel drive lever is set to
"Engaged", the 19T shift gear (1) slides to the right to
engage with 14T gear (2) on the spiral bevel pinion shaft
(3). Therefore, the front drive shaft is actuated to drive
the front wheels.
12270F30080
(1) 19T Shift Gear
(2) 14T Gear
3-M15
(3) Spiral Bevel Pinion Shaft
(4) Front Wheel Drive Shaft
12270M30110

Kubota B2910 Specifications

General

Fuel Type	Diesel
Transmission Type	Hydrostatic
Hydraulic System	Open center
3-Point Hitch	Category I
Lift Capacity	1, 323 lbs (600 kg)
Drive	4WD
Engine Type	Diesel, 4-cycle, liquid-cooled
Horsepower	30 hp
Number of Gears	Infinite (3 ranges)
Wheelbase	63 inches
PTO Horsepower	22 hp
