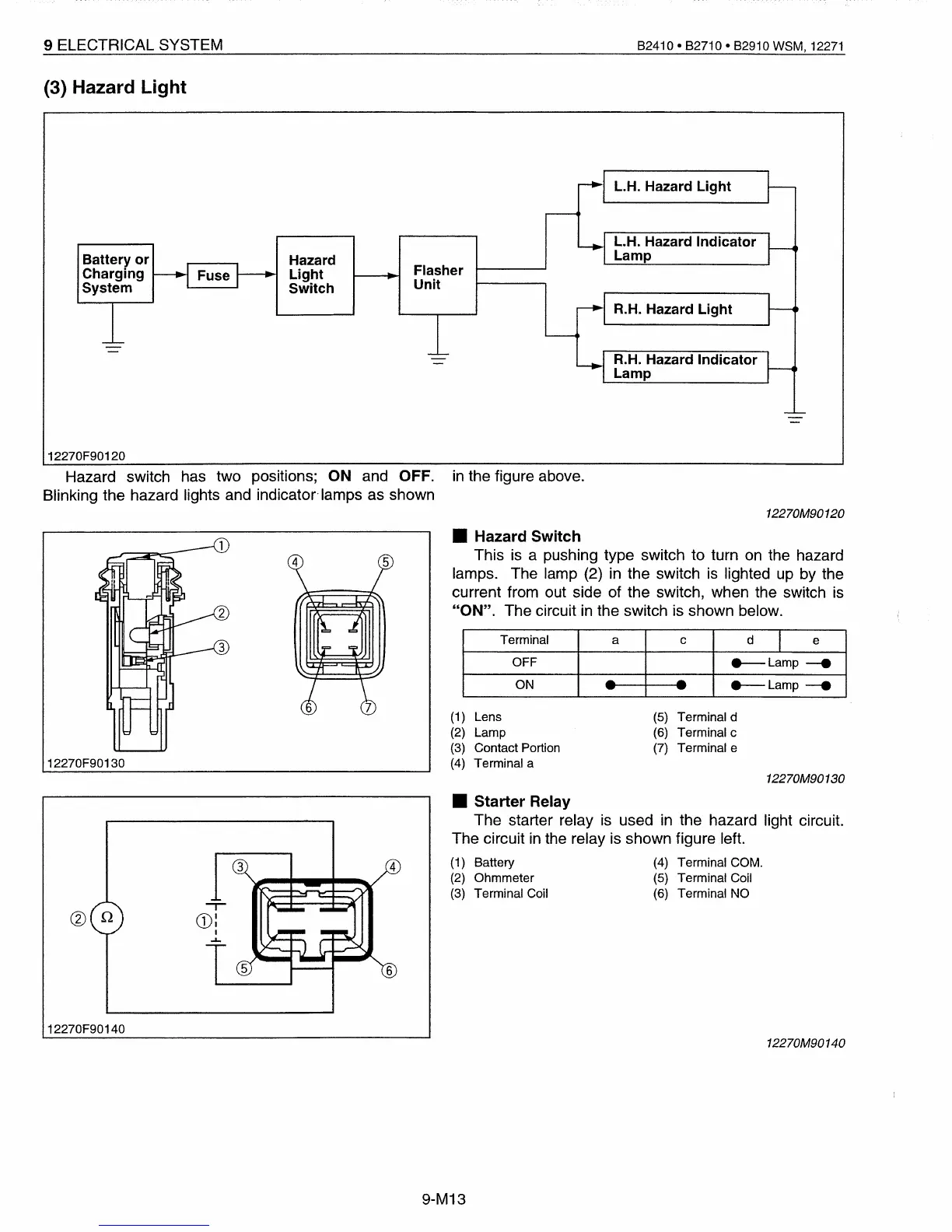

9 ELECTRICAL SYSTEM
(3) Hazard Light
82410· 82710· 82910 WSM, 12271
Battery or
Charging
System
12270F90120
Hazard
Light
Switch
Flasher
Unit
L.H. Hazard Light
L.H. Hazard Indicator
Lamp
R.H. Hazard Light
R.H. Hazard Indicator
Lamp
Hazard switch has two positions; ON and OFF. in the figure above.
Blinking the hazard lights and indicator'lamps as shown
12270M90120
Terminal a
c
d
I
e
OFF
___ Lamp -e
ON
- -
___ Lamp -e
- -
• Hazard Switch
This is a pushing type switch to turn on the hazard
lamps. The lamp (2) in the switch is lighted up by the
current from out side of the switch, when the switch is
"ON". The circuit in the switch is shown below.
12270F90130
(1) Lens
(2) Lamp
(3) Contact Portion
(4) Terminal a
(5) Terminal d
(6) Terminal c
(7) Terminal e
12270M90130
12270F90140
• Starter Relay
The starter relay is used in the hazard light circuit.
The circuit in the relay is shown figure left.
(1) 8attery (4) Terminal COM.
(2) Ohmmeter (5) Terminal Coil
(3) Terminal Coil (6) Terminal NO
12270M90140
9-M13

Kubota B2910 Specifications

General

Fuel Type	Diesel
Transmission Type	Hydrostatic
Hydraulic System	Open center
3-Point Hitch	Category I
Lift Capacity	1, 323 lbs (600 kg)
Drive	4WD
Engine Type	Diesel, 4-cycle, liquid-cooled
Horsepower	30 hp
Number of Gears	Infinite (3 ranges)
Wheelbase	63 inches
PTO Horsepower	22 hp
