82410 • 82710 • 82910 WSM, 12271
1 ENGINE
• IMPORTANT
• Do
not
hit
the
valve
guide
with
a hammer
during
replacement.
(A) When
Removing
(B) When
Installing

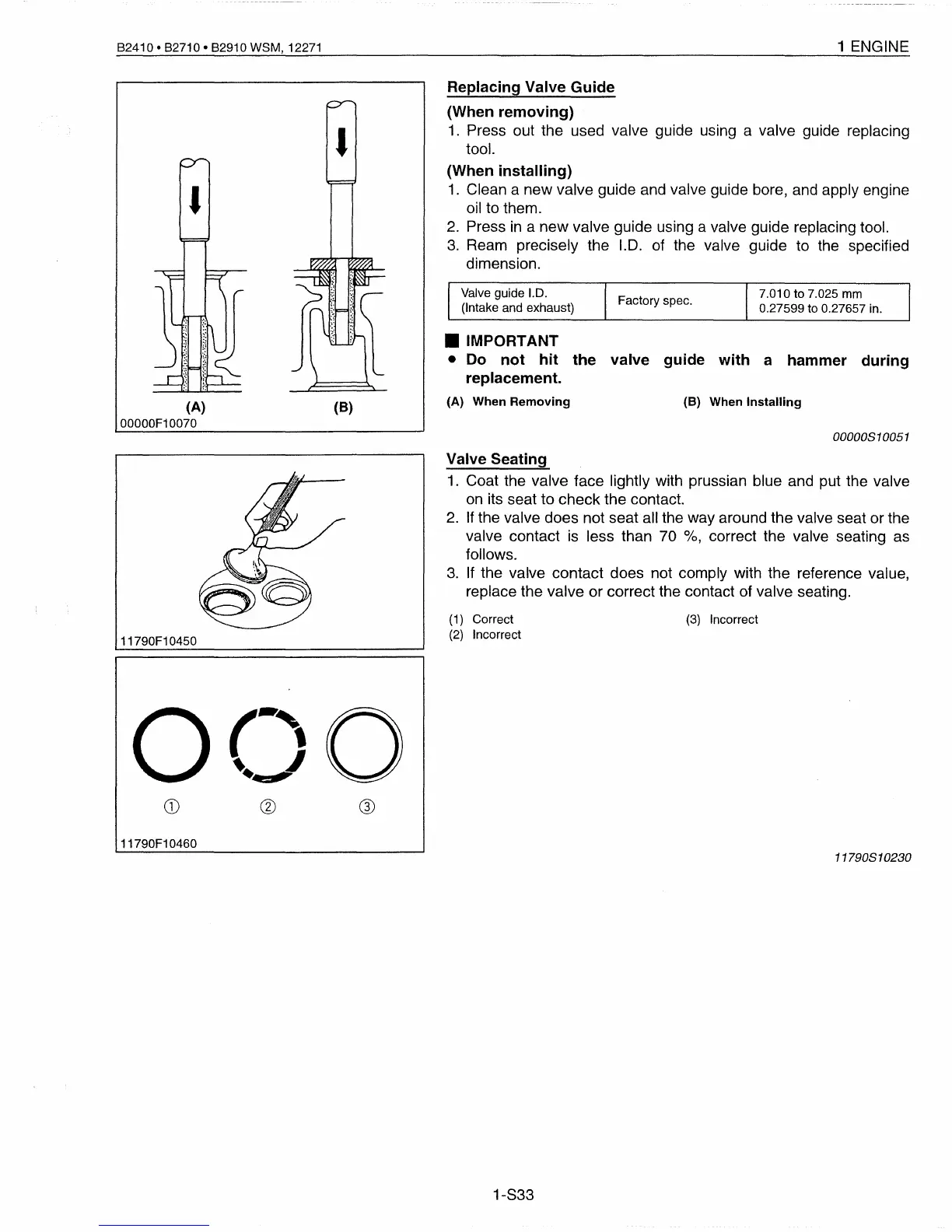

Replacing Valve
Guide
(When
removing)
1.
Press out the used valve guide using a valve guide replacing
tool.
(When
installing)
1.
Clean a new valve guide and valve guide bore, and apply engine
oil to them.
2.
Press
in
a new valve guide using a valve guide replacing tool.
3.
Ream precisely the I.D. of the valve guide to the specified
dimension.
(A)
00000F10070
(B)
Valve guide 1.0.
(Intake and exhaust)
Factory spec.
7.010 to 7.025
mm
0.27599 to 0.27657
in
.
00000810051
Valve Seating
1.
Coat the valve face lightly with prussian blue and put the valve
on its seat to check the contact.
2.
If
the valve does not seat all the way around the valve seat or the
valve contact is less than 70
%,
correct the valve seating as
follows.
3.
If
the valve contact does not comply with the reference value,
replace the valve or correct the contact of valve seating.
11790F10450
o
CD
11790F10460
o
®
(1)
Correct
(2)
Incorrect
1-833
(3)
Incorrect
11790810230
To Next Page
