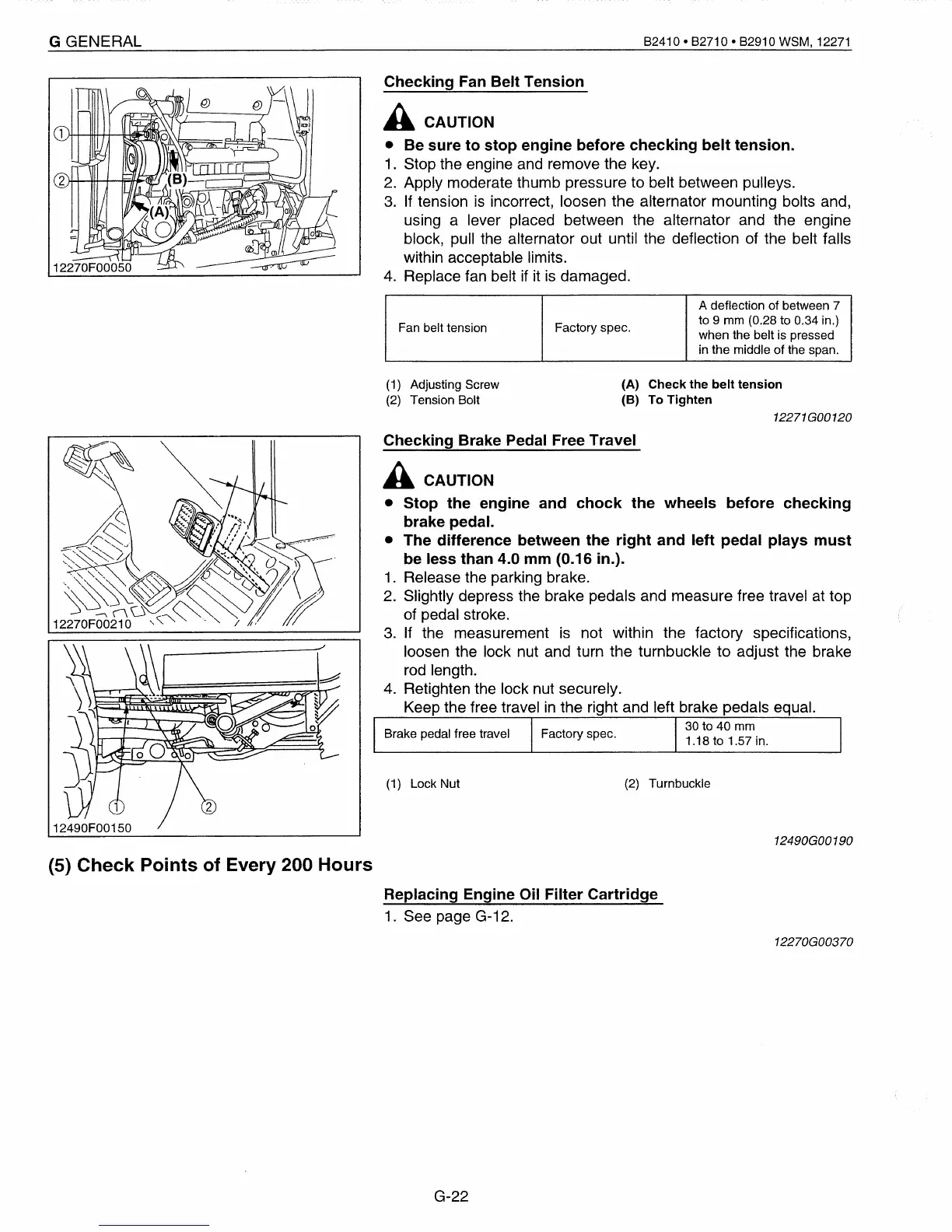

G GENERAL
B2410·
B2710·
B2910 WSM, 12271
Checking
Fan
Belt
Tension
A CAUTION
• Be
sure
to
stop
engine
before
checking
belt
tension.
1.
Stop the engine and remove the key.
2.
Apply moderate thumb pressure to belt between pulleys.
3.
If tension
is
incorrect, loosen the alternator mounting bolts and,
using a lever placed between the alternator and the engine
block, pull the alternator out until the deflection of the belt falls
within acceptable limits.
4.
Replace fan belt
if
it
is
damaged.
A deflection of between 7
Fan belt tension
Factory spec.
to 9 mm (0.28 to 0.34 in.)
when the belt is pressed
in the middle of the span.
(1) Adjusting Screw
(2) Tension Bolt
(A)
Check
the
belt
tension
(B) To
Tighten
12271G00120
Checking
Brake Pedal Free Travel
A CAUTION
•
Stop
the
engine
and
chock
the
wheels
before
checking
brake pedal.
• The
difference
between
the
right
and
left pedal
plays
must
be less
than
4.0
mm
(0.16 in.).
1.
Release the parking brake.
2.
Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3.
If
the measurement
is
not within the factory specifications,
loosen the lock nut and turn the turnbuckle to adjust the brake
rod length.
4.
Retighten the lock nut securely.
Keep the free travel
in
the right and left brake pedals equal.
(5)
Check
Points
of
Every 200
Hours
Brake pedal free travel
(1) Lock Nut
Factory spec.
30
to 40 mm
1.18 to 1.57 in.
(2)
Turnbuckle
12490G00190
Replacing Engine Oil
Filter
Cartridge
1.
See page G-12.
G-22
12270G00370
To Next Page
