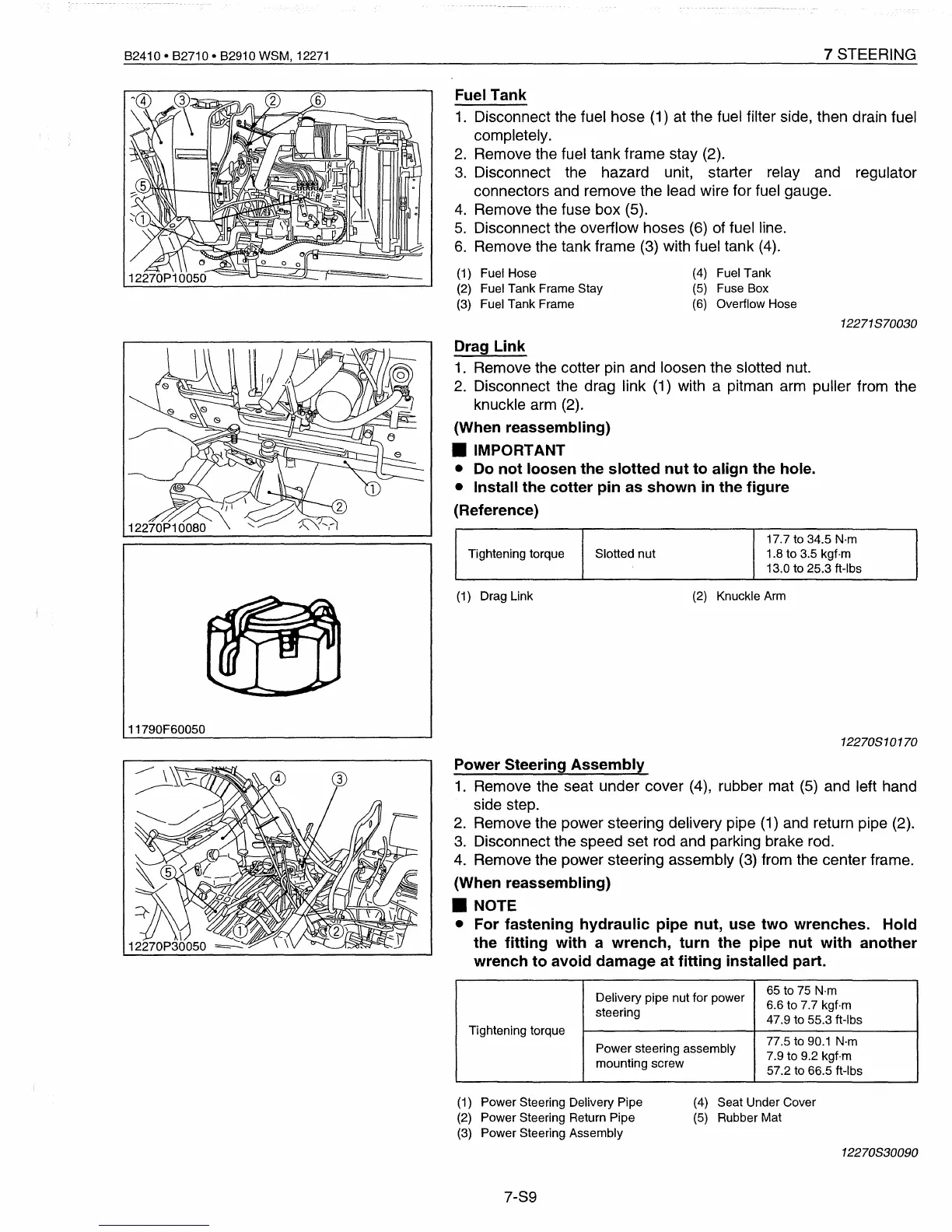

82410 • 82710 • 82910 WSM,
12271
7 STEERING
Fuel Tank
1.
Disconnect the fuel hose
(1)
at the fuel filter side, then drain fuel
completely.
2.
Remove the fuel tank frame stay (2).
3.
Disconnect the hazard unit, starter relay and regulator
connectors and remove the lead wire for fuel gauge.
4.
Remove the fuse box (5).
5.
Disconnect the overflow hoses
(6)
of fuel line.
6.
Remove the tank frame
(3)
with fuel tank
(4).
(1)
FuelHose
(4)
FuelTank
(2)
Fuel Tank Frame Stay
(5)
Fuse 80x
(3)
Fuel Tank Frame
(6)
Overflow Hose
12271870030
Drag Link
1.
Remove the cotter pin and loosen the slotted nut.
2.
Disconnect the drag link (1) with a pitman arm puller from the
knuckle arm (2).
(When reassembling)
• IMPORTANT
•
Do
not loosen the slotted nut to align the hole.
• Install the cotter pin as shown in the figure
(Reference)
17.7
to
34.5
N·m
Tightening torque Slotted nut 1.8 to 3.5 kgf·m
13.0 to 25.3 ft-Ibs
11790F60050
(1)
Drag Link
(2)
Knuckle
Arm
12270810170
Power Steering Assembly
1.
Remove the seat under cover (4), rubber mat
(5)
and left hand
side step.
2.
Remove the power steering delivery pipe
(1)
and return pipe (2).
3.
Disconnect the speed set rod and parking brake rod.
4.
Remove the power steering assembly
(3)
from the center frame.
(When reassembling)
• NOTE
• For fastening hydraulic pipe nut, use two wrenches. Hold
the fitting with a wrench, turn the pipe nut with another
wrench to avoid damage at fitting installed part.
Delivery pipe nut for power
65
to
75
N·m
6.6 to 7.7 kgf·m
steering
47.9 to 55.3 ft-Ibs
Tightening torque
77.5
to
90.1
N'm
Power steering assembly
7.9 to 9.2 kgf·m
mounting screw
57.2 to 66.5 ft-Ibs
(1)
Power Steering Delivery Pipe
(2)
Power Steering Return Pipe
(3)
Power Steering Assembly
7-S9
(4) Seat Under Cover
(5)
Rubber Mat
12270830090
