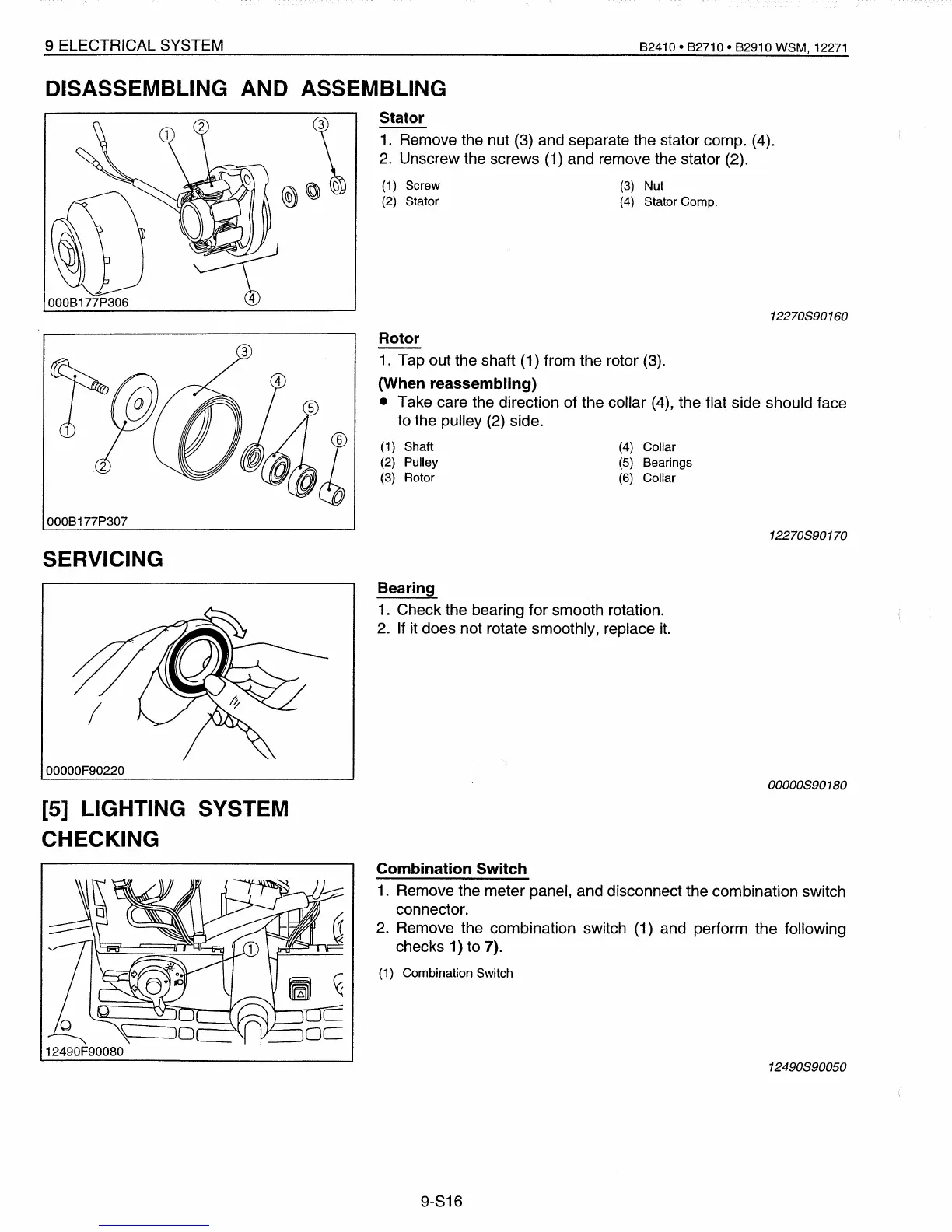

9 ELECTRICAL SYSTEM
DISASSEMBLING AND ASSEMBLING
B2410· B2710· B2910 WSM, 12271
(4) Collar
(5) Bearings
(6) Collar
000B177P306
000B177P307
SERVICING
00000F90220
[5] LIGHTING SYSTEM
CHECKING
12490F90080
Stator
--
1. Remove the nut (3) and separate the stator compo (4).
2. Unscrew the screws (1) and remove the stator (2).
(1) Screw (3) Nut
(2) Stator (4) Stator Compo
12270890160
Rotor
1. Tap out the shaft (1) from the rotor (3).
(When reassembling)
• Take care the direction of the collar (4), the flat side should face
to the pulley (2) side.
(1) Shaft
(2) Pulley
(3) Rotor
12270890170
Bearing
1. Check the bearing for smooth rotation.
2.
If it does not rotate smoothly, replace it.
00000890180
Combination Switch
1. Remove the meter panel, and disconnect the combination switch
connector.
2. Remove the combination switch (1) and perform the following
checks 1) to 7).
(1) Combination Switch
12490890050
9-816
