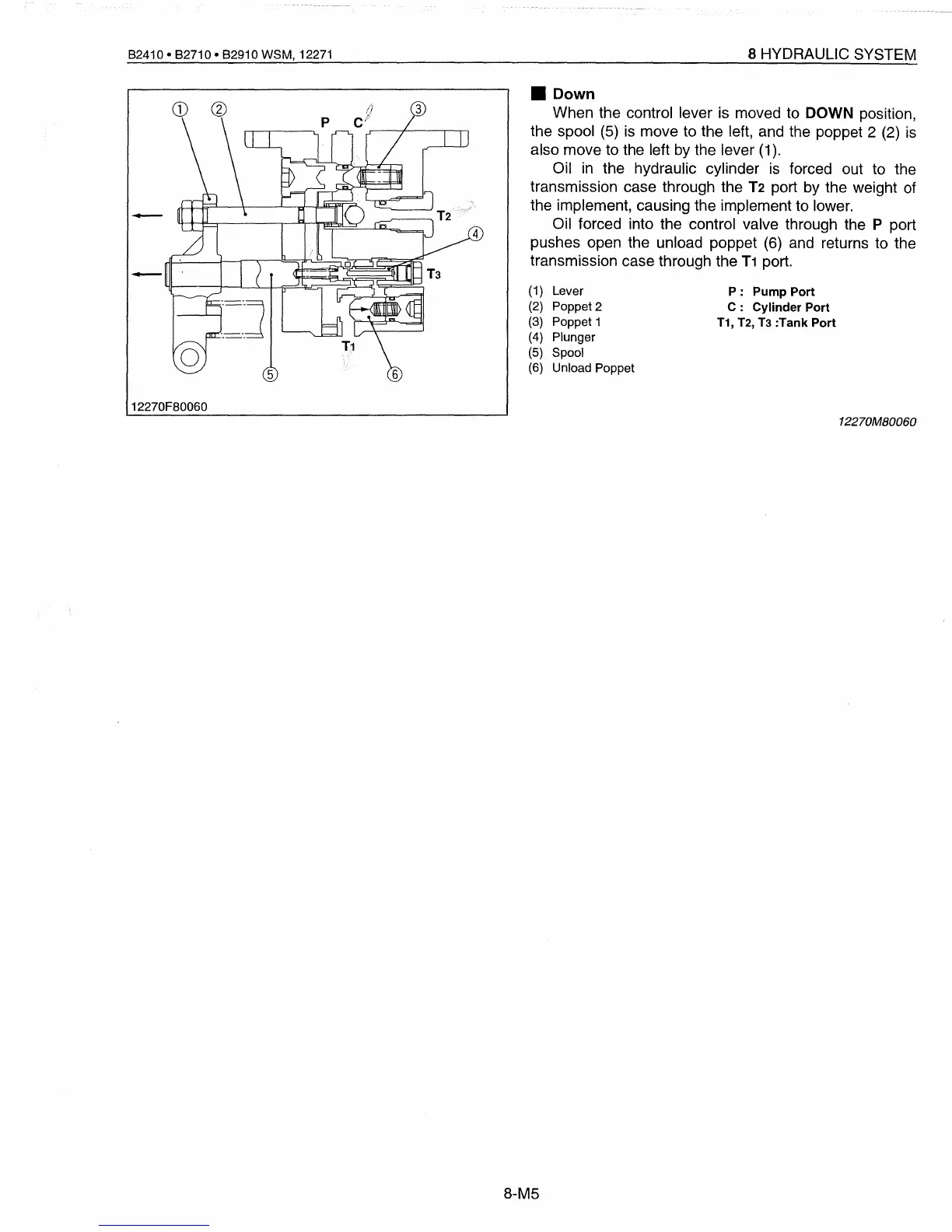

82410 • 82710 • 82910 WSM, 12271 8 HYDRAULIC SYSTEM
• Down
When the control lever is moved to DOWN position,
the spool (5) is move to the left, and the poppet 2 (2) is
also move to the left by the lever (1).
Oil in the hydraulic cylinder is forced out to the
transmission case through the T2 port by the weight of
the implement, causing the implement to lower.
Oil forced into the control valve through the P port
pushes open the unload poppet (6) and returns to the
transmission case through the T1 port.
-
-
12270F80060
(1) Lever
(2) Poppet 2
(3) Poppet 1
(4) Plunger
(5) Spool
(6) Unload Poppet
8-M5
P: Pump Port
C: Cylinder Port
11, 12, 13 :1ank Port
12270MB0060
