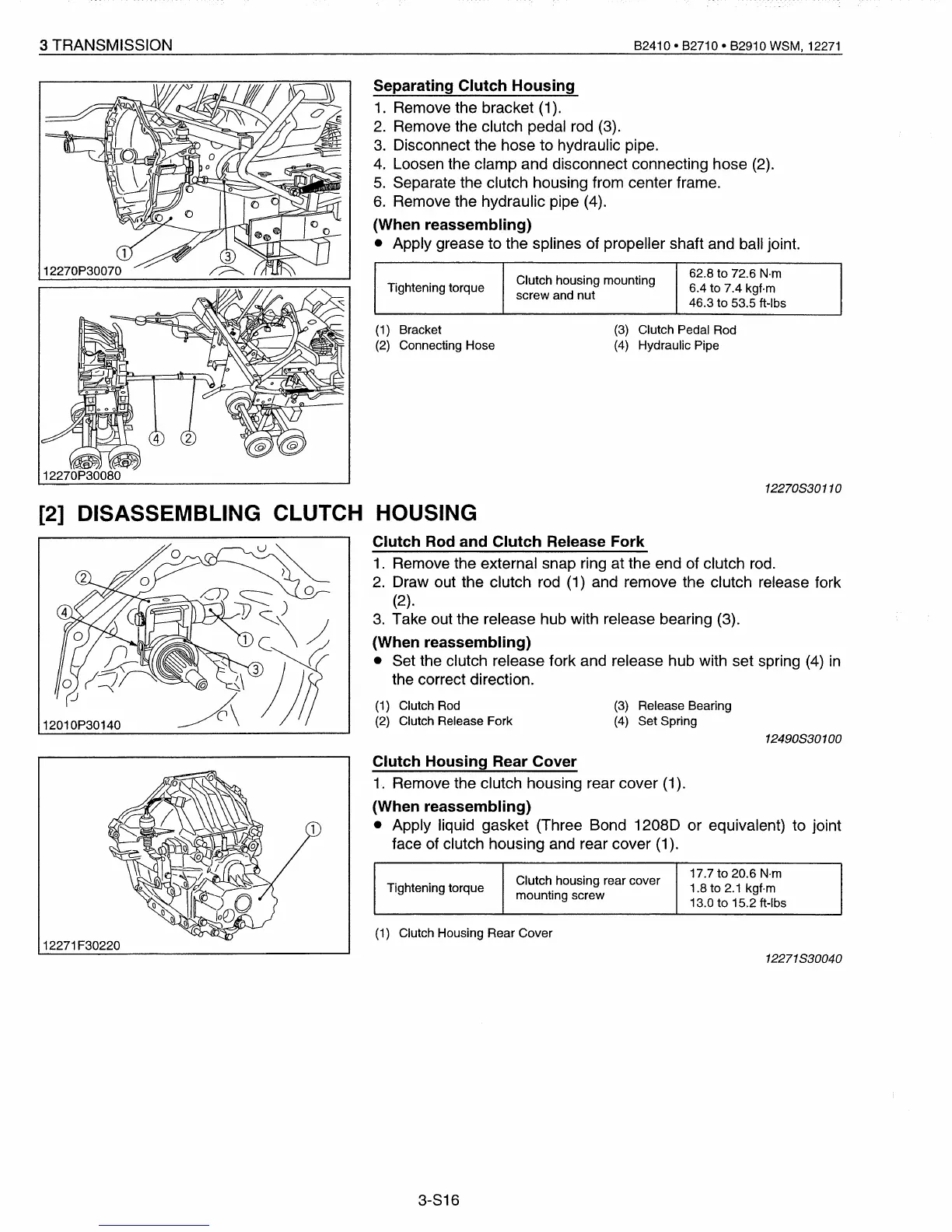

3 TRANSMISSION
B2410 • B271 0 • B2910 WSM, 12271
Clutch housing mounting
62.8 to 72.6
N·m
Tightening torque
6.4 to 7.4 kgf·m
screw and nut
46.3 to 53.5 ft-Ibs
Separating Clutch Housing
1. Remove the bracket (1).
2. Remove the clutch pedal rod (3).
3. Disconnect the hose to hydraulic pipe.
4. Loosen the clamp and disconnect connecting hose (2).
5. Separate the clutch housing from center frame.
6. Remove the hydraulic pipe (4).
(When reassembling)
• Apply grease to the splines of propeller shaft and ball joint.
(1) Bracket
(2) Connecting Hose
(3) Clutch Pedal Rod
(4) Hydraulic Pipe
12270830110
12490830100
(3) Release Bearing
(4) Set Spring
(1) Clutch Rod
(2) Clutch Release Fork
12010P30140
[2] DISASSEMBLING CLUTCH HOUSING
Clutch Rod and Clutch Release Fork
1. Remove the external snap ring at the end of clutch rod.
2. Draw out the clutch rod (1) and remove the clutch release fork
(2).
3. Take out the release hub with release bearing (3).
(When reassembling)
• Set the clutch release fork and release hub with set spring (4) in
the correct direction.
12271F30220
Clutch Housing Rear Cover
1. Remove the clutch housing rear cover (1).
(When reassembling)
• Apply liquid gasket (Three Bond 12080 or equivalent) to joint
face of clutch housing and rear cover (1).
Clutch housing rear cover
17.7 to 20.6 N·m
Tightening torque
1.8 to
2.1 kgf·m
mounting screw
13.0 to 15.2 ft-Ibs
(1) Clutch Housing Rear Cover
12271830040
3-S16
