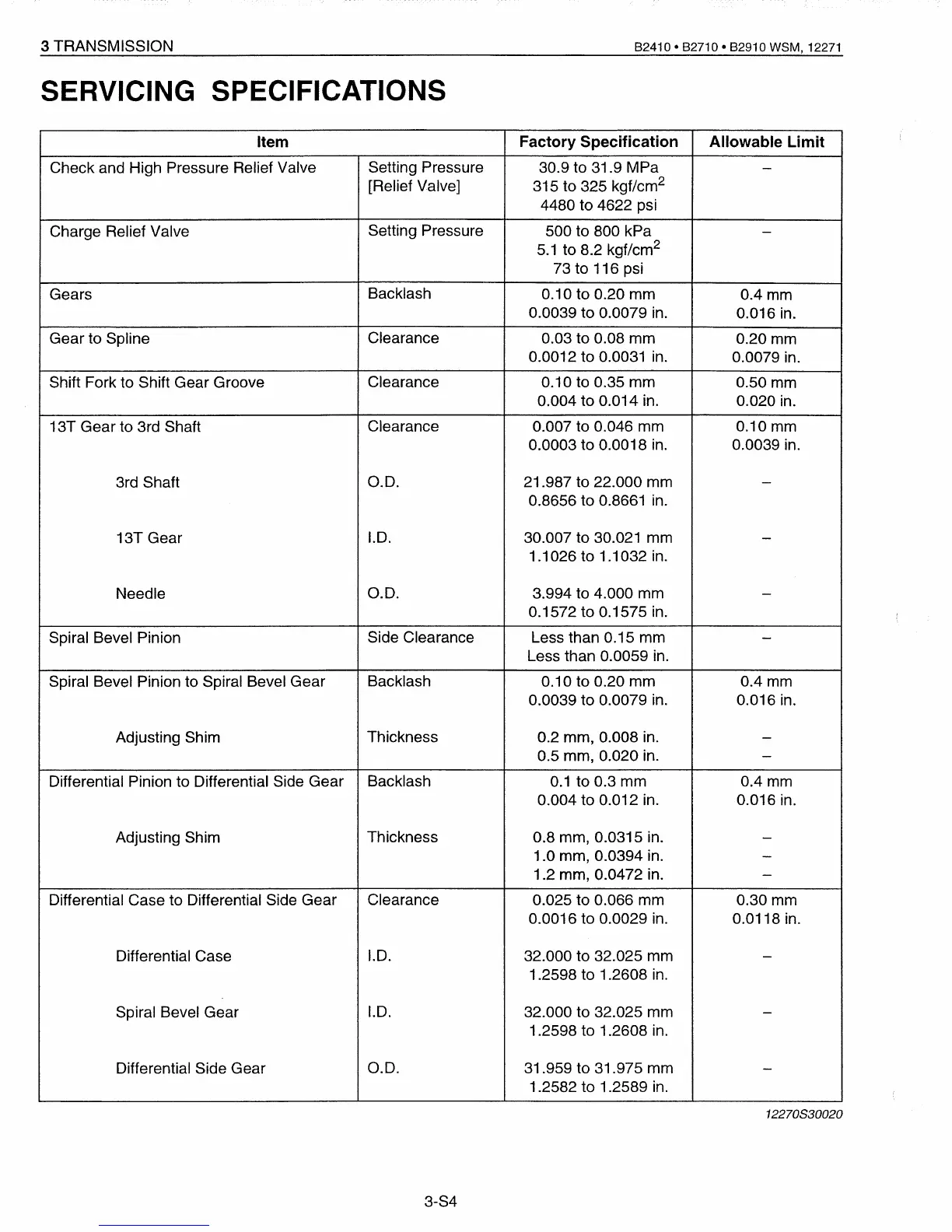

3 TRANSMISSION
SERVICING SPECIFICATIONS
82410 • 82710 • 82910 WSM, 12271
Item
Factory Specification
Allowable Limit
Check and High Pressure Relief Valve
Setting Pressure
30.9 to 31.9 MPa
-
[Relief Valve]
315 to 325 kgf/cm
2
4480 to 4622 psi
Charge Relief Valve
Setting Pressure
500 to 800 kPa
-
5.1
to 8.2 kgf/cm
2
73 to 116 psi
Gears
Backlash
0.10 to 0.20 mm
O.4mm
0.0039 to 0.0079 in.
0.016 in.
Gear to Spline
Clearance
0.03 to 0.08 mm
0.20 mm
0.0012 to 0.0031 in.
0.0079 in.
Shift Fork to Shift Gear Groove
Clearance
0.10 to 0.35 mm 0.50 mm
0.004 to 0.014 in. 0.020 in.
13T Gear to 3rd Shaft
Clearance
0.007 to 0.046 mm
0.10 mm
0.0003 to 0.0018
in.
0.0039 in.
3rd Shaft
0.0.
21.987 to 22.000 mm
-
0.8656 to 0.8661 in.
13T Gear
1.0. 30.007 to 30.021 mm
-
1.1026 to 1.1032 in.
Needle
0.0.
3.994 to 4.000 mm
-
0.1572 to 0.1575 in.
Spiral Bevel Pinion
Side Clearance Less than 0.15 mm
-
Less than 0.0059 in.
Spiral Bevel Pinion to Spiral Bevel Gear
Backlash 0.10 to 0.20 mm O.4mm
0.0039 to 0.0079 in. 0.016 in.
Adjusting Shim
Thickness 0.2 mm, 0.008 in.
-
0.5 mm, 0.020 in.
-
Differential Pinion to Differential Side Gear Backlash
0.1
to 0.3 mm O.4mm
0.004 to 0.012 in. 0.016 in.
Adjusting Shim
Thickness 0.8 mm, 0.0315 in.
-
1.0 mm, 0.0394 in.
-
1.2 mm, 0.0472 in.
-
Differential Case to Differential Side Gear
Clearance 0.025 to 0.066 mm
0.30 mm
0.0016 to 0.0029 in. 0.0118 in.
Differential Case
1.0. 32.000 to 32.025 mm
-
1.2598 to 1.2608
in.
Spiral Bevel Gear
1.0. 32.000 to 32.025 mm
-
1.2598 to 1.2608 in.
Differential Side Gear
0.0.
31.959 to 31.975 mm
-
1.2582 to 1.2589 in.
12270830020
3-S4
