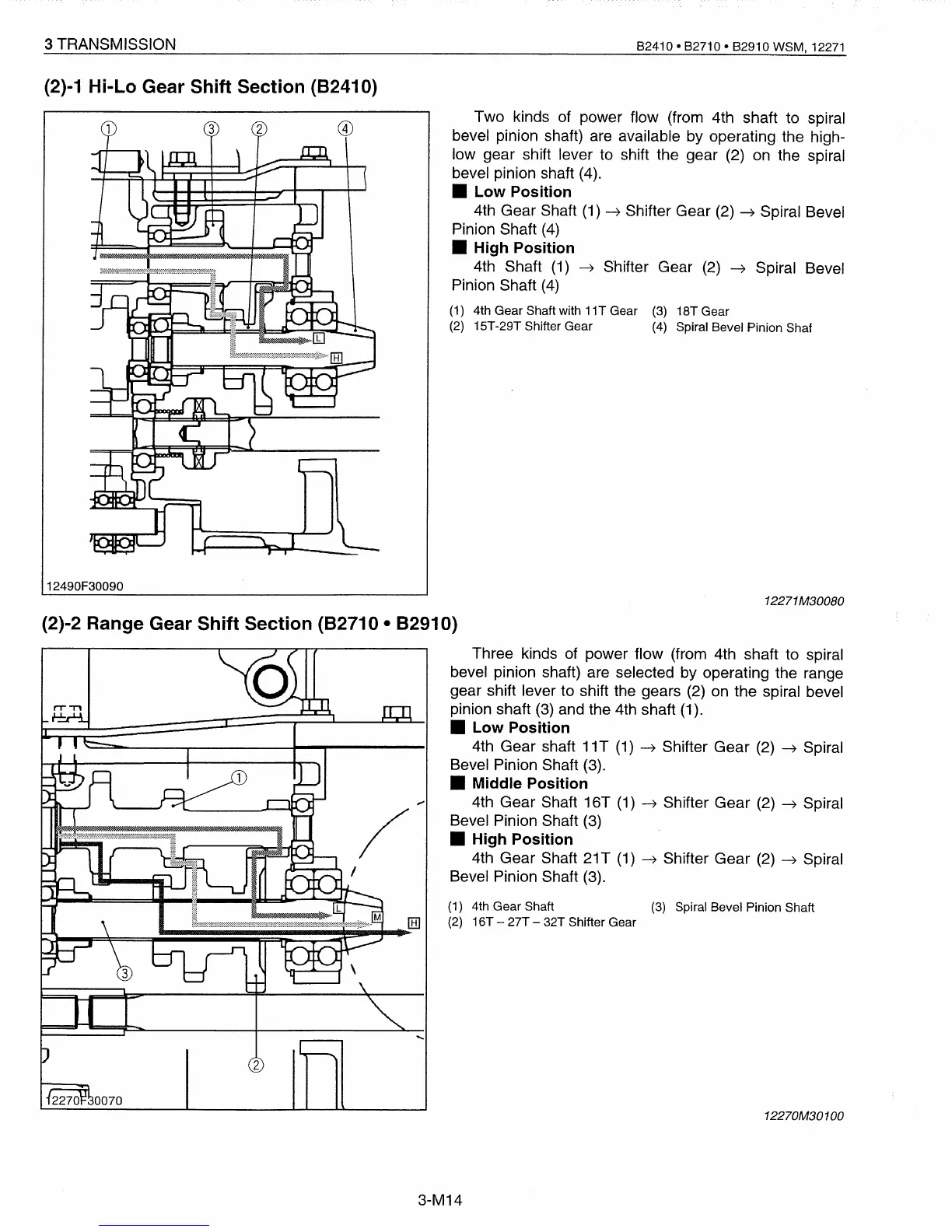

3 TRANSMISSION
B2410 • B271 0 • B2910 WSM, 12271
(2)-1 Hi-Lo Gear Shift Section (82410)
Two kinds of power flow (from 4th shaft to spiral
bevel pinion shaft) are available by operating the high-
low gear shift lever to shift the gear (2) on the spiral
bevel pinion shaft
(4).
• Low Position
4th Gear Shaft (1) ~ Shifter Gear (2) ~ Spiral Bevel
Pinion Shaft
(4)
• High Position
4th Shaft (1) ~ Shifter Gear (2) ~ Spiral Bevel
Pinion Shaft
(4)
(1) 4th Gear Shaft with 11 T Gear (3) 18T Gear
(2) 15T-29T Shifter Gear (4) Spiral Bevel Pinion Shaf
12490F30090
12271M300BO
(2)-2 Range Gear Shift Section (82710 • 82910)
12270M30100
Three kinds of power flow (from 4th shaft to spiral
bevel pinion shaft) are selected by operating the range
gear shift lever to shift the gears (2) on the spiral bevel
pinion shaft (3) and the 4th shaft (1).
• Low Position
4th Gear shaft 11T (1) ~ Shifter Gear (2) ~ Spiral
Bevel Pinion Shaft (3).
• Middle Position
4th Gear Shaft 16T (1) ~ Shifter Gear (2) ~ Spiral
Bevel Pinion Shaft (3)
• High Position
4th Gear Shaft 21T (1) ~ Shifter Gear (2) ~ Spiral
Bevel Pinion Shaft (3).
/
(1) 4th Gear Shaft (3) Spiral Bevel Pinion Shaft
kI._-.=~=jb::5==5a~§1$F=g..J[E] (2) 16T- 27T - 32T Shifter Gear
3-M14
