82410 • 82710 • 82910 WSM, 12271

[1]

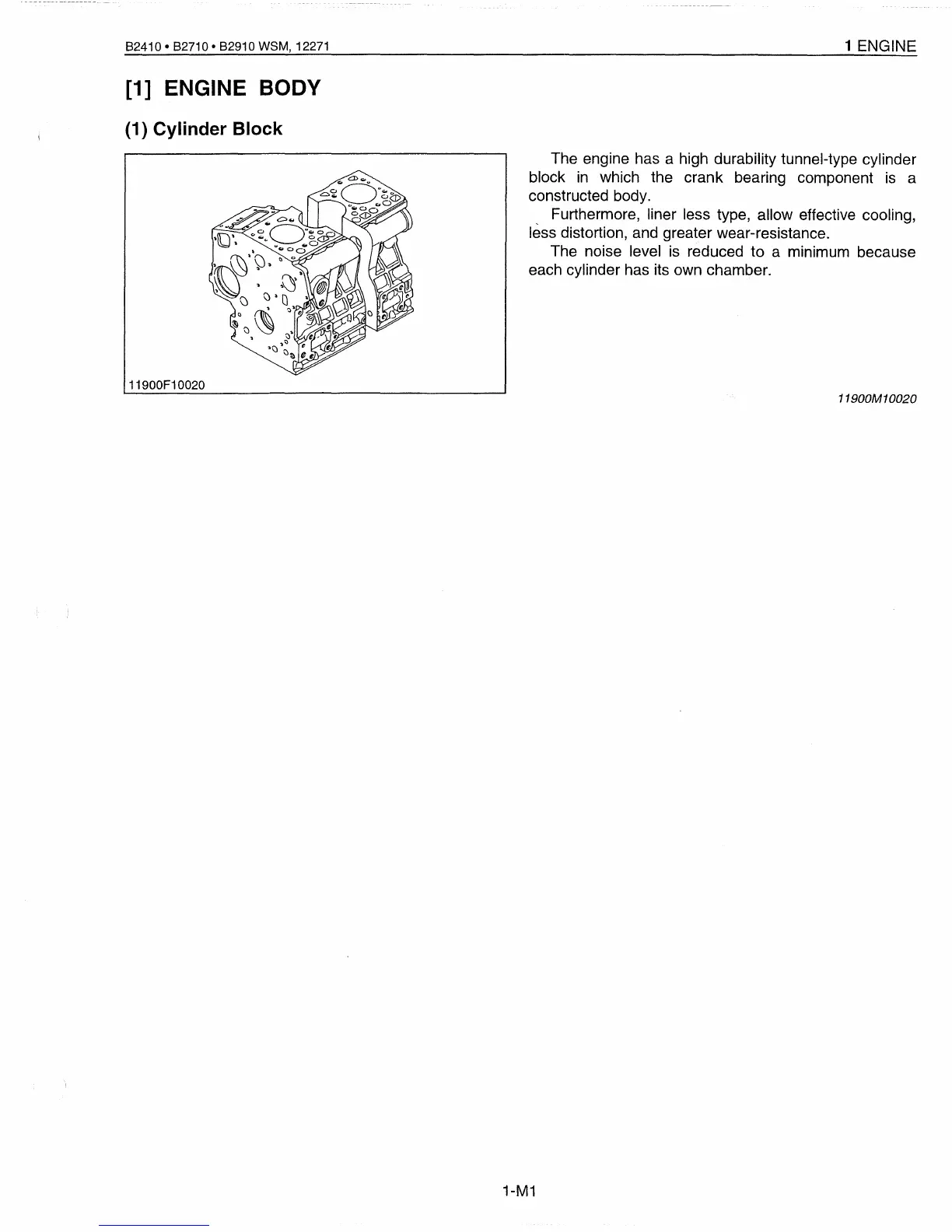

ENGINE BODY

(1) Cylinder Block

11900F10020

1 ENGINE

The engine has a high durability tunnel-type cylinder

block

which the crank bearing component

constructed body.

Furthermore, liner less type, allow effective cooling,

1E3ss

distortion, and greater wear-resistance.

The noise level

reduced

a minimum because

each cylinder has its own chamber.

11900M10020

1-M1
