82410
•
82710
•
82910
WSM, 12271
G GENERAL

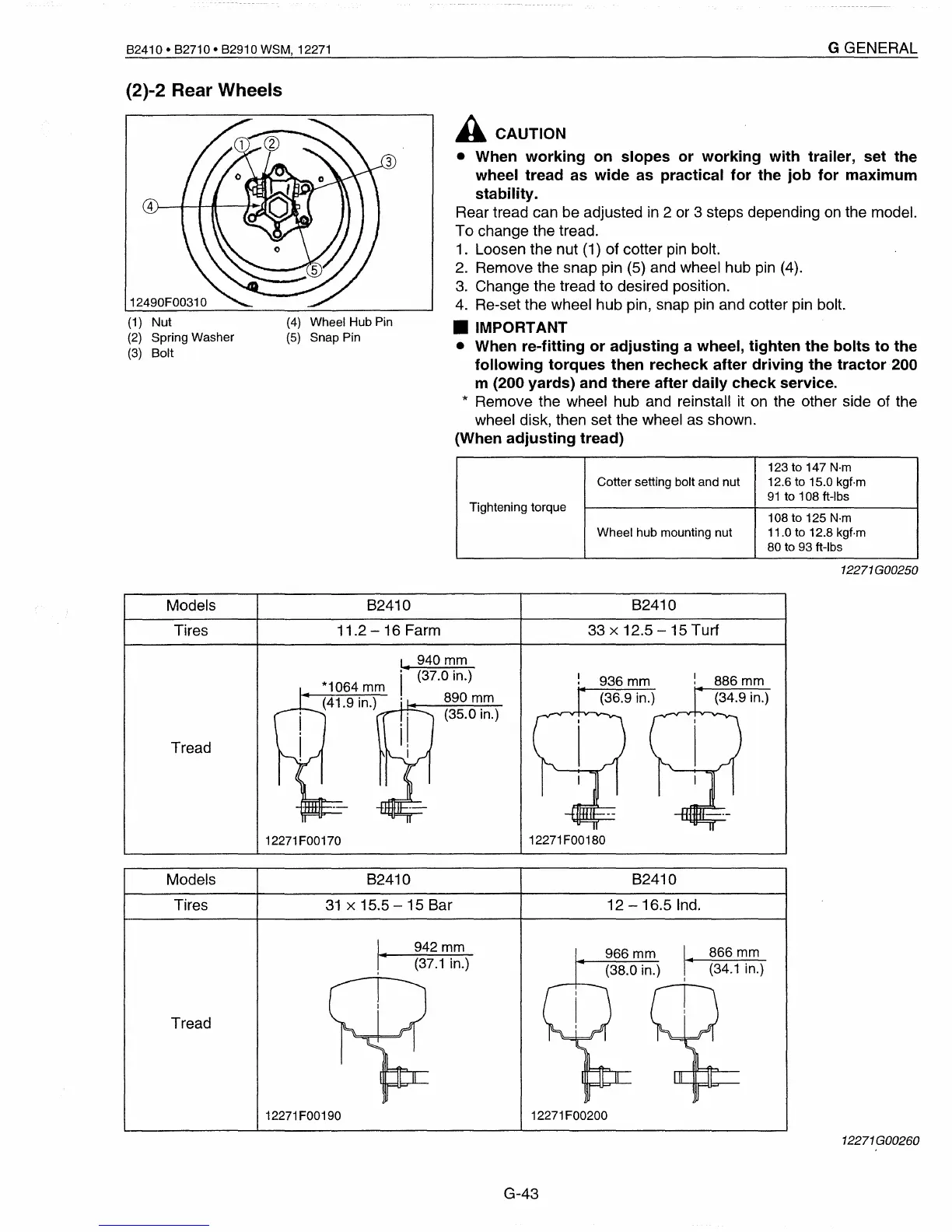

(2)-2 Rear Wheels
12490F00310
(1)
Nut
(2) Spring Washer
(3)
80lt
(4) Wheel Hub Pin
(5) Snap Pin
A CAUTION
• When working on slopes or working with trailer, set the
wheel tread as wide as practical for the job for maximum
stability.
Rear tread can be adjusted
in
2 or 3 steps depending
on
the model.
To change the tread.
1.
Loosen the nut
(1)
of cotter pin bolt.
2. Remove the snap pin (5) and wheel hub pin (4).
3.
Change the tread to desired position.
4.
Re-set the wheel hub pin, snap pin and cotter pin bolt.
• IMPORTANT
• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor 200
m (200 yards) and there after daily check service.
* Remove the wheel hub and reinstall it on the other side of the
wheel disk, then set the wheel as shown.
(When adjusting tread)
123
to
147 N·m
Cotter setting bolt and
nut
12.6 to 15.0 kgf·m
91
to 108 ft-Ibs
Tightening torque
108
to
125 N·m
Wheel hub mounting nut 11.0 to 12.8 kgf·m
80 to
93
ft-Ibs
12271G00250
Models 82410
82410
Tires
11.2 - 16 Farm
33
X 12.5
-15
Turf
I 940 mm
,"
I (37.0 in.)
. 890 mm
,i (35.0 in.)
I,
I
Tread
12271F00170
12271F00180
Models
82410 82410
Tires
31
x 15.5 - 15
8ar
12
-16.5
Ind.
Tread
942mm
(37.1 in.)
I
866 mm
" (34.1
in.)
,
12271F00190 12271 F00200
12271G00260
G-43
