7 STEERING
82410
• 82710 • 82910 WSM, 12271
•

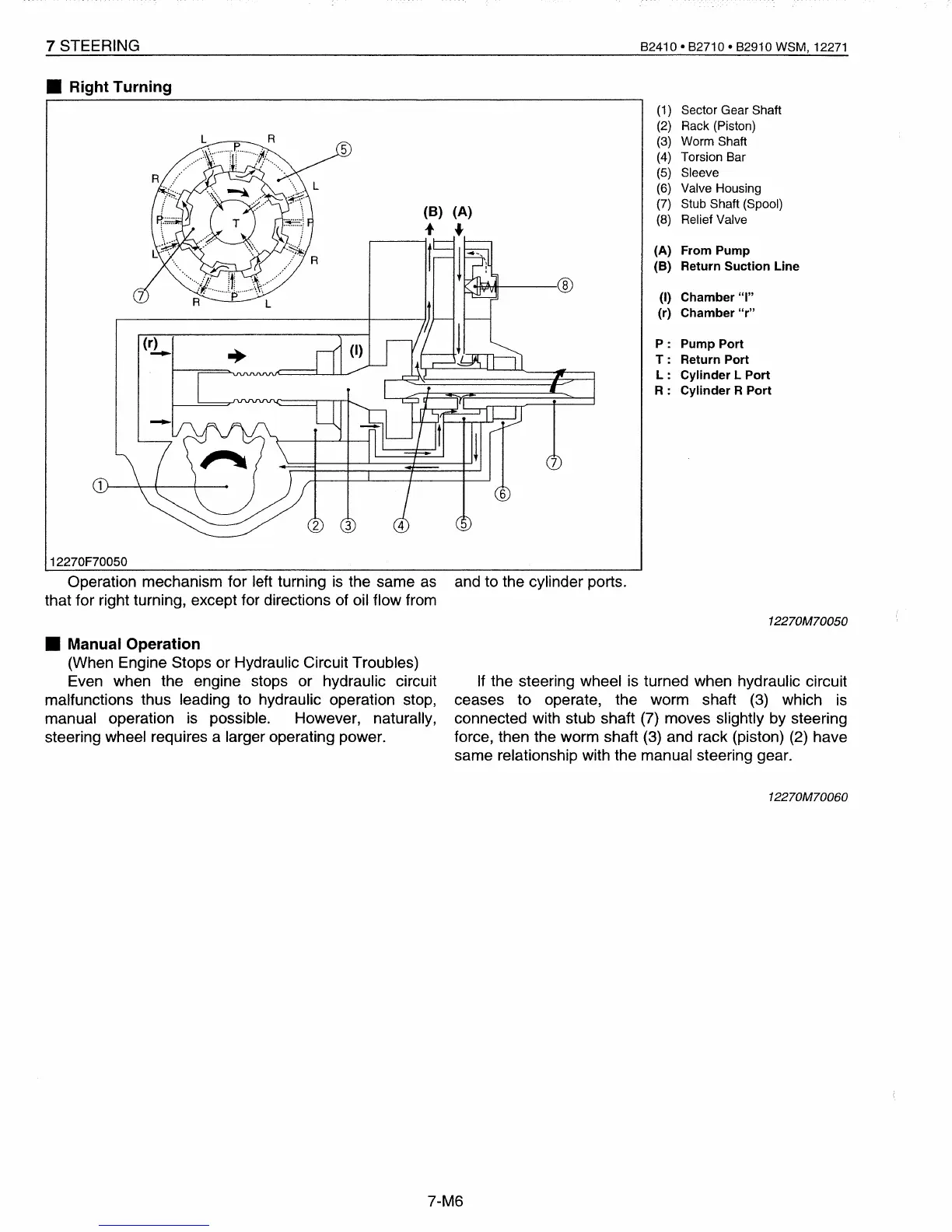

Right
Turning
(1
) Sector Gear Shaft
(2) Rack (Piston)
(3) Worm Shaft
(4)
Torsion
8ar
(5) Sleeve
(6) Valve Housing
(B) (A)
(7)
Stub Shaft (Spool)
-t
•
(8)
Relief Valve
1
(A) From Pump
(B) Return
Suction
Line
®
(I) Chamber
"I"
(r) Chamber
"r"
(r)
P:
Pump
Port
......
T:
Return Port
L:
Cylinder
L
Port
R:
Cylinder
R
Port
12270F70050
Operation mechanism for left turning
is
the same
as
and to the cylinder ports.
that for right turning, except for directions of oil flow from
12270M700S0
•
Manual
Operation
(When Engine Stops or Hydraulic Circuit Troubles)
Even when the engine stops or hydraulic circuit
malfunctions thus leading to hydraulic operation stop,
manual operation is possible. However, naturally,
steering wheel requires a larger operating power.
If the steering wheel is turned when hydraulic circuit
ceases
to
operate, the worm shaft (3) which
is
connected with stub shaft (7) moves slightly by steering
force, then the worm shaft (3) and rack (piston) (2) have
same relationship with the manual steering gear.
12270M70060
7-M6
