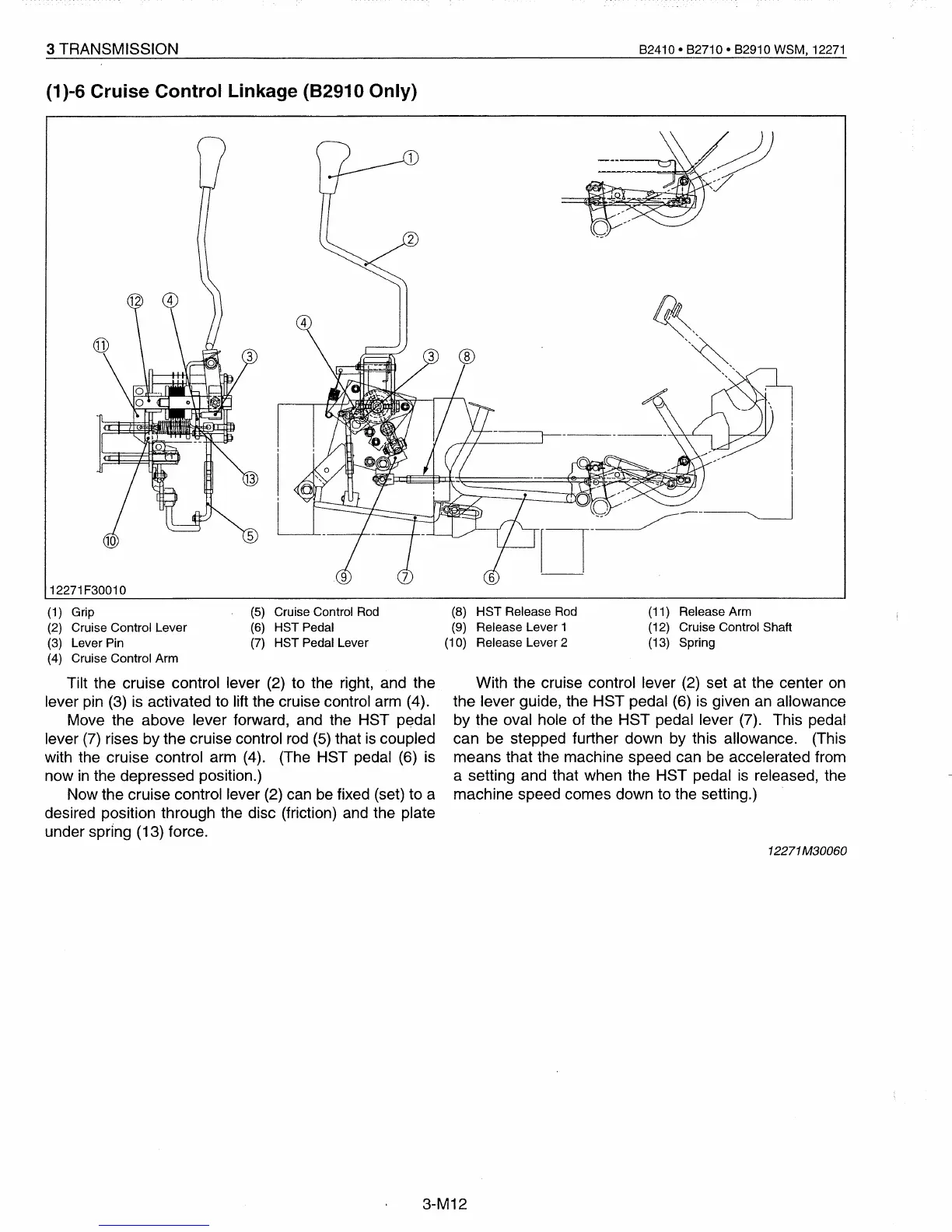

3 TRANSMISSION
(1
)-6 Cruise Control Linkage (B2910 Only)
82410·
82710·
82910 WSM, 12271
(5) Cruise Control
Rod
(6)
HST Pedal
(7)
HST Pedal Lever
With the cruise control lever
(2)
set at the center
on
the lever guide, the HST pedal
(6)
is
given
an
allowance
by the oval hole of the HST pedal lever (7). This pedal
can
be
stepped further down by this allowance. (This
means that the machine speed can be accelerated from
a setting and that when the HST pedal
is
released, the
machine speed comes down to the setting.)
12271 F3001 0
(1) Grip
(2)
Cruise Control Lever
(3)
Lever Pin
(4) Cruise Control Arm
Tilt the cruise control lever
(2)
to the right, and the
lever pin (3) is activated to lift the cruise control arm (4).
Move the above lever forward, and the HST
p~dal
lever
(7)
rises by the cruise control
rod
(5)
that
is
coupled
with the cruise control arm
(4).
(The HST pedal (6)
is
now
in
the depressed position.)
Now the cruise control lever
(2)
can
be
fixed (set) to a
desired position through the disc (friction) and the plate
under spring (13) force.
(8) HST Release
Rod
(9) Release Lever 1
(10) Release Lever 2
(11) Release Arm
(12) Cruise Control Shaft
(13) Spring
12271
M30060
3-M12
To Next Page
