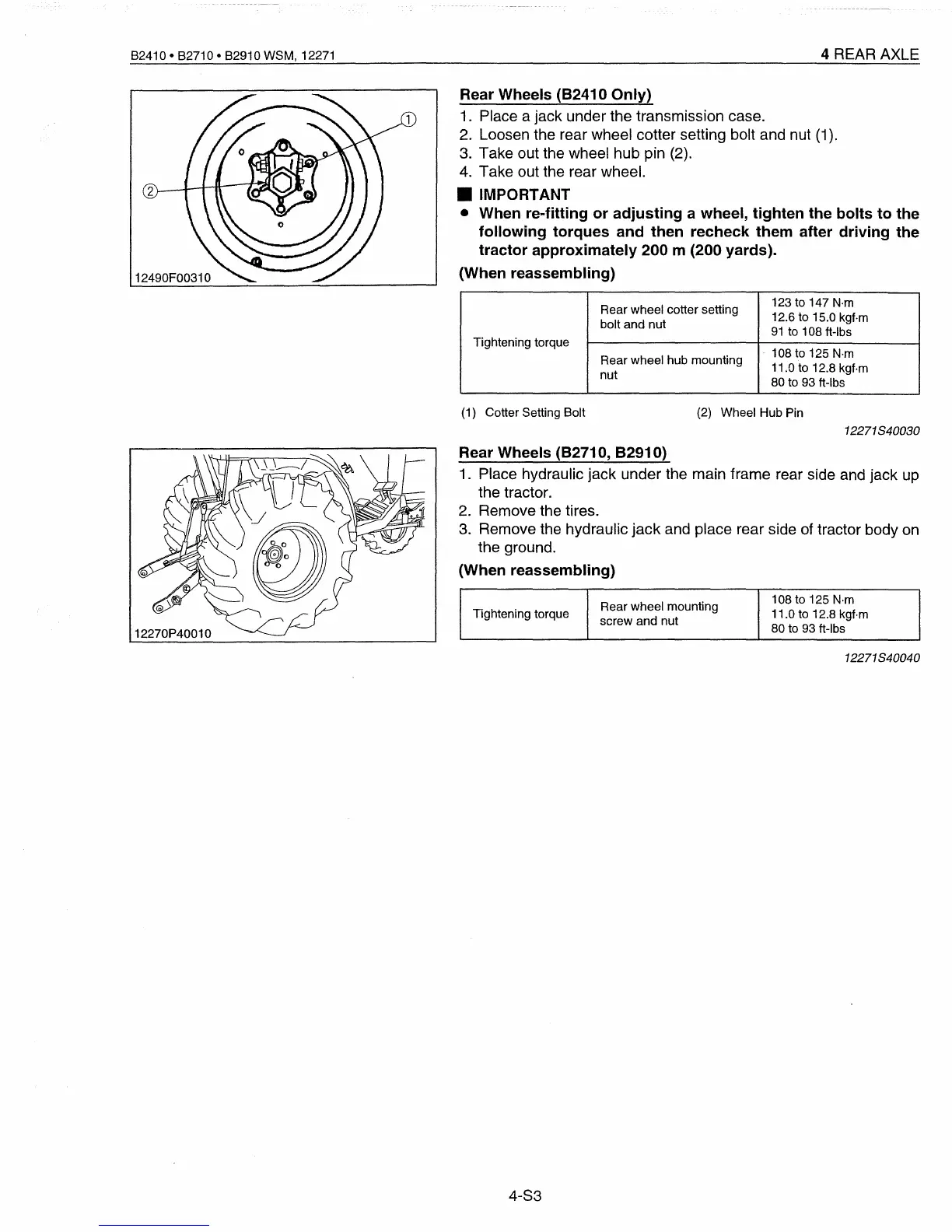

Kubota B2910 - Rear Wheels (82410 Only); Rear Wheels (82710, 82910)

B2410 • B2710 • B2910 WSM, 12271
12490F00310
4 REAR AXLE
Rear Wheels (82410 Only)
1. Place a jack under the transmission case.
2. Loosen the rear wheel cotter setting bolt and nut (1).
3. Take out the wheel hub pin (2).
4. Take out the rear wheel.
• IMPORTANT
• When
re-fitting or adjusting a wheel, tighten the bolts to the
following torques and then recheck them after driving the
tractor approximately 200 m (200 yards).
(When reassembling)
Rear wheel cotter setting
123 to 147
N·m
12.6 to 15.0 kgf·m
bolt and nut
91 to 108 ft-Ibs
Tightening torque
108 to 125 N·m
Rear wheel hub mounting
11.0 to 12.8 kgf·m
nut
80 to 93 ft-Ibs
(1) Cotter Setting Bolt (2) Wheel Hub Pin
12271840030
12270P40010
Rear Wheels (82710, 82910)
1. Place hydraulic jack under the main frame rear side and jack up
the tractor.
2. Remove the tires.
3. Remove the hydraulic jack and place rear side of tractor body on
the ground.
(When reassembling)
Rear wheel mounting
108 to 125
N·m
Tightening torque
11.0 to 12.8 kgf·m
screw and nut
80 to 93 ft-Ibs
12271840040
4-83
