Configure System Information
110
M4100 Series Managed Switch
Configure the ISDP Interface
 To configure the ISDP Interface:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select System

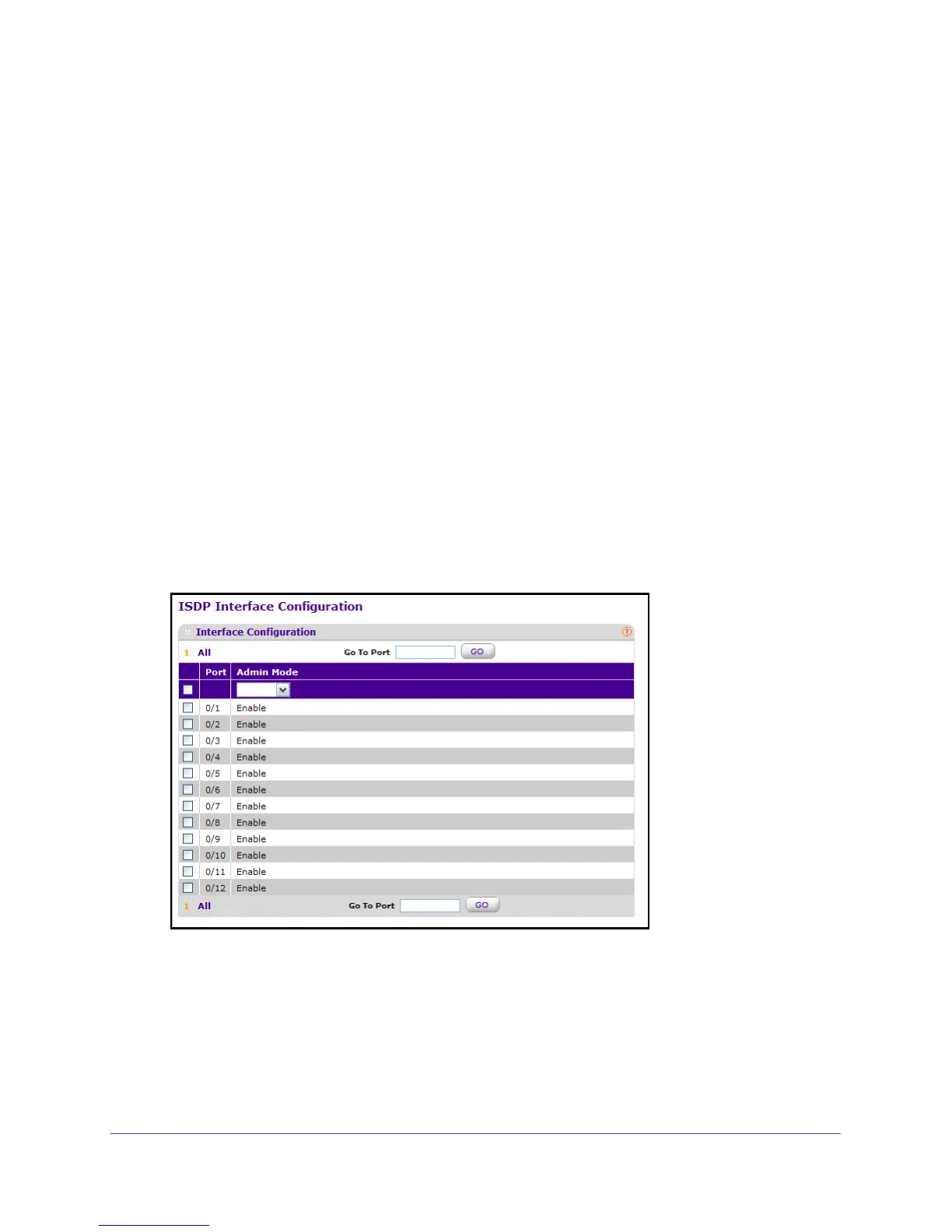

 ISDP  Advanced  Interface Configuration.
8. Select the check box for the port on which the admin mode is configured.
9. In the Admin Mode list, select Enable or Disable.
The default value is Enable.
10. Click the APPL
Y button.
Your settings are saved.
