NETGEAR M4100 Series User Manual

Manage Device Security
303
M4100 Series Managed Switch
The default value is Disable. The feature monitors the dot1x authentication process and
helps in diagnosis of the authentication failure cases.
12. In the Users list, select the user name that uses the selected login list for 802.1x port
security.
13. In the Login list, select the login list to apply to the specified user
. All configured login lists
are displayed.
Configure 802.1X Settings for Port Authentication
You can enable and configure port access control on one or more ports.
 To configure 802.1X settings for the port:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

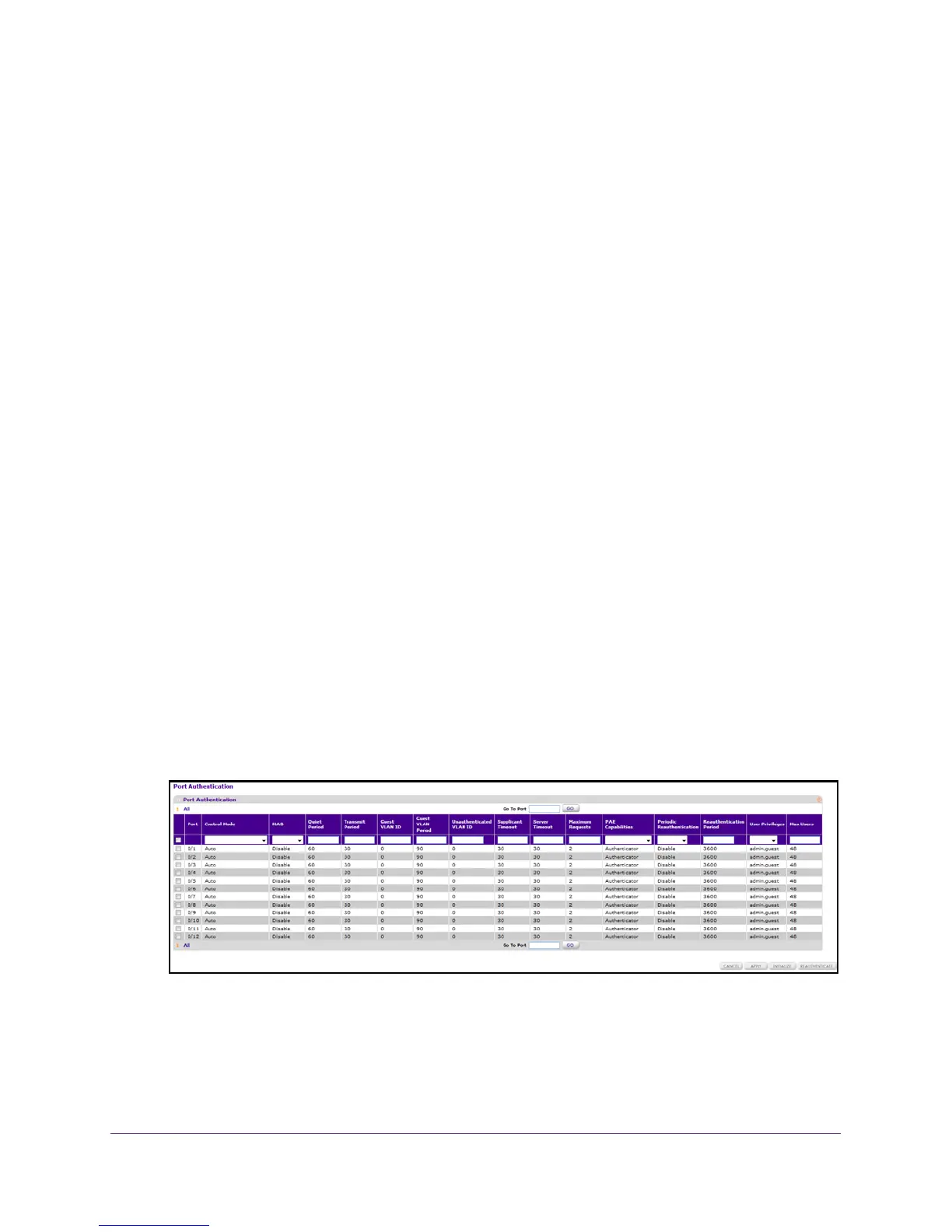

7. Select Security
 Port Authentication > Advanced  Port Authentication.
Note: Use the horizontal scroll bar at the bottom of the screen to view all the
fields on the Port Authentication screen.
8. Select the check box next to the port to configure.
