Monitoring the System
382
M4100 Series Managed Switch
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

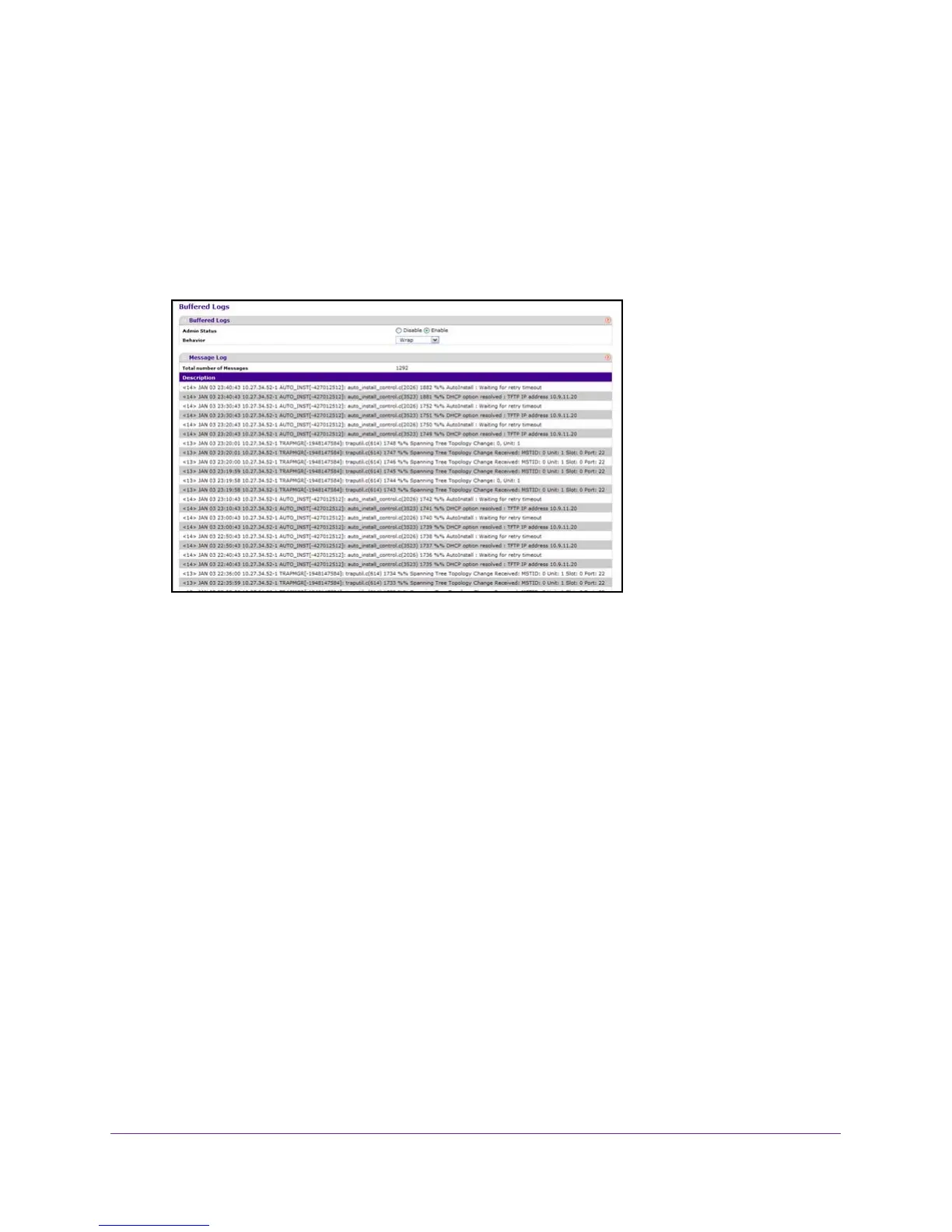

7. Select Monitoring
 Logs > Buffered Logs.
A log that is disabled does not log messages.
8. T
o enable or disable a log, select the Disable or Enable radio button.
Behavior Indicates the behavior of the log when it is full. It can either wrap around or stop
when the log space is filled.
9. T
o refresh the screen to show the latest messages in the log, click the REFRESH button.
10. T
o clear the buffered log in the memory, click the CLEAR button.
Message Format in Logs
This topic applies to the format of all logged messages that are displayed for the message
log, persistent log, or console log.
Messages logged to a collector or relay through syslog use an identical format of either type:
If system is not stacked
<15>Aug 24 05:34:05 STK0 MSTP[2110]: mspt_api.c(318) 237 %% Interface 12
transitioned to root state on message age timer expiry
.
This example indicates a message with severity 7 (15 mod 8) (debug) on a system that is
not stacked and generated by component MSTP running in thread ID 2110 on Aug 24
05:34:05 by line 318 of file mstp_api.c. This is the 237th message logged.
