NETGEAR M4100 Series User Manual

Monitoring the System
397
M4100 Series Managed Switch
• Tx and Rx — Specify VLAN as the source VLAN.
• None — Remove the specified source VLAN.
If the VLAN is configured as the source VLAN, its direction is displayed as a blank
field.
Configure the RSPAN Destination Switch
 To configure the RSPAN destination switch:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

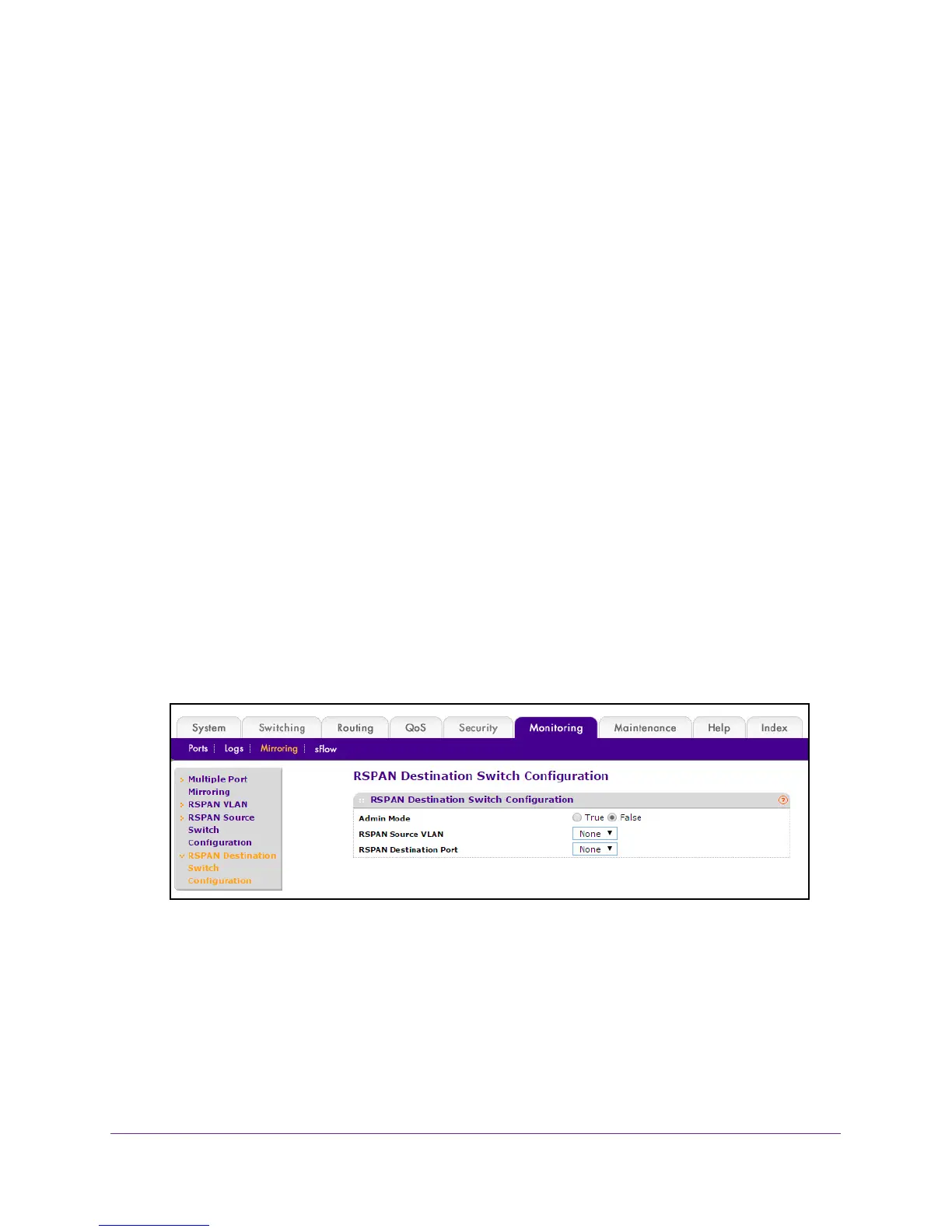

7. Select Monitoring > Mirroring > RSP
AN Destination Switch Configuration.
8. Select the Admin Mode True (enabled) or False (disabled) for the selected session.
When a particular session is enabled, any traffic entering or leaving the source ports of
the session is copied (mirrored) onto the corresponding destination port or a remote
switched port analyzer (RSP
AN) VLAN. By default, the Admin Mode is disabled.
9. Select the RSP
AN Source VLAN from the list of available VLAN IDs.
10. Select the RSP
AN Destination Port from the list of destination interfaces.
11. Click the APPL
Y button.
