NETGEAR M4100 Series User Manual

Configure Switching Information
135
M4100 Series Managed Switch
Configure Port DVLAN
 To configure port DVLAN:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Switching

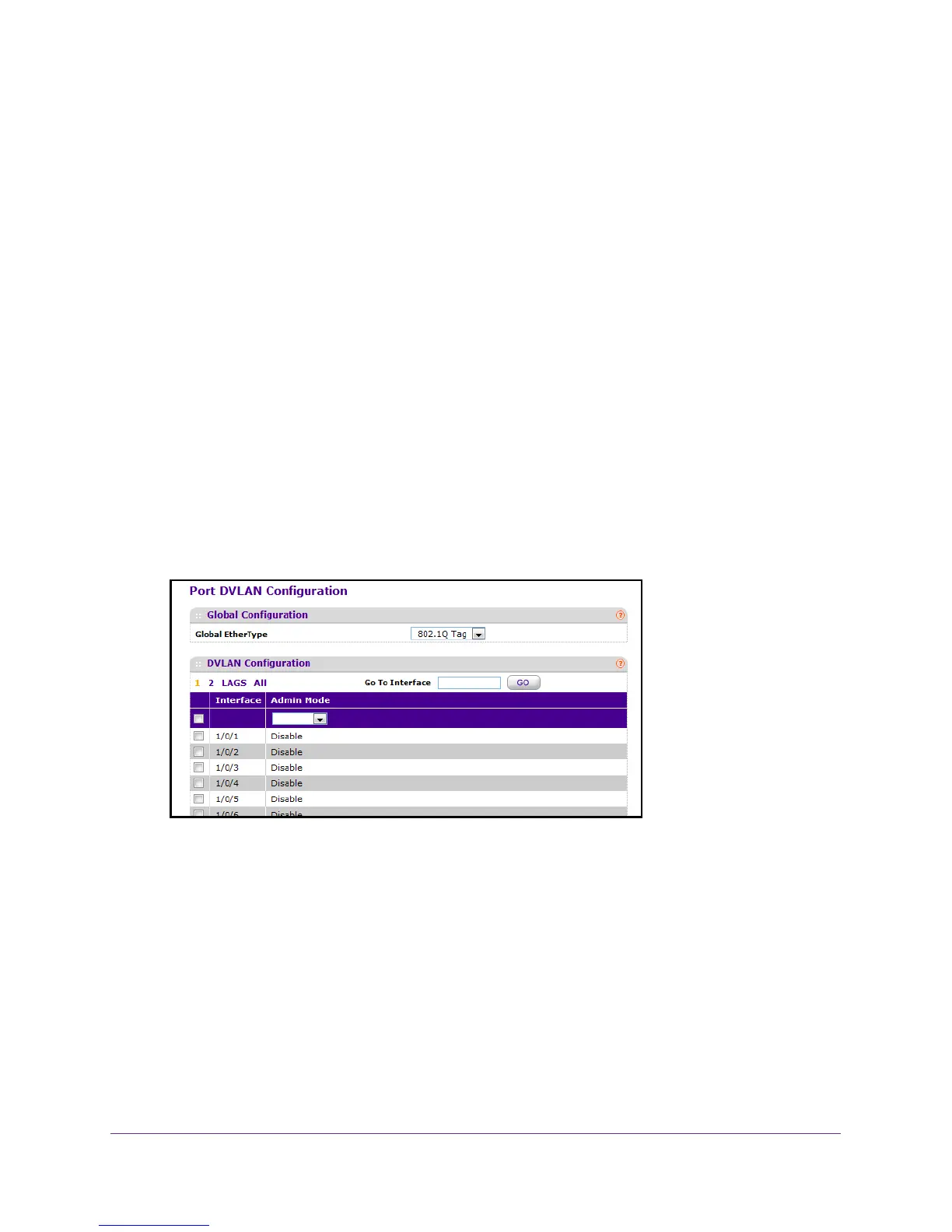

 VLAN  Advanced  Port DVLAN Configuration.
8. Use Interface to select the physical interface.
Select All to set the parameters for all ports to same values.
9. Select the
Administrative Mode Disable or Enable radio button.
The default value is Disable.
10. Use the 2-byte hex Global EtherT
ype as the first 16 bits of the DVlan tag.
• 802.1Q T
ag. Commonly used tag representing 0x8100
• vMAN T
ag. Commonly used tag representing 0x88A8
• Custom T
ag. Configure the EtherType in any range from 0 to 65535
