NETGEAR M4100 Series User Manual

Routing
227
M4100 Series Managed Switch
information seen on the network, periodically refreshed to determine if an address still exists,
or removed from the cache if the entry has not been identified as a sender of an ARP packet
during the course of an ageout interval, usually specified through configuration.

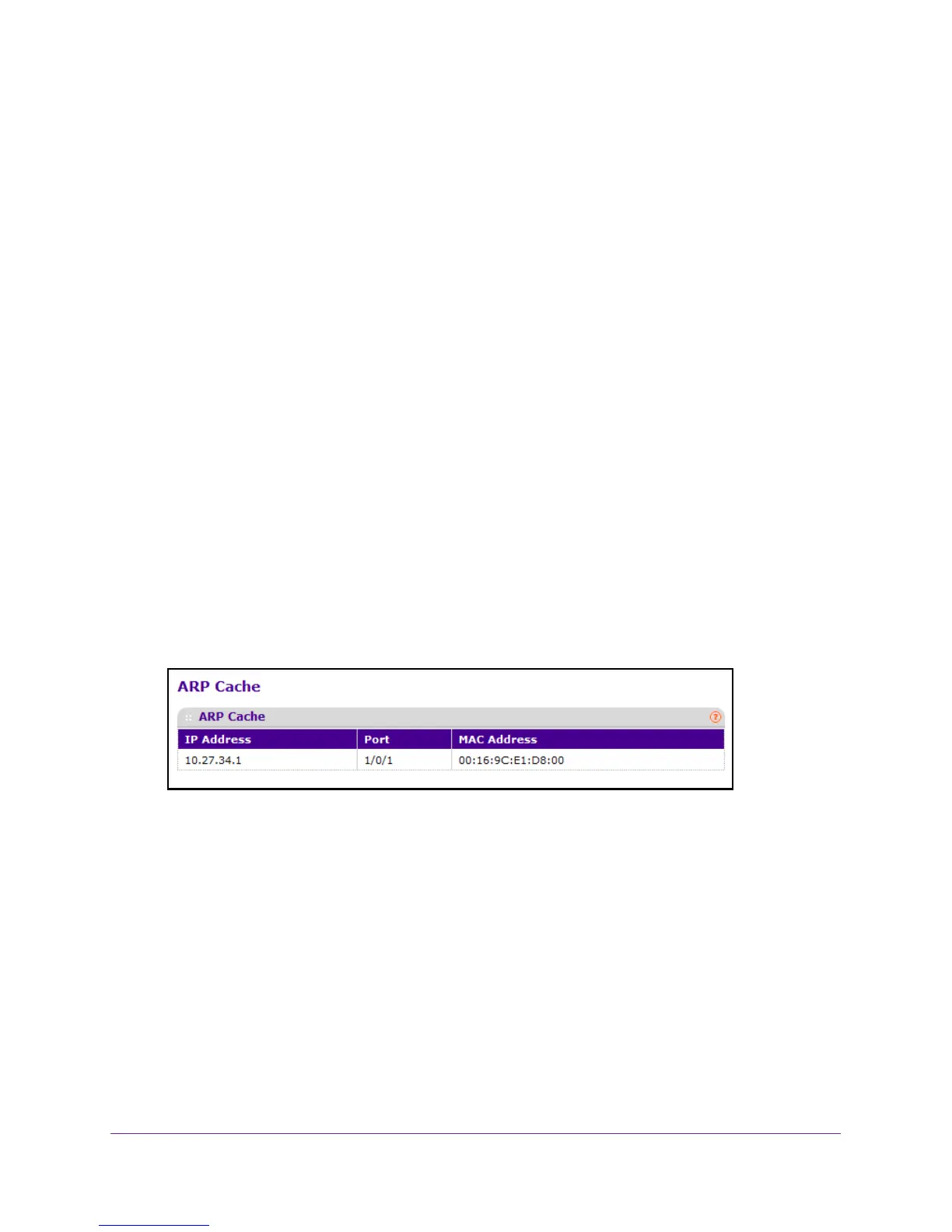

Display ARP Cache Entries
 To display the ARP cache entries:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Routing
 ARP Basic  ARP Cache.
8. Use Port to select the associated Unit/Slot/Port of the connection.
9. IP Address displays the IP address.
It must be the IP address of a device on a subnet attached to one of the switch's existing
routing interfaces.
10. MAC Address displays the unicast MAC address of the device.
The address is six two-digit hexadecimal numbers separated by colons, for example
00:06:29:32:81:40.
11. Click the REFRESH button to show the latest IP information.
