Manage Device Security
325
M4100 Series Managed Switch
6. Click the Login button.
The web management interface menu displays.

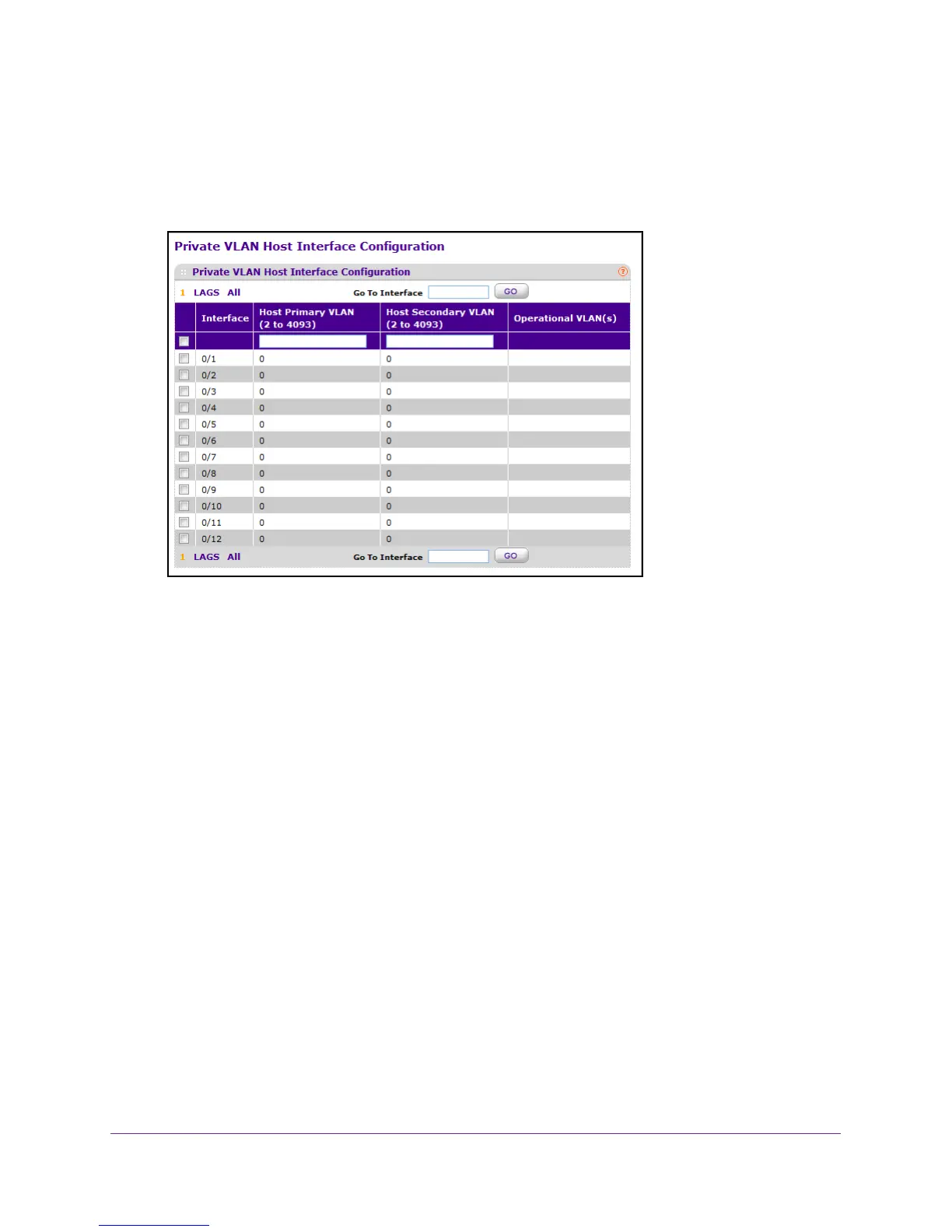

7. Select Security
 Traffic Control > Private VLAN > Private VLAN Host Interface
Configuration.
The Interface field displays the selected physical or LAG interface.
The Operational VLANs fields display the operational VLANs.
8. Use Host Primary VLAN to set the primary VLAN ID for Host
Association mode.
The range of the VLAN ID is 2–4093.
9. Use Host Secondary VLAN to set the secondary VLAN ID for Host
Association mode.
The range of the VLAN ID is 2–4093.
10. T
o delete the IP subnet-based VLAN from the switch, click the DELETE button.
11. Click the APPL
Y button.
The changes are applied to the system. Configuration changes take effect immediately.
Configure Private VLAN Promiscuous Interface Settings
 To configure private VLAN promiscuous interface settings:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
