NETGEAR M4100 Series User Manual

Configure Switching Information
134
M4100 Series Managed Switch
Configure an IP Subnet–Based VLAN
IP Subnet to VLAN mapping is defined by configuring an entry in the IP Subnet to VLAN
table. An entry is specified through a source IP address, network mask, and the desired
VLAN ID. The IP subnet to VLAN configurations are shared across all ports of the device.
 To configure an IP subnet–based VLAN:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

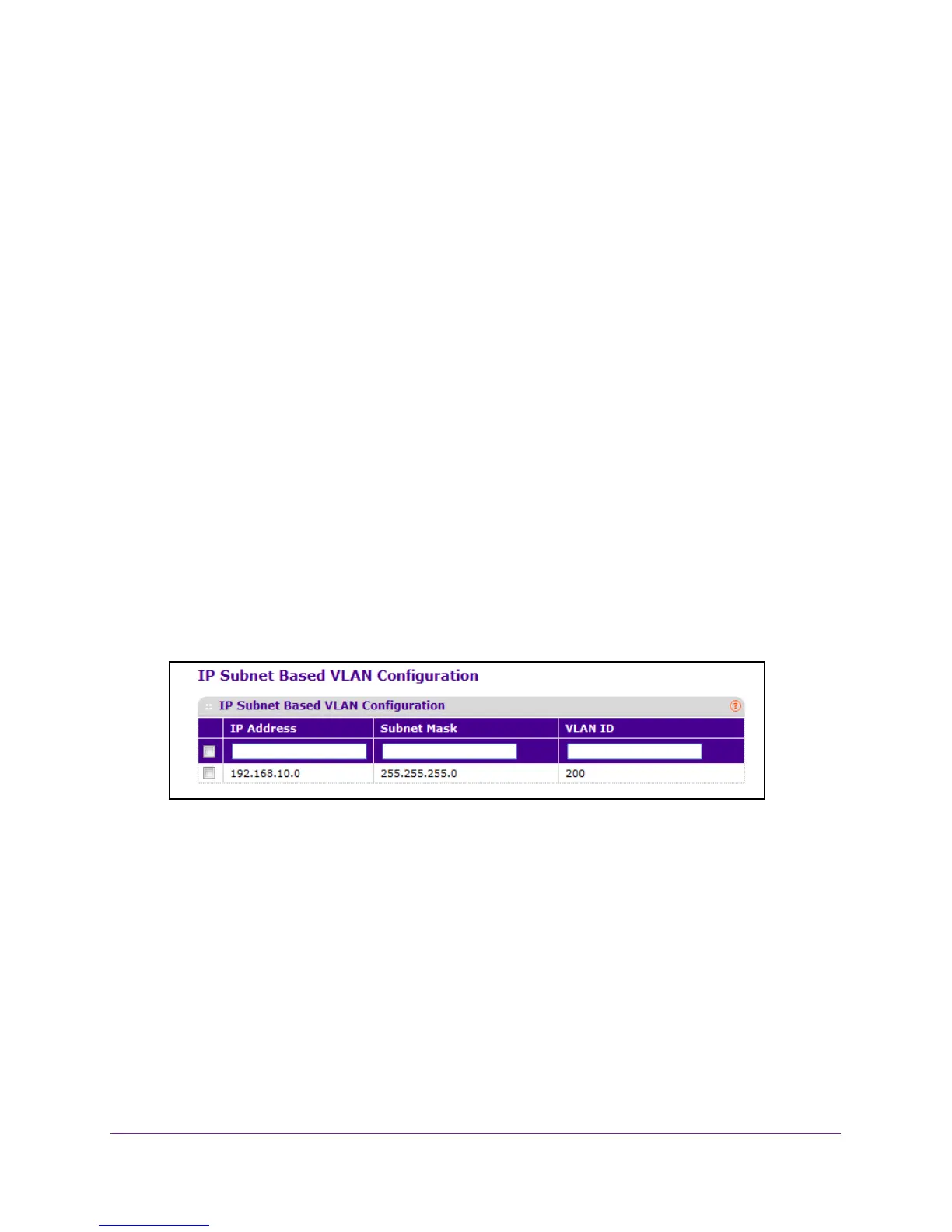

7. Select Switching
 VLAN  Advanced  IP Subnet Based VLAN.
8. Use IP Address to specify a valid IP address bound to the VLAN ID.
Enter the IP address in dotted decimal notation.
9. Use Subnet Mask to specify a valid subnet mask of the IP address.
Enter the subnet mask in dotted decimal notation.
10. Use VLAN ID to specify a VLAN ID in the range of (1 to 4093).
11. T
o add a new IP subnet–based VLAN, click the ADD button.
12. T
o delete the IP subnet–based VLAN selected, click the DELETE button.
