Configure Switching Information
183
M4100 Series Managed Switch
The web management interface menu displays.

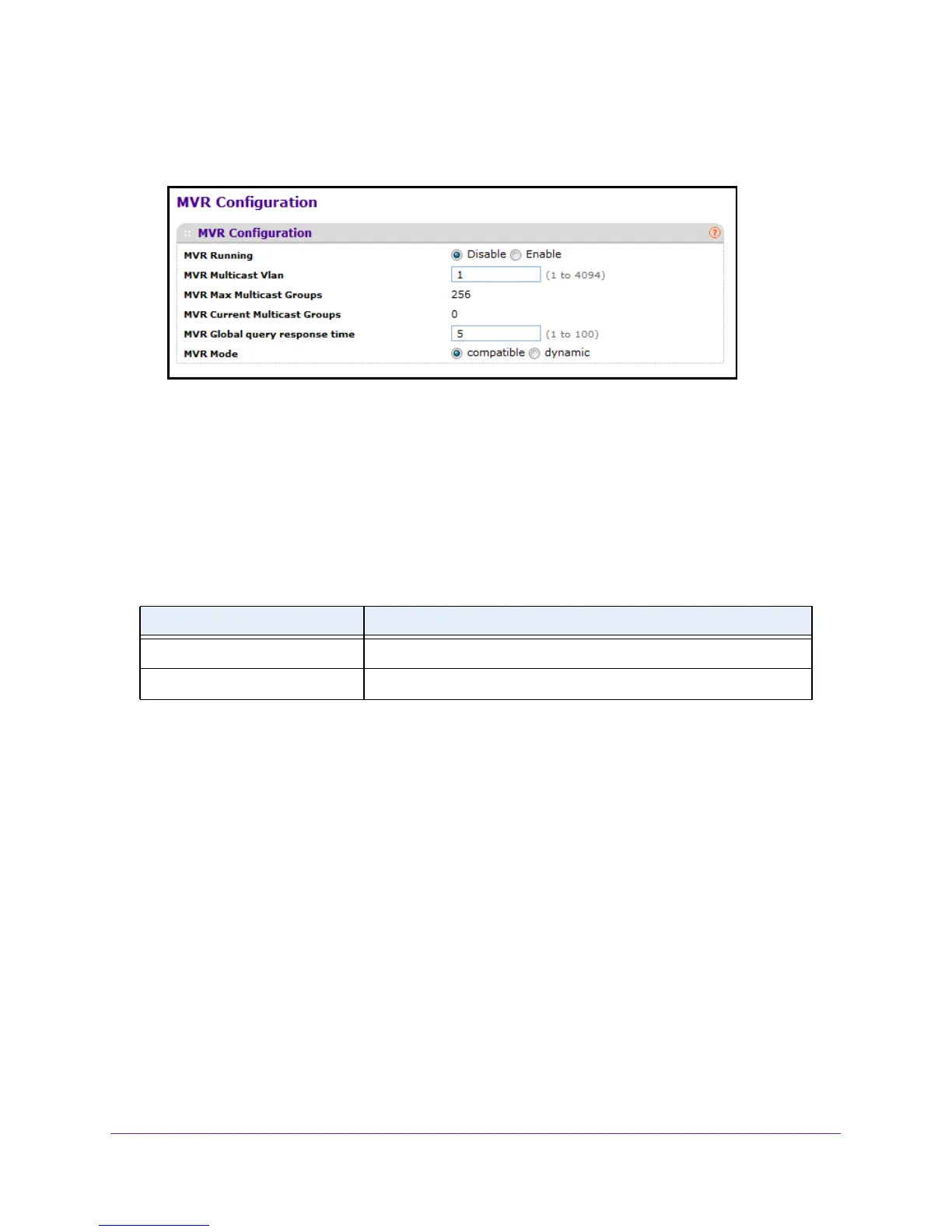

7. Select Switching > MVR > Basic > MVR Configuration.
8. Select the MVR Running Enable or Disable radio button.
The factory default is Disable.
9. In the MVR multicast field, specify the VLAN on which MVR multicast data is received.
All source ports belong to this VLAN. The value can be set in a range of 1 to 4093. The
default value is 1.
The following table describes the nonconfigurable information displayed on the screen.
Table 56. MVR Configuration
Field Definition
MVR Max Multicast Groups Displays the maximum number of multicast groups that MVR supports.
MVR Current Multicast Groups Displays current number of the MVR groups allocated.
10. In the MVR Global query response time field, set the maximum time to wait for the IGMP
reports membership on a receiver port.
This time applies only to receiver-port leave processing. When an IGMP query is sent
from a receiver port, the switch waits for the default or configured MVR query time for an
IGMP group membership report before removing the port from the multicast group
membership.
The value is equal to the tenths of a second. The range is from 1 to 100
tenths. The factory default is 5 tenths or one-half.
11. Select MVR Mode Compatible or Dynamic radio button.
This specifies the MVR mode of operation. The factory default is Compatible.
Configure Advanced MVR Settings
 To configure advanced MVR settings:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
