NETGEAR M4100 Series User Manual

Configure System Information
92
M4100 Series Managed Switch

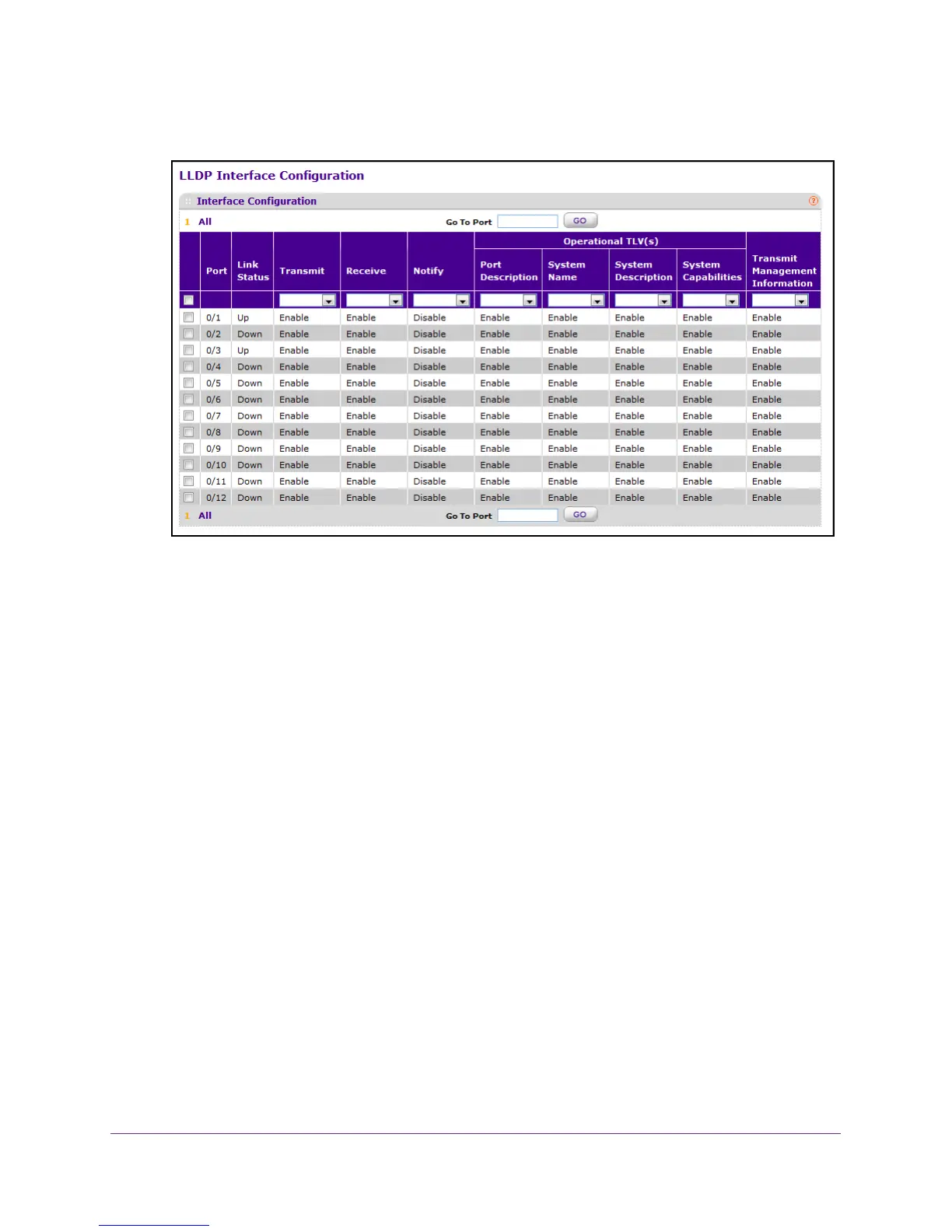

7. Select System  LLDP  Interface Configuration.
8. Use Go To Port to enter the Port in unit/slot/port format and click the Go button.
The entry corresponding to the specified port is selected.
9. Use Port to specify the list of ports on which LLDP - 802.1AB can be configured.
10. Link Status indicates whether the Link is up or down.
11. Use T
ransmit to specify the LLDP - 802.1AB transmit mode for the selected interface.
12. Use Receive to specify the LLDP - 802.1AB receive mode for the selected interface.
13. Use Notify to specify the LLDP - 802.1AB notification mode for the selected interface.
14. Specify optional
TLVs:
• Use Port Description to include the port description
TLV in LLDP frames.
• Use System Name to include the system name
TLV in LLDP frames.
• Use System Description to include the system description
TLV in LLDP frames.
• Use System Capabilities to include the system capability
TLV in LLDP frames.
15. Use T
ransmit Management Information to specify whether the management address is
transmitted in LLDP frames for the selected interface.
View LLDP Statistics
 To view LLDP statistics:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
