NETGEAR M4100 Series User Manual

Routing
228
M4100 Series Managed Switch

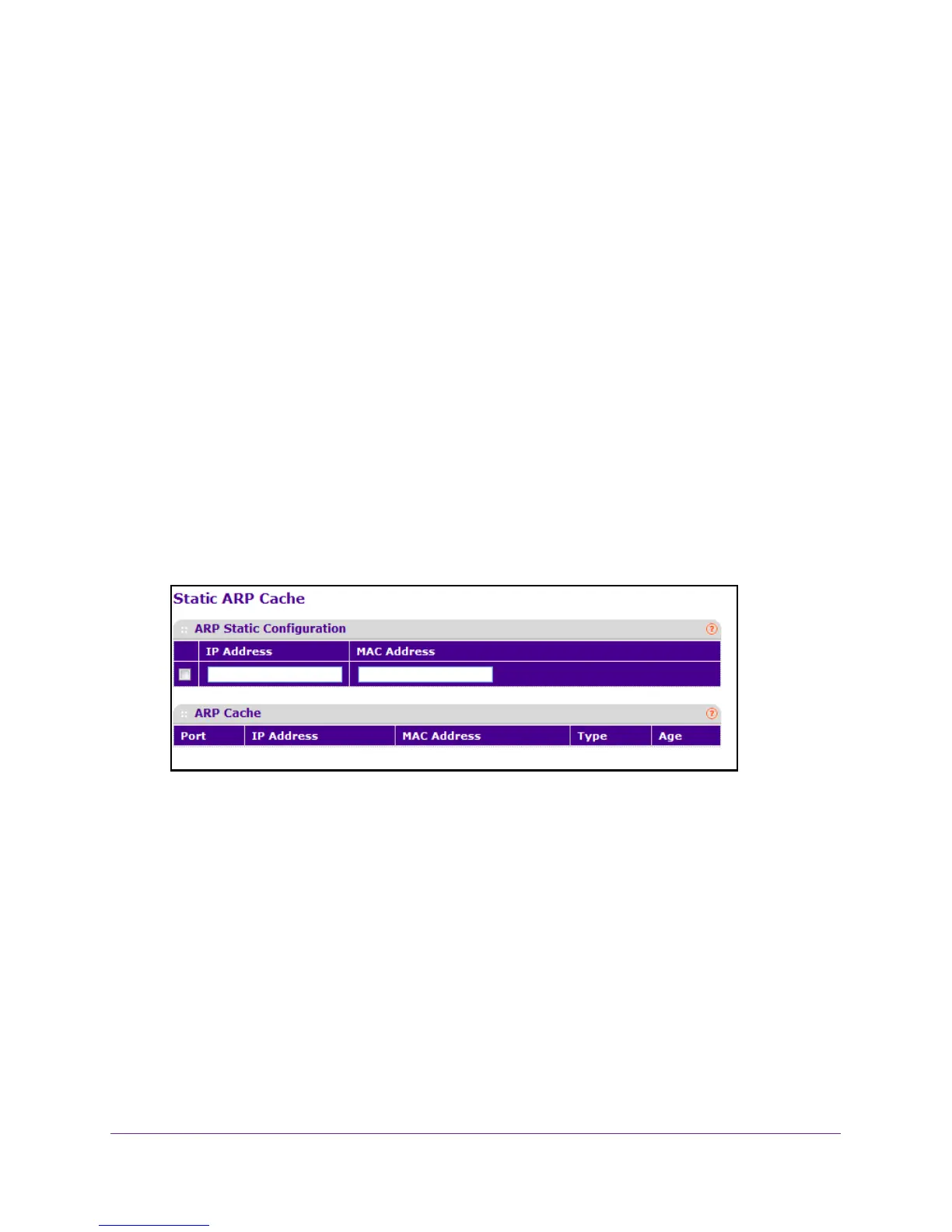

Configure the Static ARP Cache
 To configure the static ARP cache:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Routing
 ARP Advanced  ARP Create.
8. Add an entry to the Address Resolution Protocol table.
a. Use IP Address to enter the IP address. It must be the IP address of a device on a
subnet attached to one of the switch's existing routing interfaces.
b. Use MAC Address to specify the unicast MAC address of the device. Enter the
address as six two-digit hexadecimal numbers separated by colons, for example
00:06:29:32:81:40.
9. T
o add a new static ARP entry to the switch, click the ADD button.
10. T
o delete an existing static ARP entry from the switch, click the DELETE button.
11. Click the APPL
Y button.
The MAC address mapping to the IP is updated. Configuration changes take effect
immediately
.
Click the REFRESH button to show the latest IP information.
