NETGEAR M4100 Series User Manual

Configure System Information
99
M4100 Series Managed Switch
Configure LLDP-MED Global Settings
You can specify LLDP-MED parameters that are applied to the switch.
 To configure LLDP-MED global settings:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

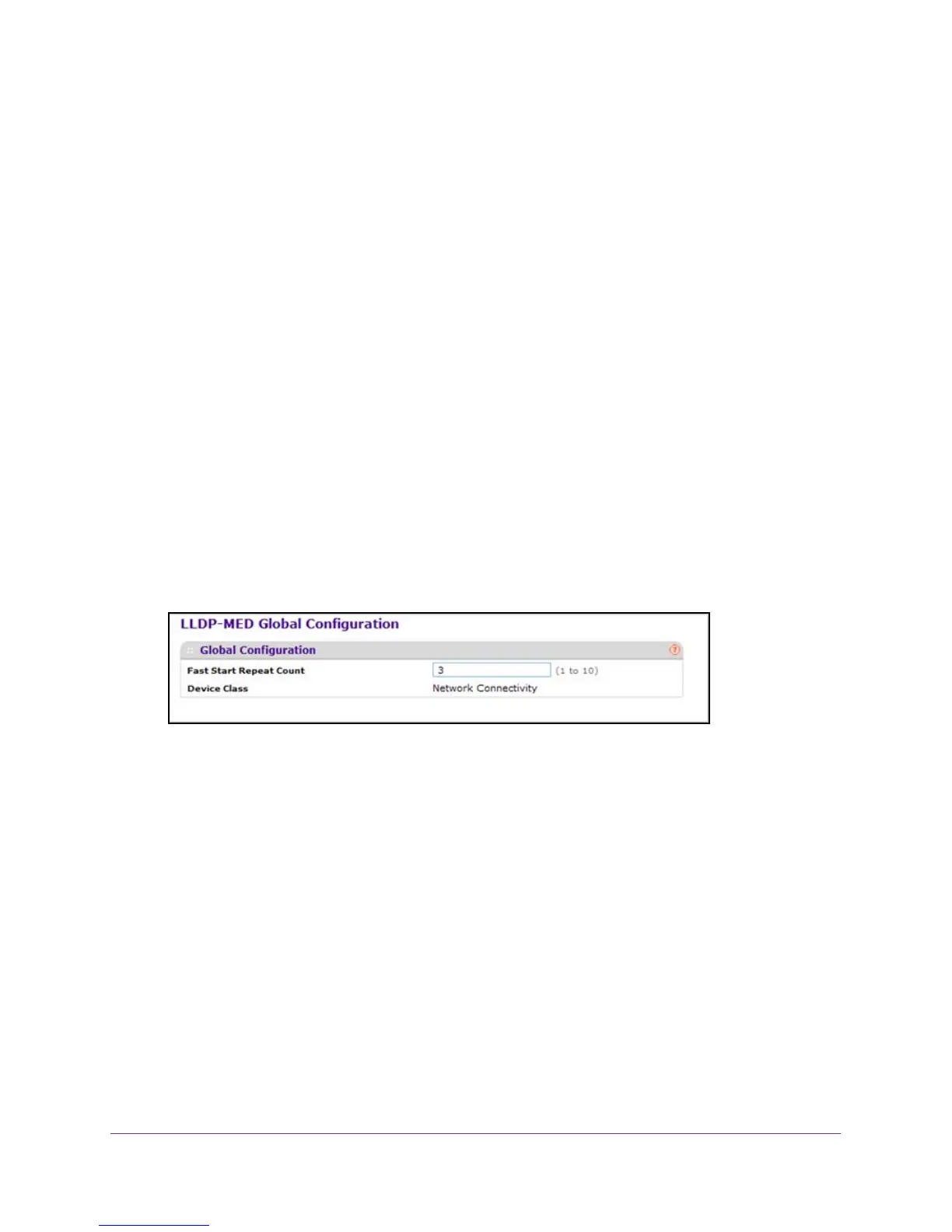

7. Select System
 LLDP  LLDP-MED  Global Configuration.
The Device Class field displays the local device’s MED classification. There are four
different kinds of devices; three of them represent the actual end points (classified as
Class I Generic [IP Communication Controller and so on], Class II Media [Conference
Bridge and so on], Class III Communication [IP Telephone and so on]). The fourth device
is a Network Connectivity Device, which is typically a LAN switch or router, IEEE 802.1
Bridge, IEEE 802.11 Wireless Access Point, and so on.
8. Use Fast Start Repeat Count to specify the number of LLDP PDUs that are transmitted
when the protocol is enabled.
The range is from 1 to 10. The default value is 3.
Configure the LLDP-MED Interface
 To configure the LLDP-MED interface:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
