NETGEAR M4100 Series User Manual

Configure Quality of Service
247
M4100 Series Managed Switch
Configure a DiffServ Class
You can add a new DiffServ class name or rename or delete an existing class. The screen
also allows you to define the criteria to associate with a DiffServ class. As packets are
received, these DiffServ classes are used to prioritize packets. You can use multiple match
criteria in a class. The logic is a Boolean logical AND for this criteria. After creating a class,
you can click the class link to display the Class screen.
 To configure a DiffServ class:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select QoS

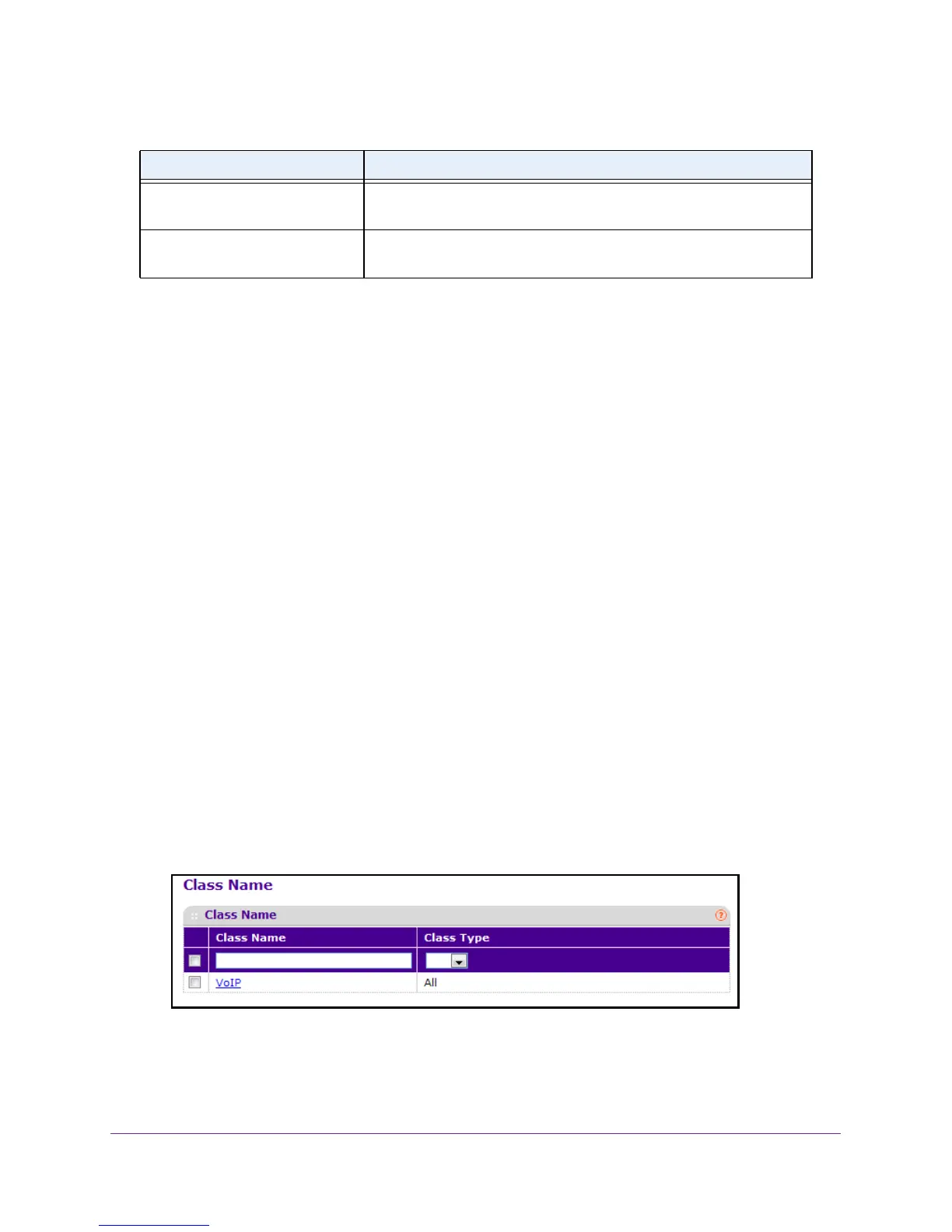

 DiffServ  Advanced  Class Configuration.
8. To create a new class, enter a class name, select the class type, and click the ADD button.
This field also lists all the existing DiffServ class names, from which one can be selected.
Policy Attributes table Displays the number of configured policy attributes (attached to the
policy class instances) out of the total allowed on the switch.
Service table Displays the number of configured services (attached to the policies on
specified interfaces) out of the total allowed on the switch.
Table 73. Diffserv Configuration
Field Description
