NETGEAR M4100 Series User Manual

Configure Quality of Service
236
M4100 Series Managed Switch
The default value is untrusted.
12. Click the APPL
Y button.
The updated configuration is sent to the switch.
Map 802.1p Priorities to Queues
 To map 802.1p priorities to queues:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

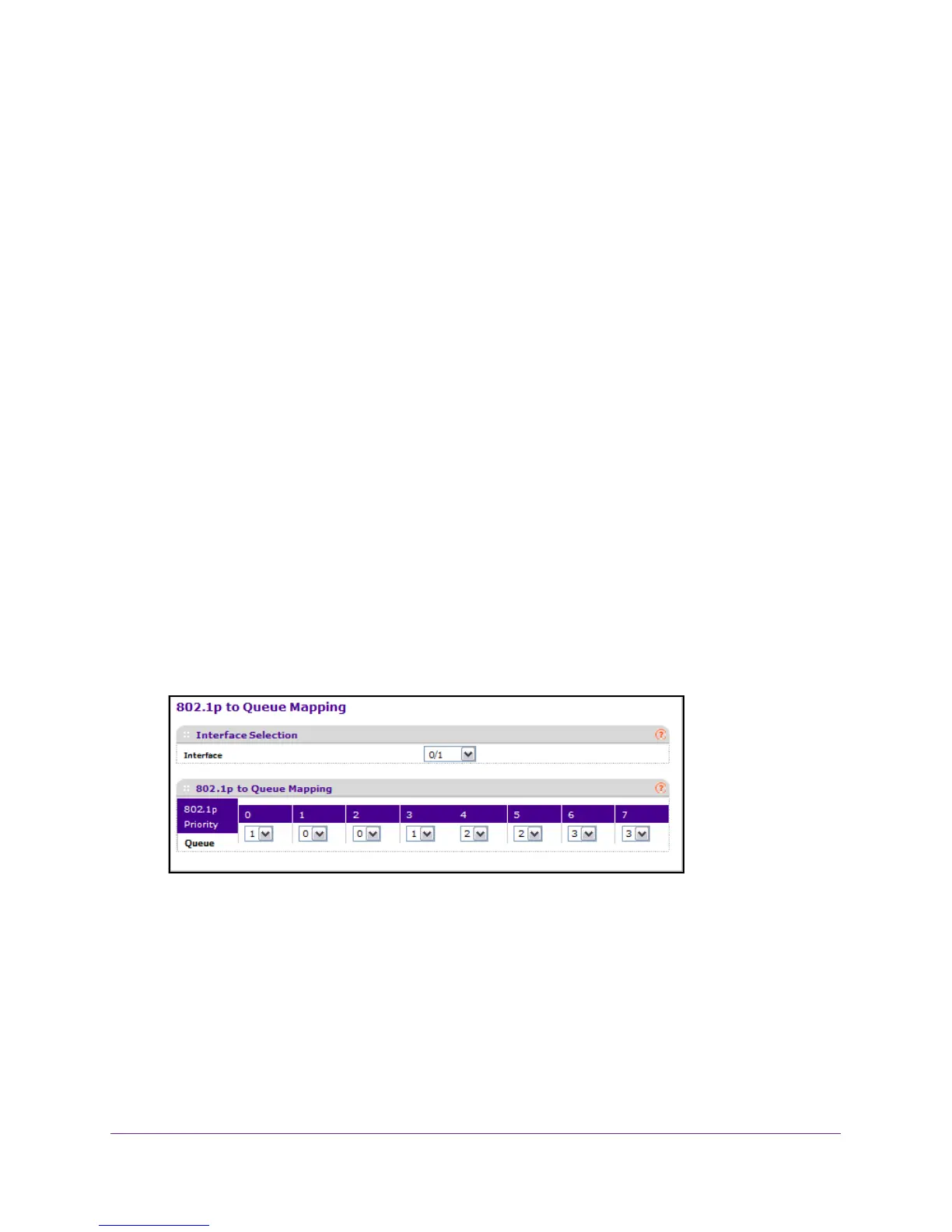

7. Select QoS
 CoS  Advanced  802.1p to Queue Mapping.
8. Use Interface to specify CoS configuration settings based on the interface or specify all CoS
configurable interfaces.
9. Specify which internal traf
fic class to map the corresponding 802.1p value.
The queue number depends on the specific hardware.
The 802.1p Priority row contains traffic class selectors for each of the eight 802.1p
priorities to be mapped.
The priority goes from low (0) to high (3). For example, traffic with
a priority of 0 is for most data traffic and is sent using best effort. Traffic with a higher
priority, such as 3, might be time-sensitive traffic, such as voice or video.
