Manage Device Security
335
M4100 Series Managed Switch

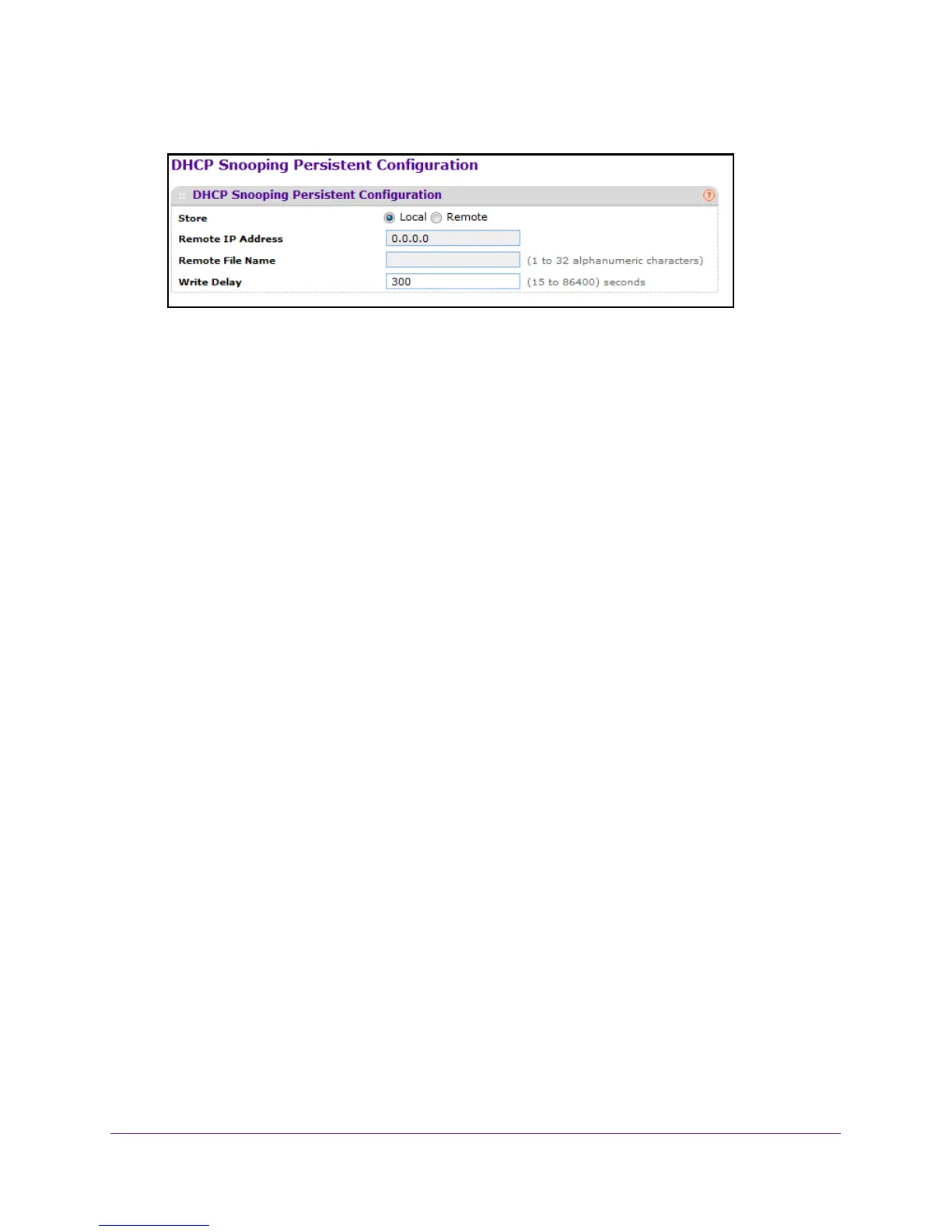

7. Select Security  Control > DHCP Snooping  Persistent Configuration.
8. Use Store to select the local store or remote store.
Selecting Local disables the remote fields like Remote File Name and Remote IP
address.
9. Use Remote IP
Address to configure the remote IP address on which the snooping
database is stored when Remote is selected.
10. Use Remote File Name to configure the remote file name to store the database when
remote is selected.
11. Use W
rite Delay to configure the maximum write time to write the database into local or
remote.
The range of Write Delay is 15 to 86400.
View DHCP Snooping Statistics
 To view DHCP snooping statistics:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
