NETGEAR M4100 Series User Manual

Configure Switching Information
169
M4100 Series Managed Switch
needed only when you want to make sure that the multicast router always receives IGMP
packets from the switch in a complex network.
 To configure IGMP snooping for a multicast router:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

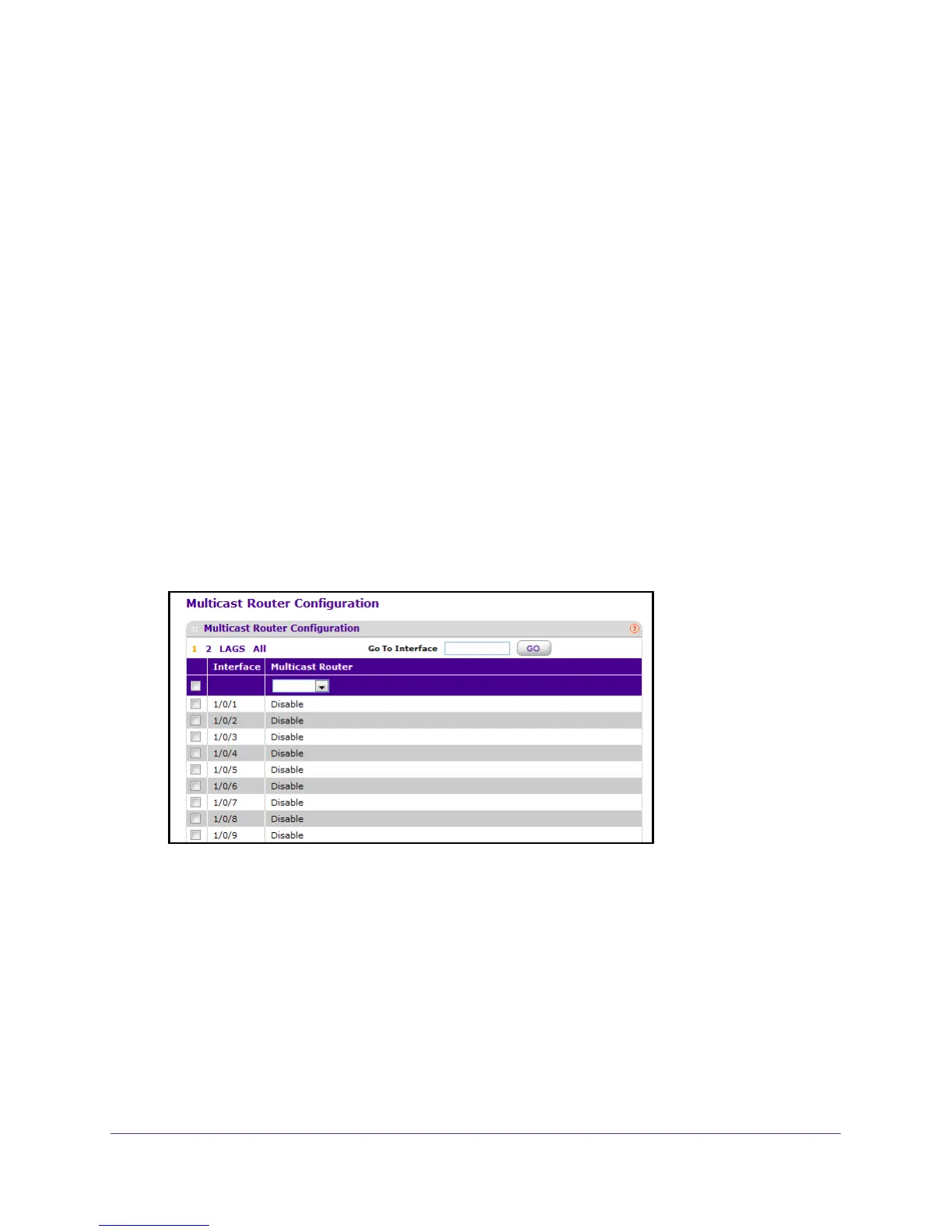

7. Select Switching
 Multicast  IGMP Snooping  Multicast Router Configuration.
8. Select one or more Interface check boxes.
9. In the Multicast Router list, select Enable or Disable for the selected interfaces.
Configure IGMP Snooping for a Multicast Router VLAN
You can configure the interface to forward only the snooped IGMP packets that come from
VLAN ID (<vlanId>) to the multicast router attached to this interface. The configuration is not
needed most of the time because the switch automatically detects the presence of a
multicast router and forwards IGMP packets accordingly. It is needed only when you want to
make sure that the multicast router always receives IGMP packets from the switch in a
complex network.
