NETGEAR M4100 Series User Manual

Configure Switching Information
122
M4100 Series Managed Switch
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Switching
 VLAN  Advanced  VLAN Configuration.

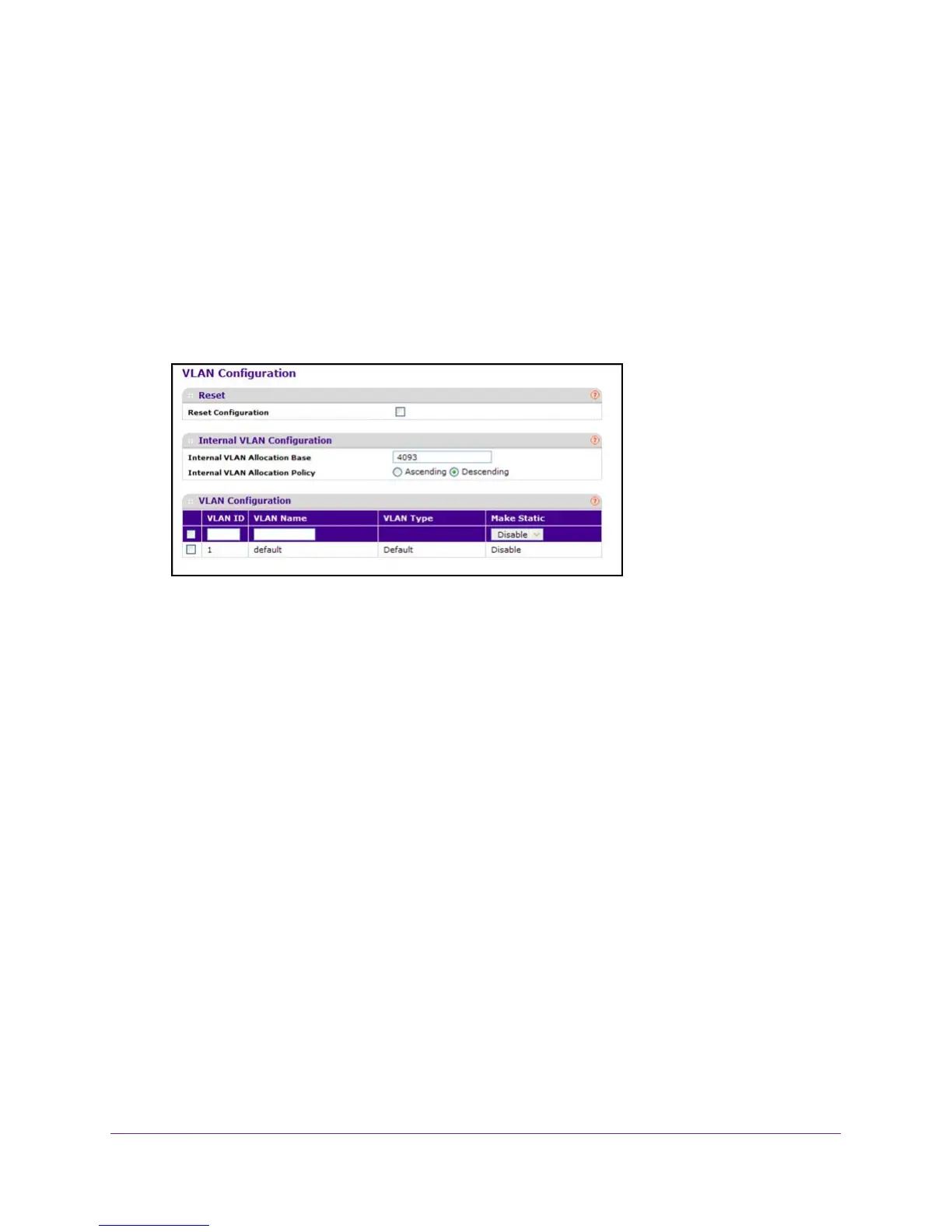

8. Select or clear the Reset Configuration check box.
If you select this check box and confirm your selection on the next screen, all VLAN
configuration parameters are reset to their factory default values.
Also, all VLANs except
for the default VLAN are deleted. The factory default values are as follows:
• All ports are assigned to the default VLAN of 1.
• All ports are configured with a PVID of 1.
• All ports are configured to an
Acceptable Frame Types value of Admit All Frames.
• All ports are configured with ingress filtering disabled.
• All ports are configured to transmit only untagged frames.
• GVRP is disabled on all ports and all dynamic entries are cleared.
Configure Internal VLAN Settings
You can view the allocation base and the allocation mode of internal VLAN. The internal
VLAN is reserved by port-based routing interface and invisible to the end user. Once these
internal VLANs are allocated by port-based routing interface, they cannot be assigned to a
routing VLAN interface.
 To configure internal VLAN settings:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
