Maintenance
420
M4100 Series Managed Switch

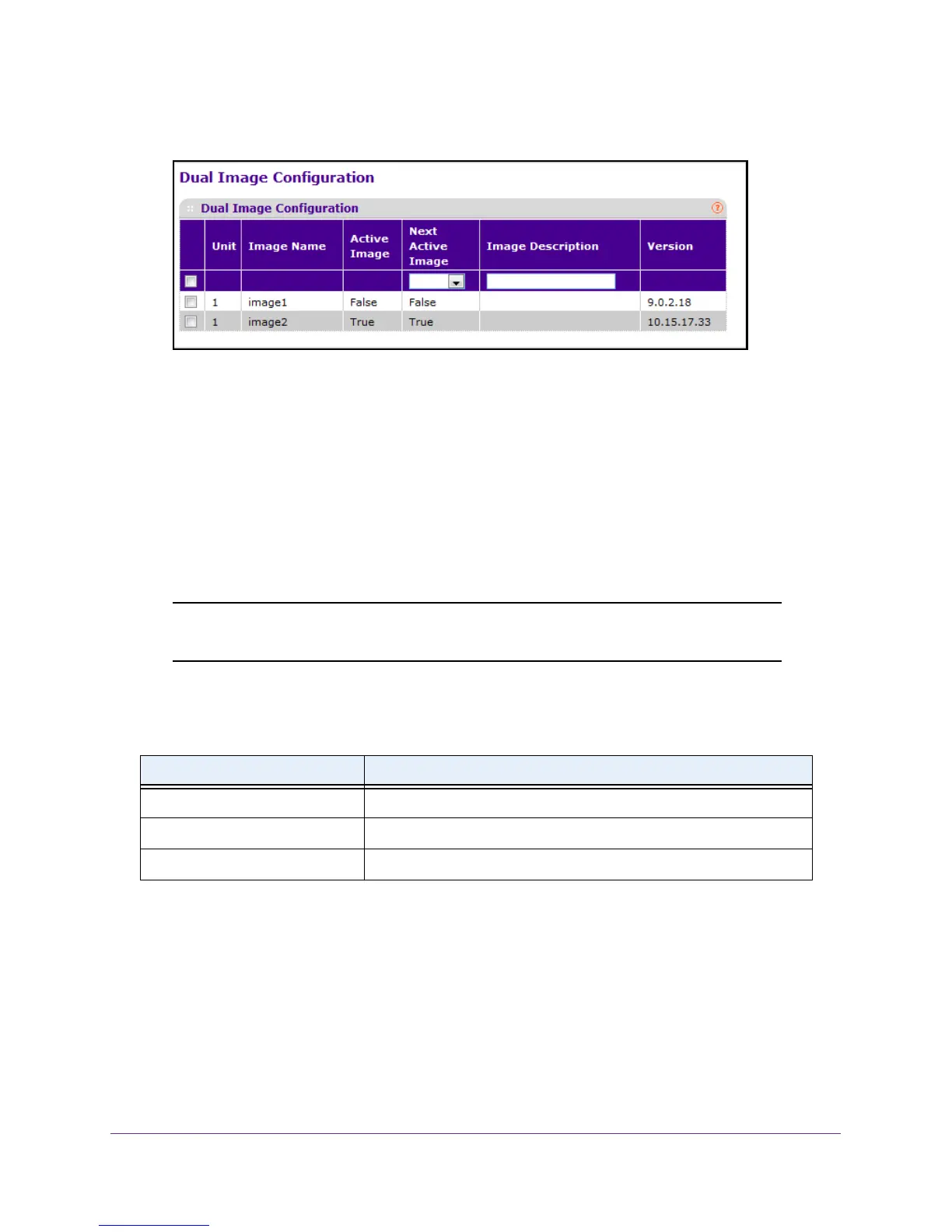

7. Select Maintenance  File Management  Dual Image Configuration.
8. Use Unit to select the unit.
9. Use Next
Active Image to make the selected image the next active image for subsequent
reboots.
10. Use Image Description to specify the description for the image that you selected.
11. Click DELETE to delete the selected image from permanent storage on the switch.
12. Click the APPL
Y button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately
.
Note: After activating an image, you must perform a system reset of the
switch in order to run the new code.
The following table describes the nonconfigurable information displayed on the screen.
Table 105. Dual Image Configuration
Field Description
Image Name This displays the image name for the selected unit.
Active Image Displays the current active image of the selected unit.
Version Displays the version of the image1 code file.
Use the Ping IPv4 Utility
Use this screen to tell the switch to send a Ping request to a specified IP address. You can
use this to check whether the switch can communicate with a particular IP station. When you
click the APPLY button, the switch sends specified number of ping requests and the results
are displayed.
If a reply to the ping is not received, the following message displays:
