ENGINE
M6060, M7060, WSM
1-M18

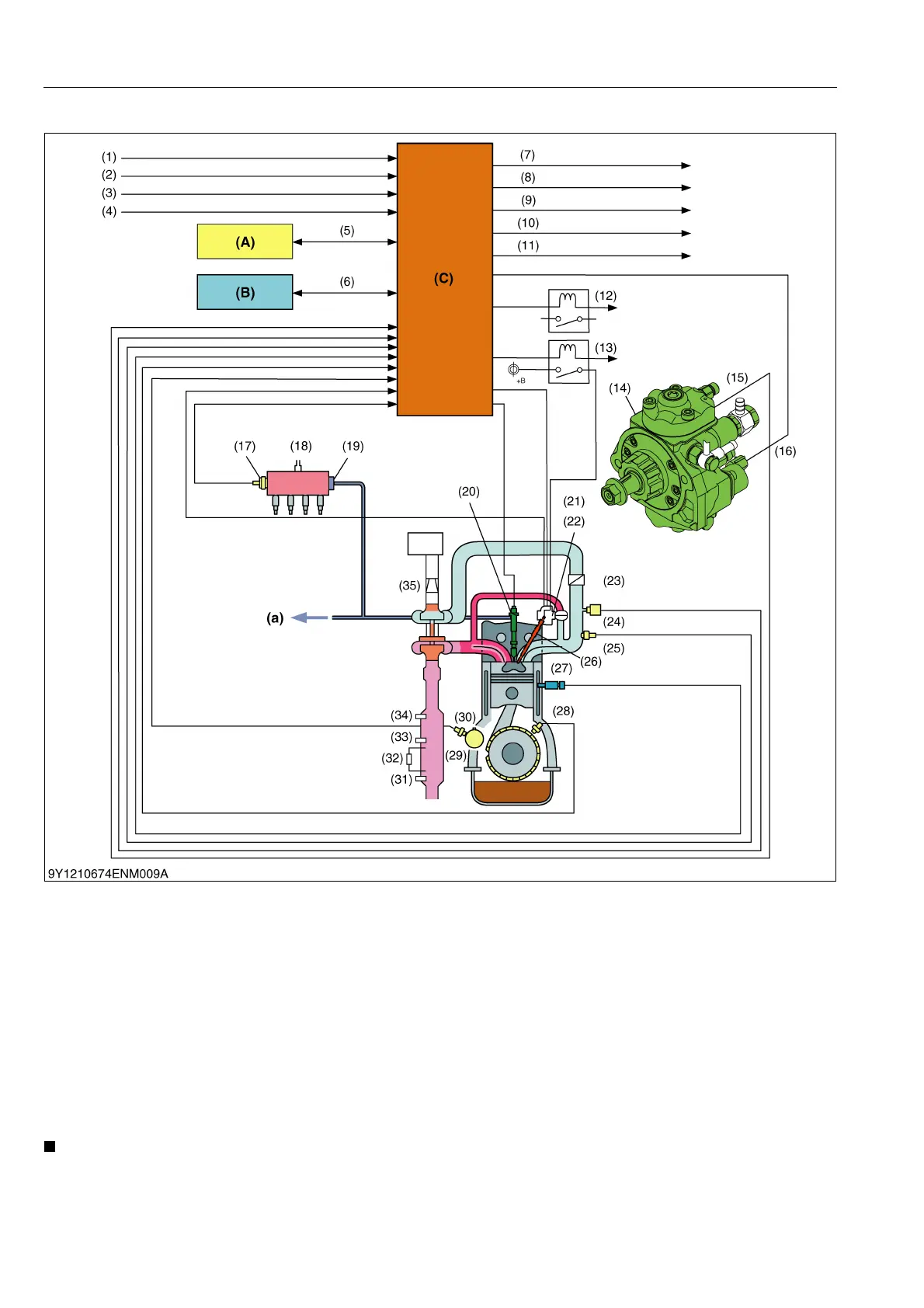

[5] ENGINE CONTROL SYSTEM
• The signals marked with * are CAN communication.
9Y1210828ENM0030US0
(1) Key Switch ON Signal
(2) Starter Switch Signal
(3) Emergency Stop Switch
(4) Oil Pressure Switch
(5) CAN Communication for
Tractor
(Accelerator Position Signal*,
Neutral Switch*, Machine
Travel Speed Signal*)
(6) CAN Communication for
Service
(7) Engine Warning Light Signal
(8) Stop Lamp Signal
(9) Oil Pressure Warning Lamp
Signal
(10) Overheat Lamp Signal
(11) Glow (Air Heater) Lamp Signal
(12) Starter Relay
(13) Glow Relay
(14) Supply Pump
(15) Fuel Temperature Sensor
(16) SCV (Suction Control Valve)
(17) Rail Pressure Sensor
(18) Rail
(19) Pressure Limiter
(20) Injector
(21) EGR DC Motor
(22) EGR Lift Sensor
(23) Intake Throttle Valve
(24) Intake Air Pressure Sensor
(25) Intake Air Temperature
Sensor
(26) Glow Plug
(27) Coolant Temperature Sensor
(28) Crankshaft Position Sensor
(29) Diesel Particulate Filter
(Hereinafter Referred To As
The "DPF") Muffler
(30) Camshaft Position Sensor
(31) Temperature Sensor (DPF
Outlet Exhaust Temperature)
(T
2
)
(32) Differential Pressure Sensor
(DPF Differential Pressure)
(∆P)
(33) Temperature Sensor
(DPF Inlet Exhaust
Temperature) (T
1
)
(34) Temperature Sensor (DOC
Inlet Exhaust Temperature)
(T
0
)
(35) Air Flow Sensor
(A) CAN2 Connector
(For Tractor)
(B) CAN1 Connector
(For Service)
(C) Engine ECU
(a) To Fuel Tank
To Next Page
