ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S58

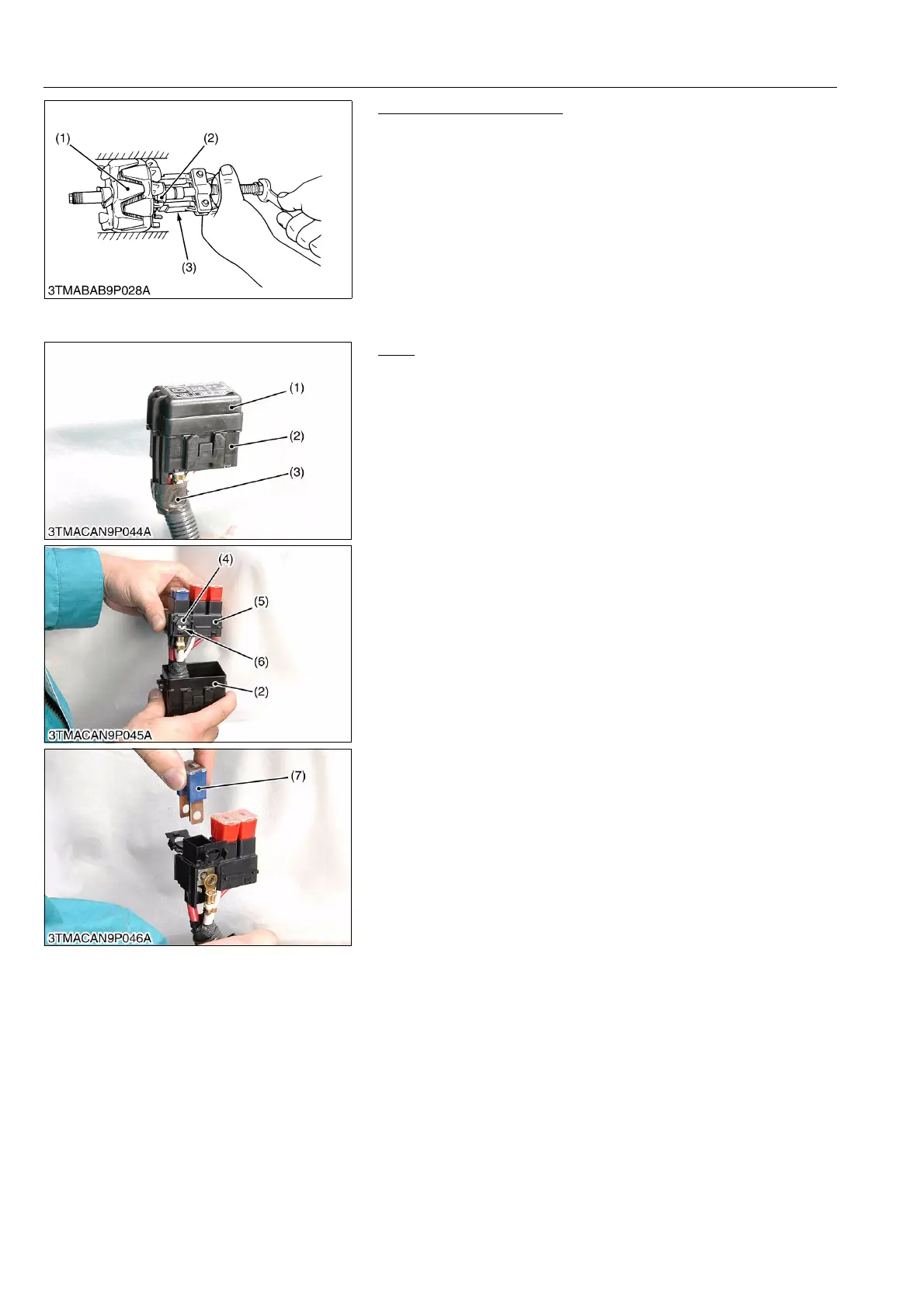

Bearing at Slip Ring Side
1. Lightly secure the rotor (1) with a vise to prevent damage, and
remove the bearing (2) with a puller (3).
9Y1210828ELS0107US0
[3] FUSE (SLOW BLOW 100 A) FOR CABIN MODEL
Fuse
[Replacing procedure for 100 A]
1. Remove the battery negative cable.
2. Remove the top cover (1) and protect tape (3).
3. Draw out the fuse stay (5) from the fuse box (2).
4. Open the cover (4) and remove the screw (6) to draw out the
fuse (100 A) (7).
(When reassembling)
• Be sure to apply the nylon tape.
9Y1210828ELS0108US0
(1) Rotor
(2) Bearing
(3) Puller
(1) Top Cover
(2) Fuse Box
(3) Tape
(4) Cover
(5) Fuse Stay
(6) Screw
(7) Fuse (100 A)
