ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S59
6. SERVICING
[1] STARTER

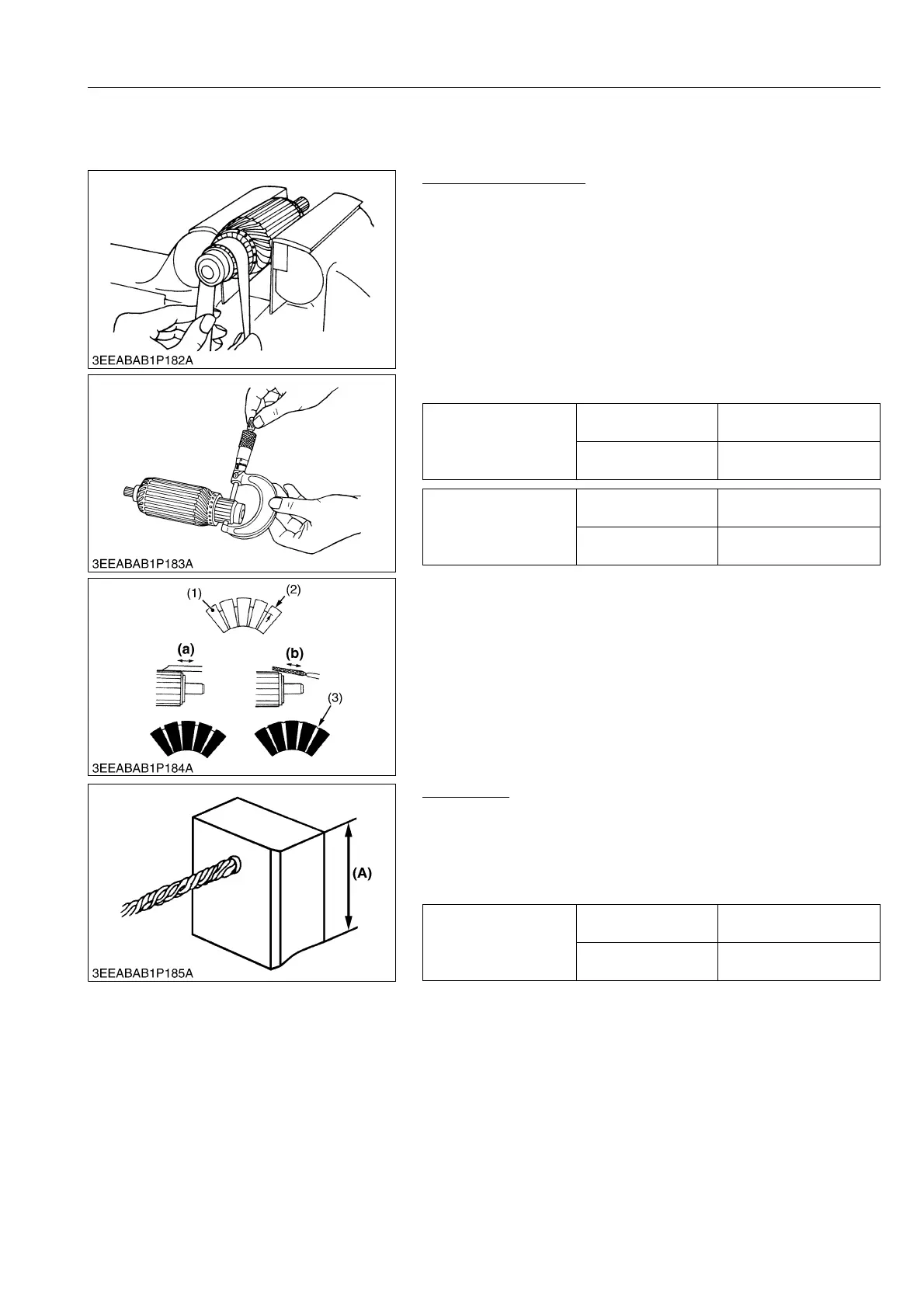

Commutator and Mica
1. Check the contact face of the commutator for wear, and grind
the commutator with emery paper if it is slightly worn.
2. Measure the commutator O.D. with an outside micrometer at
several points.
3. If the minimum O.D. is less than the allowable limit, replace the
armature.
4. If the difference of the O.D.'s exceeds the allowable limit, correct
the commutator on a lathe to the factory specification.
5. Measure the mica undercut.
6. If the undercut is less than the allowable limit, correct it with a
saw blade and chamfer the segment edges.
9Y1210828ELS0109US0
Brush Wear
1. If the contact face of the brush is dirty or dusty, clean it with
emery paper.
2. Measure the brush length (A) with vernier calipers.
3. If the length is less than the allowable limit, replace the yoke
assembly and brush holder.
9Y1210828ELS0110US0
Commutator O.D.
Factory specification
32.0 mm
1.26 in.
Allowable limit
31.4 mm
1.24 in.
Mica undercut
Factory specification
0.50 to 0.80 mm
0.0197 to 0.0315 in.
Allowable limit
0.20 mm
0.0079 in.
(1) Segment
(2) Depth of Mica
(3) Mica
(a) Good
(b) Bad
Brush length (A)
Factory specification
18.0 mm
0.709 in.
Allowable limit
11.0 mm
0.433 in.
KiSC issued 08, 2013 A
