ENGINE
M6060, M7060, WSM
1-S45

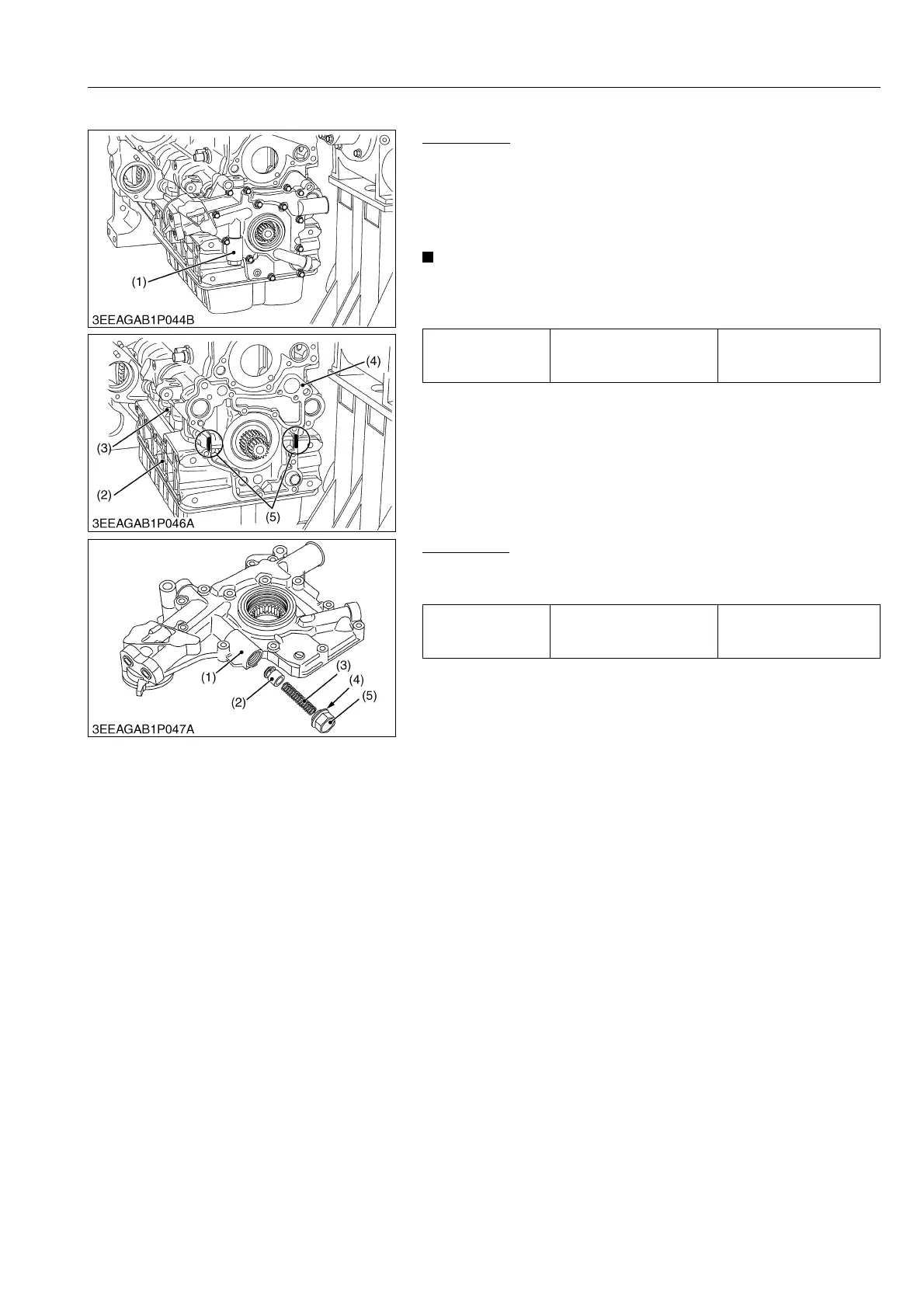

(8) Front Cover
Front Cover
1. Remove the front cover (1).
(When reassembling)
• Make sure that the front cover gasket (4) set in position.
• Make sure that the liquid gasket coating surface is free of water,
dust and oil in order to keep sealing effect.
• Assemble the adhesive-applied parts within ten minutes.
• Apply a liquid gasket (Three Bond 1217H or equivalent) (5)
to the seam between crankcase 1 (3) and crankcase 2 (2).
9Y1210828ENS0064US0
Relief Valve
1. Remove the relief valve retaining screw (5).
2. Remove the relief valve (2), the spring (3) and the packing (4).
9Y1210828ENS0065US0
Tightening torque
Front cover mounting
screw
30 to 34 N·m
3.0 to 3.5 kgf·m
22 to 25 lbf·ft
(1) Front Cover
(2) Crankcase 2
(3) Crankcase 1
(4) Front Cover Gasket
(5) Liquid Gasket
Tightening torque Relief valve retaining screw
69 to 78 N·m
7.0 to 8.0 kgf·m
51 to 57 lbf·ft
(1) Front Cover
(2) Relief Valve
(3) Spring
(4) Packing
(5) Relief Valve Retaining Screw
To Next Page
