ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S52
[13] SOLENOID VALVE
(1) PTO
Solenoid Valves
1) Connector Voltage
1. Remove the connector (1).
2. Turn on the main switch, PTO switch, 4WD switch at ON
position.
3. Measure the voltage across the each terminal and chassis.
4. If the voltage differs from battery voltage, the wiring harness,
fuse or main switch is faulty.
2) Solenoid Valve
1. Disconnect the wire harness connector (1).
2. Measure the resistance with an ohmmeter across the each
terminal 1/2/3 on the connector (1) and chassis.
3. If infinity is indicated, the solenoid valve is faulty.
9Y1210828ELS0096US0
Voltage
Each terminal –
Chassis
Approx. battery voltage
Resistance
Solenoid valve 1/2/3
terminal to chassis
10 to 12 Ω

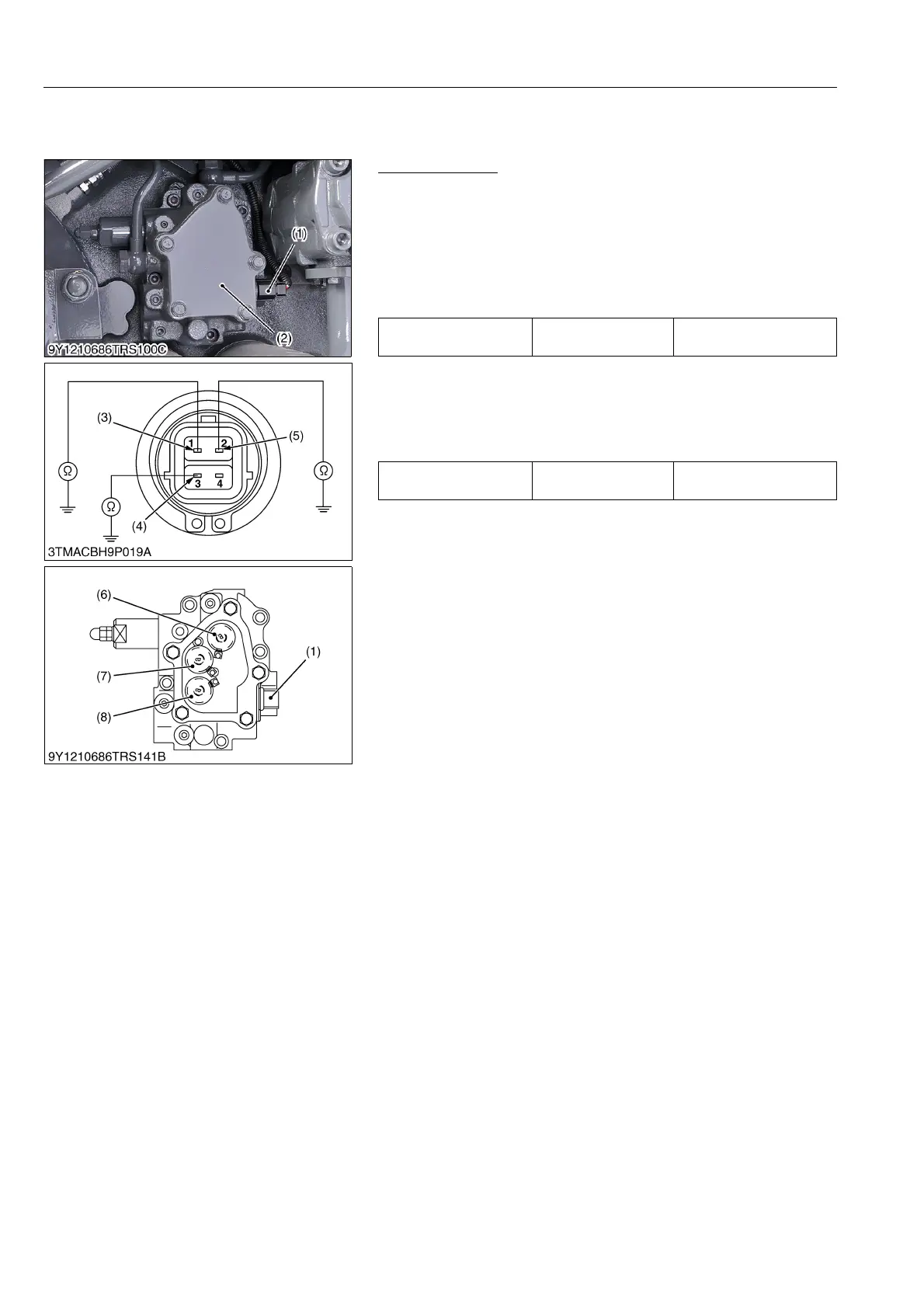

(1) Connector
(2) Solenoid Valve Assembly
(3) Terminal 1 for 4WD Solenoid Valve
(4) Terminal 3 for PTO Solenoid Valve
(5) Terminal 2 for Rear Differential Lock
Solenoid Valve
(6) PTO Solenoid Valve
(7) Rear Differential Lock Solenoid
Valve
(8) 4WD Solenoid Valve
To Next Page
