BRAKES
M6060, M7060, WSM
4-S16
(8) Brake Disk and Plate
• Separating rear axle case from transmission case, refer to 3-S5 and 3-S7.
9Y1210828BRS0023US0

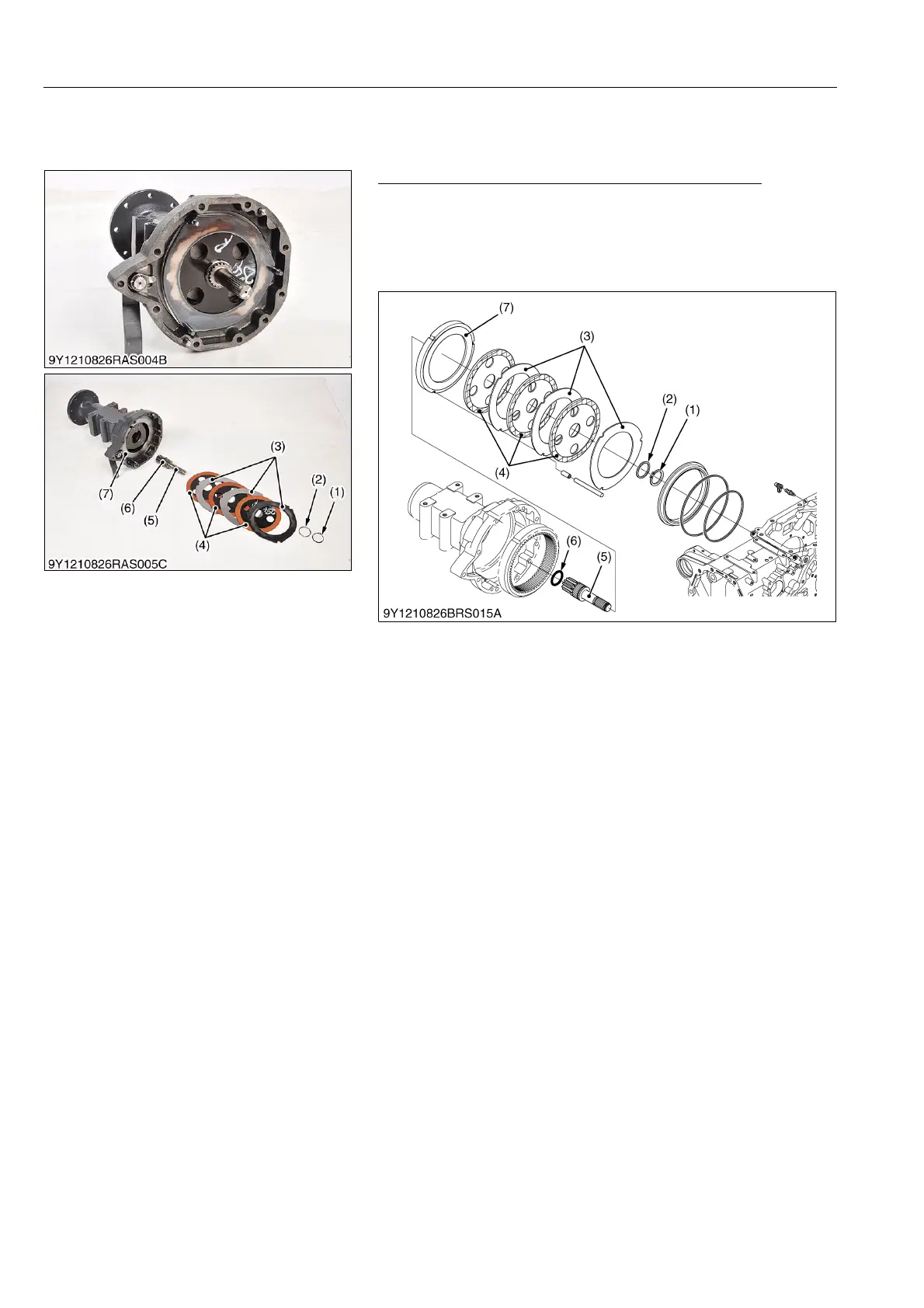

Brake Shaft, Brake Disk, Steel Plate and Brake Plate
1. Remove the circlip (1).
2. Draw out the brake shaft with brake disk (4) and steel plates (3).
3. Remove the brake plate (7).
(When reassembling)
• Place the brake disks (4) so that the holes aligned to next holes.
9Y1210828BRS0025US0
(1) Circlip
(2) Collar
(3) Steel Plate
(4) Brake Disk
(5) Brake Shaft
(6) O-ring
(7) Brake Plate
