HYDRAULIC SYSTEM

M6060, M7060, WSM

7-S9

[3] POSITION AND DRAFT CONTROL LINKAGE

Adjusting Position Control Rod and Draft Control Rod

1. Be sure to adjust the position control rod (1) length (L1) and

draft control rod (3) length (L2).

IMPORTANT

• Each draft control lever and position control lever should

contact with lever guide lowest position when operate the

position lever 1 (2) and draft lever 1 (4) to end of direction

(a).

If not, adjust the position control rod (1) length (L1) and/or

draft control rod (3) length (L2).

[ROPS Model]

[CABIN Model]

9Y1210828HYS0007US0

Position control rod

length (L1)

Factory specification

Approx.

159 mm

6.26 in.

Draft control rod length

(L2)

Factory specification

Approx.

146 mm

5.75 in.

Position control rod

length (L1)

Factory specification

Approx.

185 mm

7.28 in.

Draft control rod length

(L2)

Factory specification

Approx.

179 mm

7.05 in.

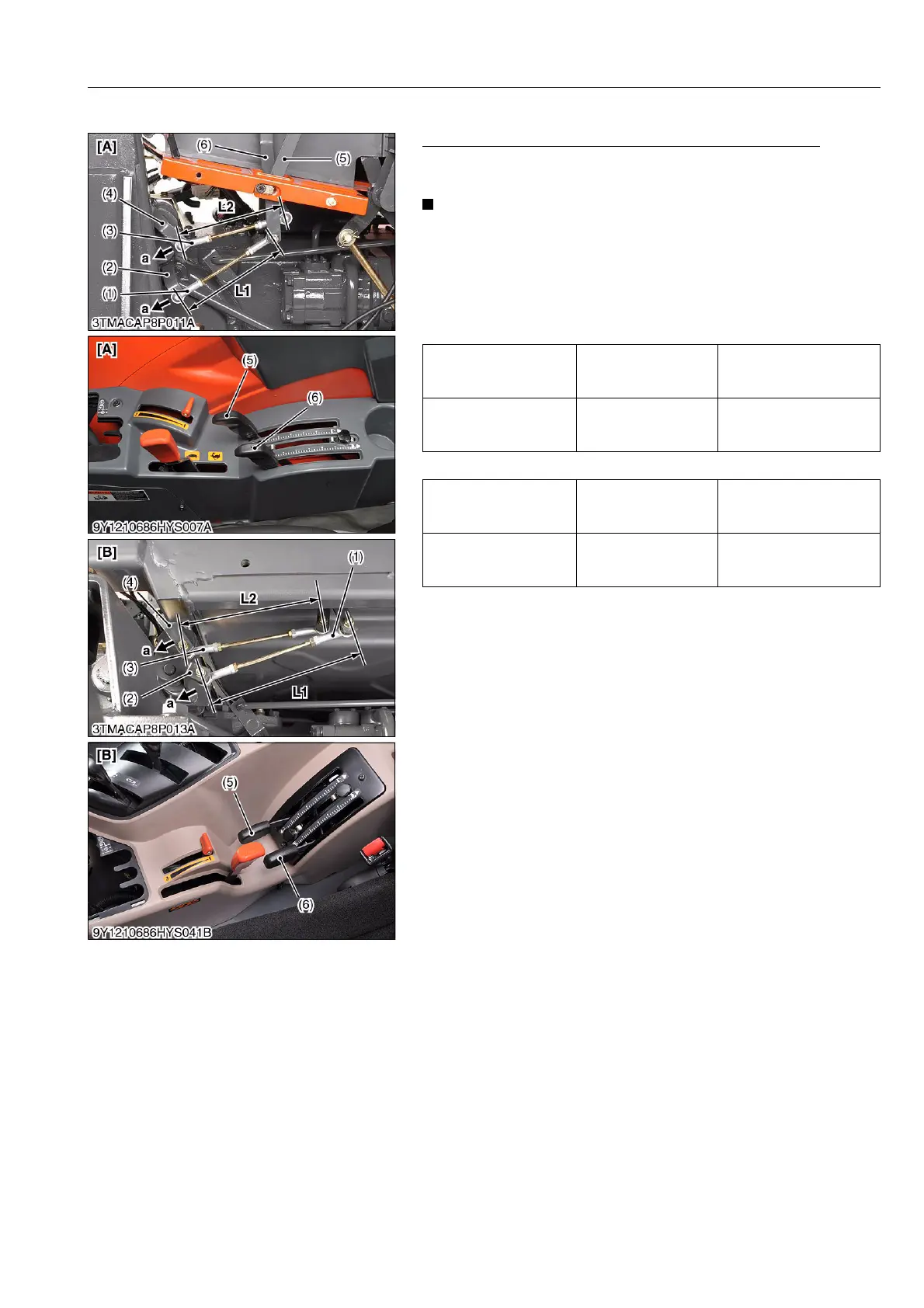

(1) Position Control Rod

(2) Position Lever 1

(3) Draft Control Rod

(4) Draft Lever 1

(5) Position Control Lever

(6) Draft Control Lever

[A] ROPS Model

[B] CABIN Model

L1 : Length of Position Control Rod

L2 : Length of Draft Control Rod

a : Direction for Lower

KiSC issued 08, 2013 A
