ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S10

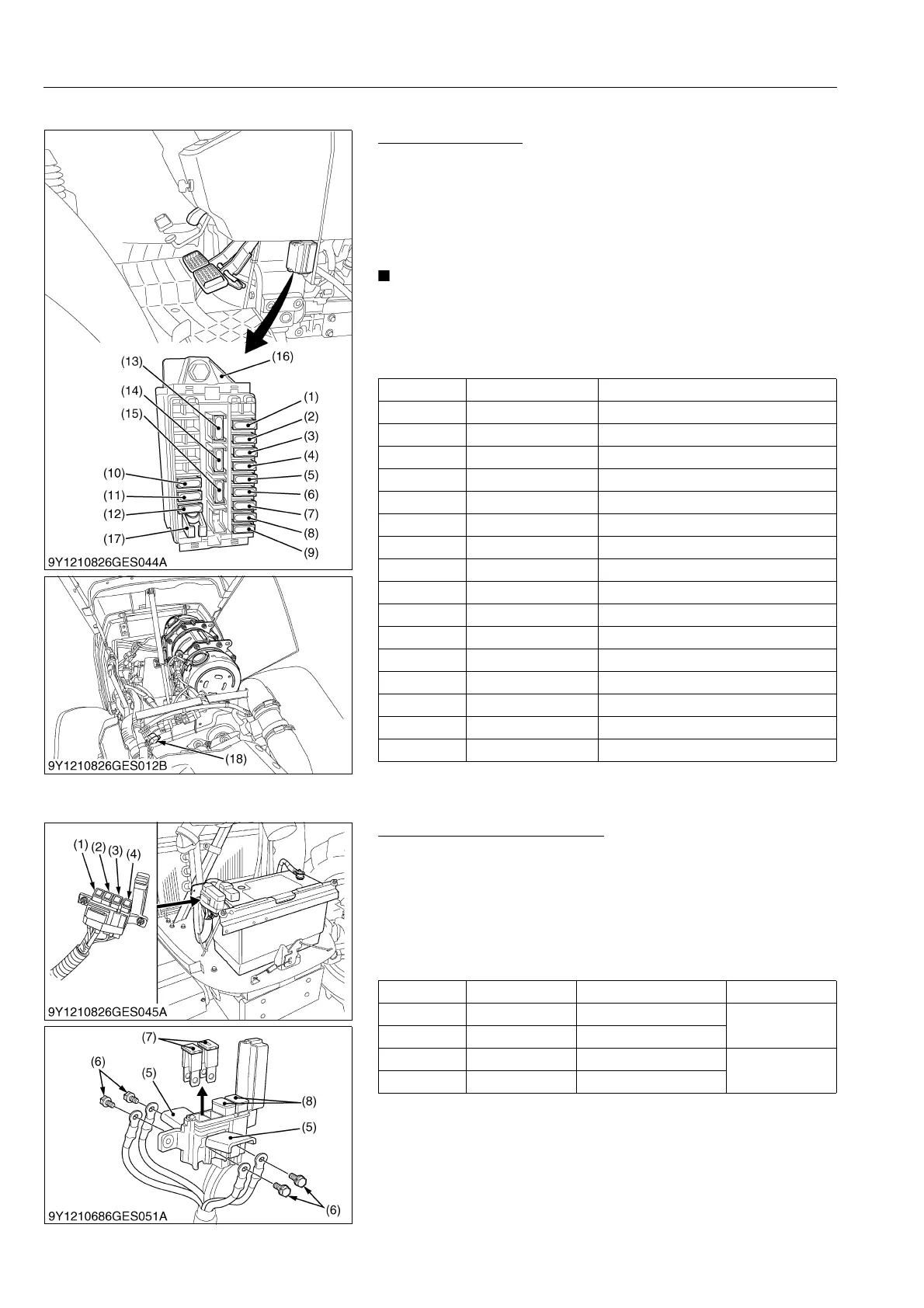

(2) Fuse
Fuse (ROPS Model)
1. The tractor electrical system is protected from potential damage
by fuses.
2. A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
3. If any of the fuses should blow, replace with a new one of the
same capacity.
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system.
Protected Circuit
9Y1210828ELS0010US0
Slow Blow Fuse (ROPS Model)
1. The slow blow fuse are intended to protect the electrical cabling.
If any of them has blown out, be sure to pinpoint the cause.
Never use any substitute, use only a KUBOTA genuine part.
2. Remove the bolt from fuse box. (Bolt fixed slow blow fuse)
Pull out the fuse from the fuse box.(Non bolt fixed slow-blow
fuse)
3. Replace with a new one of the same capacity.
9Y1210828ELS0011US0
Fuse No. Capacity (A) Protected circuit
(1) 15 Work light
(2) 5 Meter (Backup)
(3) 5 ECU (Backup)
(4) 10 Turn Signal
(5) 15 Loader Plug
(6) 5 Meter Panel
(7) 15 Head Light
(8) 15 Flasher
(9) 5 Starter Relay
(10) 5 PTO, Engine
(11) 5 Transmission control
(12) 15 ECU
(13) 5 Spare Fuse
(14) 10 Spare Fuse
(15) 15 Spare Fuse
(18) 20 CRS Power
(16) Fuse Case (17) Fuse Puller
No. Capacity Protected circuit Type
(1) 60 A Charge
Bolt fixed
(2) 50 A Engine preheat
(3) 40 A Head lamp, Starter
Non Bolt fixed
(4) 30 A Key switch, Work light
(5) Fuse Box
(6) Bolt
(7) Bolt Fixed Slow Blow Fuse
(8) Non Bolt Fixed Slow Blow Fuse
To Next Page
