TRANSMISSION

M6060, M7060, WSM

2-M6

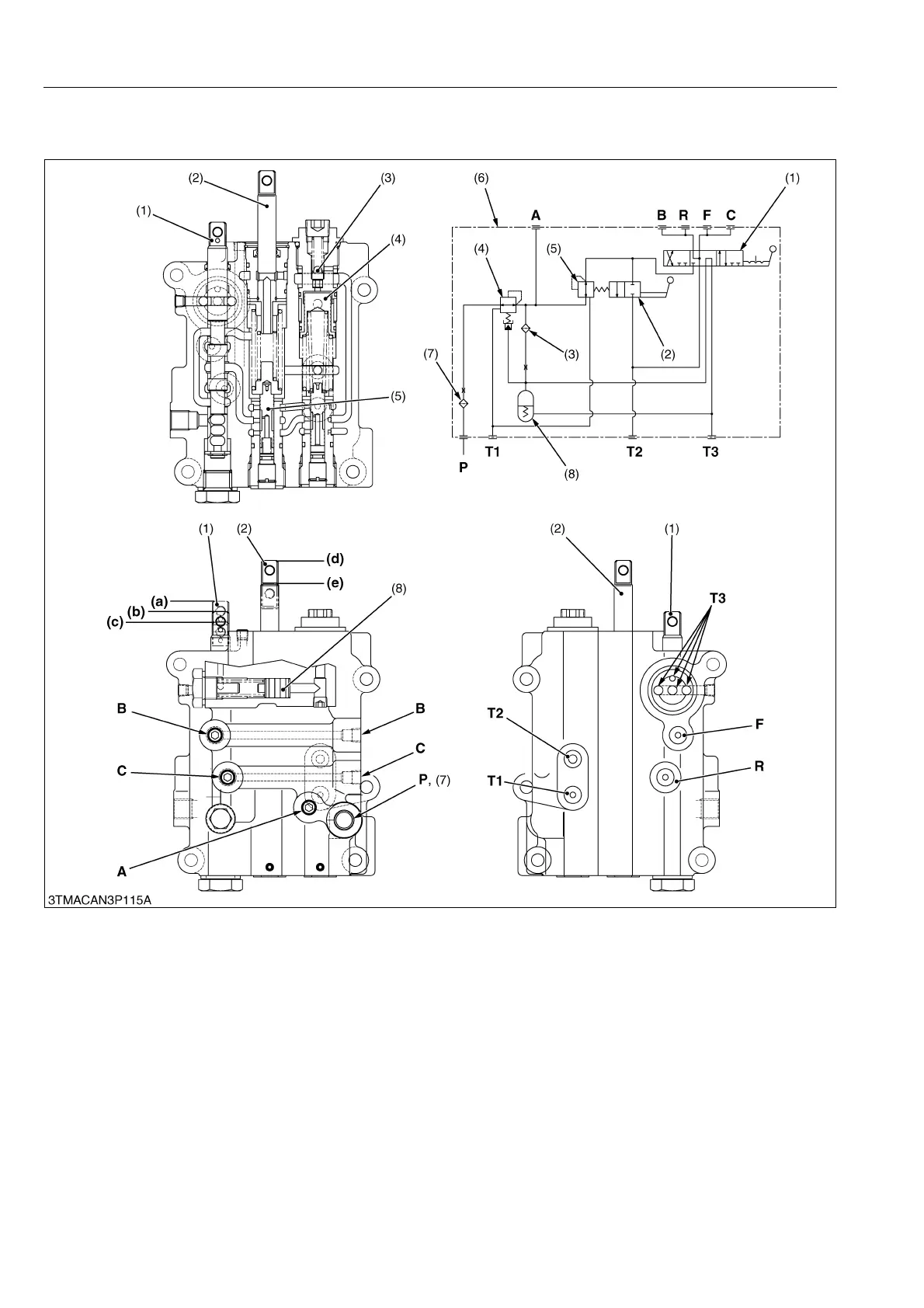

[2] HYDRAULIC SHUTTLE VALVE

(1) Structure

Hydraulic shuttle valve consists of modulating valve (4), proportionally reducing valve (5), shuttle shift spool (1),

accumulate valve (8) and other component parts.

9Y1210828TRM0006US0

(1) Shuttle Shift Spool

(Forward, Reverse)

(2) Inching Valve Spool

(3) Line Filter

(4) Modulating Valve

(5) Proportionally Reducing Valve

(6) Shuttle Valve

(7) Line Filter

(8) Accumulate Valve

(a) Shuttle Forward Position

(b) Shuttle Neutral Position

(d) Clutch Pedal Depressed

Position

(e) Clutch Pedal Released

Position

A: Pressure Check Port

(Modulation)

B: Pressure Check Port

(Reverse)

C: Pressure Check Port

(Forward)

F: To Clutch Body (Forward)

P: P Port (Pump)

R: To Clutch Body (Reverse)

T1 to T3: Tank Port

KiSC issued 08, 2013 A
