ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S47

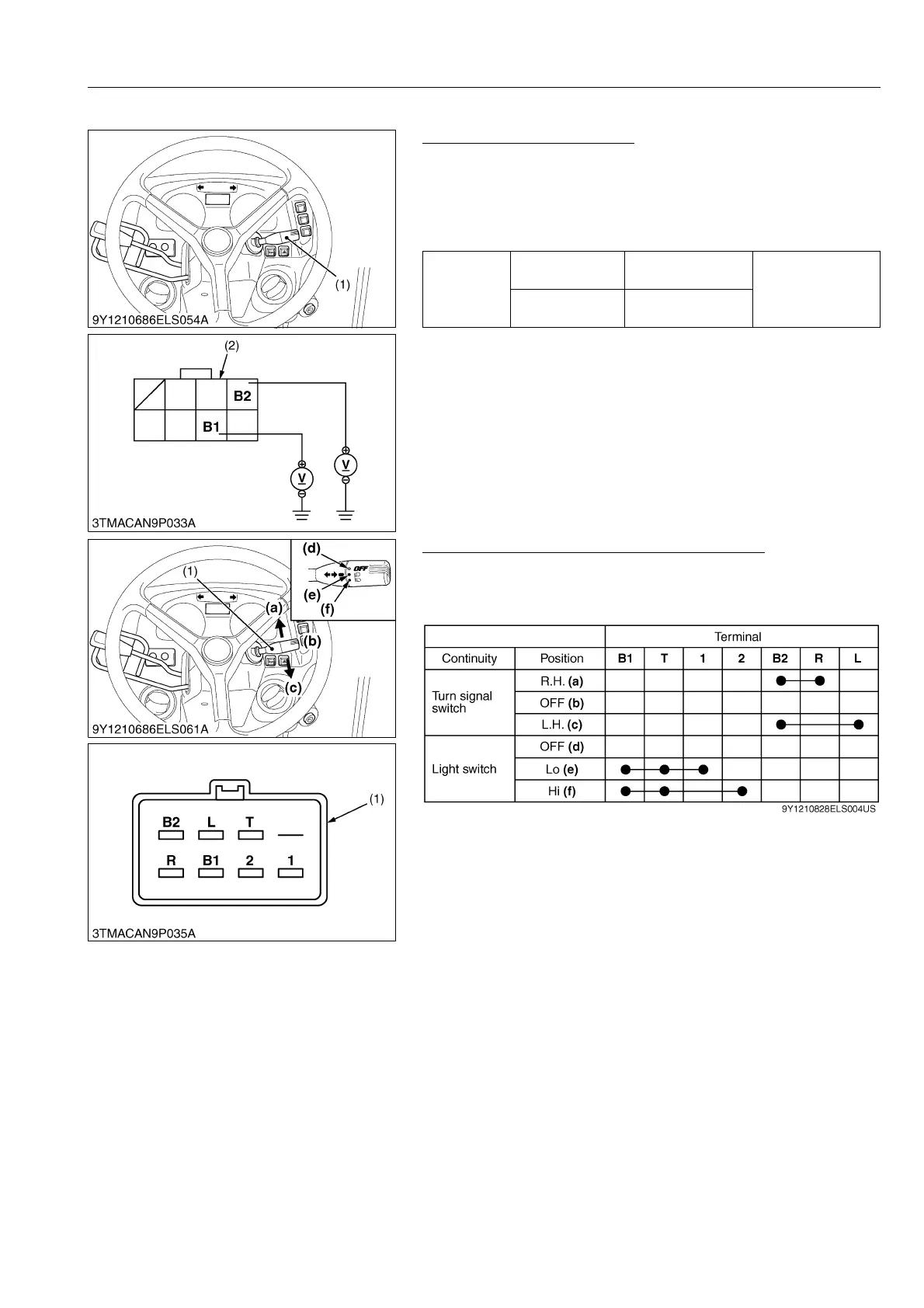

(2) Lever Combination Switch and Horn Switch (CABIN Model)
Checking Connector Voltage
1. Disconnect the lever combination switch connector (1).
2. Measure the voltage with voltmeter across the connector
terminal B1 and chassis, across the terminal B2 and chassis.
3. If the voltage differs from the battery voltage, the wiring harness,
fuses or main switch is faulty.
9Y1210828ELS0086US0
Checking Light Switch and Turn Signal Switch
1. Test the continuity through the switch with an ohmmeter.
2. If the continuity specified below is not indicated, the switch is
faulty.
9Y1210828ELS0087US0
Voltage
Main switch at
"OFF"
Ter min al B1 –
Chassis
Approx. battery
voltage
Main switch at
"ON"
Ter min al B2 –
Chassis
(1) Lever Combination Switch (2) Combination Switch Connector
(Wire Harness Side)
(1) Lever Combination Switch
Connector (Switch Side)
(a) Right Turn
(b) OFF
(c) Left Turn
(d) OFF
(e) Head Light (Lo)
(f) Head Light (Hi)
KiSC issued 08, 2013 A
