wsm M6060 - Removing Steering Controller (CABIN Model)

STEERING
M6060, M7060, WSM
6-S6
Steering Controller

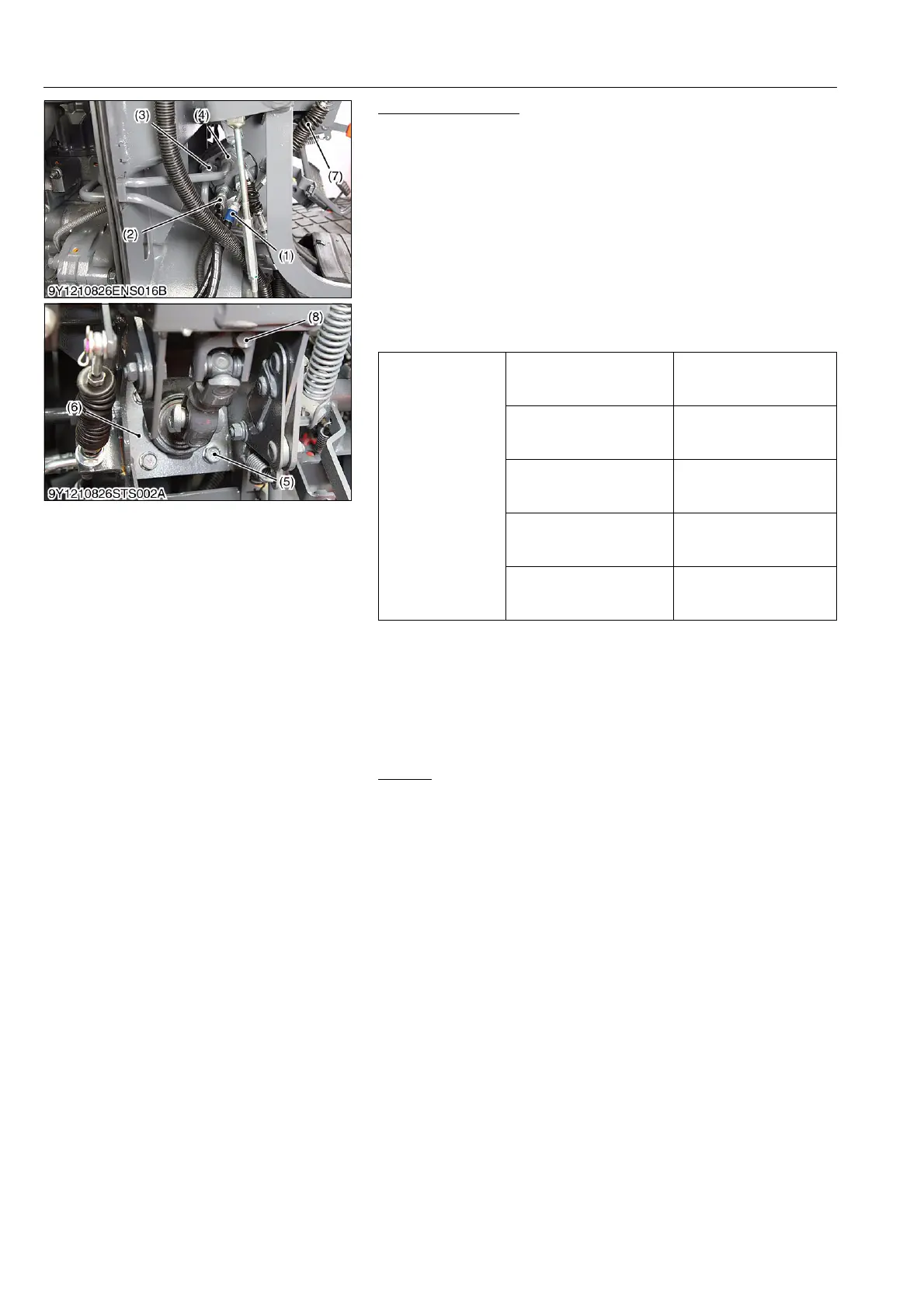

1. Disconnect the shuttle cable (7).
2. Disconnect the power steering delivery hose 1 (1) and hose 2
(2) from power steering controller.
3. Disconnect the oil cooler pipes (3), (4).
4. Remove the steering joint shaft mounting screw (8).
5. Remove the steering controller mounting screws (5) and
steering controller (6).
(When reassembling)
• Be sure to assemble the power steering delivery hose to original
position.
• After assembling the power steering controller, be sure to adjust
the shuttle lever "Neutral" position.
9Y1210828STS0009US0
(4) Removing Steering Controller (CABIN Model)
Bonnet
• See page 1-S18.
9Y1210828TRS0030US0
Tightening torque
Power steering delivery
hose retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
Controller pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Oil cooler pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Power steering controller
mounting screw
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.5 to 41.2 lbf·ft
Power steering joint shaft
mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Power Steering Delivery Hose 1
(2) Power Steering Delivery Hose 2
(3) Oil Cooler Pipe
(4) Oil Cooler Pipe
(5) Screw
(6) Steering Controller
(7) Shuttle Cable
(8) Steering Joint Shaft Mounting
Screw
KiSC issued 08, 2013 A
