wsm M6060 User Manual

CABIN
M6060, M7060, WSM
9-S23

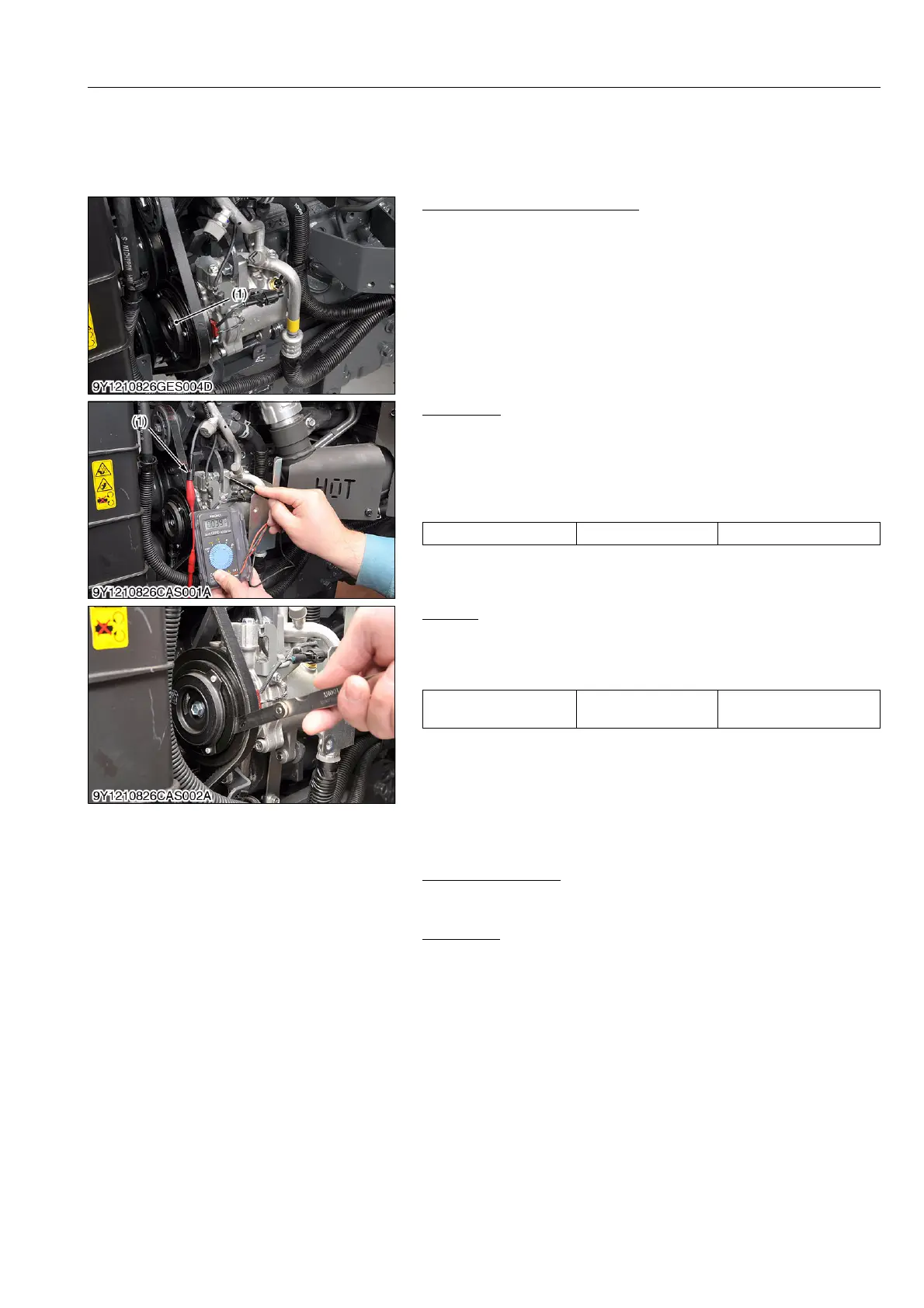

6. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
(1) Compressor
Operation of Magnetic Clutch
1. Turn off the A/C switch after starting the engine.
2. Check whether abrasion or abnormal noise is heard when only
the magnetic clutch pulley is running.
3. Check that the magnetic clutch (1) does not slip when the A/C
switch and blower switch are turned ON (when the air
conditioner is in operation).
4. If anything abnormal is found, repair or replace.
9Y1210828CAS0032US0
Stator Coil
1. Measure the resistance of the stator coil with an ohmmeter
across the 1P connector (1) of magnetic clutch and compressor
body.
2. If the measurement is not within the factory specifications,
replace the stator coil.
9Y1210828CAS0033US0
Air Gap
1. Check the air gap with feeler gauge.
2. If the measurement is not within the factory specifications,
adjust it. (See page 9-S20.)
9Y1210828CAS0034US0
(2) Relay (A/C Compressor, Front Working Light, Front Wiper, Blower,
Blower Hi, ACC, Auxiliary Power)
Connector Voltage
• See page 8-S45.
9Y1210828CAS0035US0
Relay Test
• See page 8-S45.
9Y1210828CAS0036US0
(1) Magnetic Clutch
Stator coil resistance Factory specification 3.0 to 4.0 Ω
(1) 1P Connector
Air gap Factory specification
0.30 to 0.65 mm
0.012 to 0.025 in.
KiSC issued 08, 2013 A
