TRANSMISSION
M6060, M7060, WSM
2-M5
(3) Hydraulic Clutch Pack
The shuttle shift section allows the operators to
change forward and reverse with a shuttle lever. It is
using hydraulic clutch shifting.
When the shuttle lever is move to the F or R position,
clutch is engaged to the front or rear by the hydraulic.
9Y1210828TRM0005US0

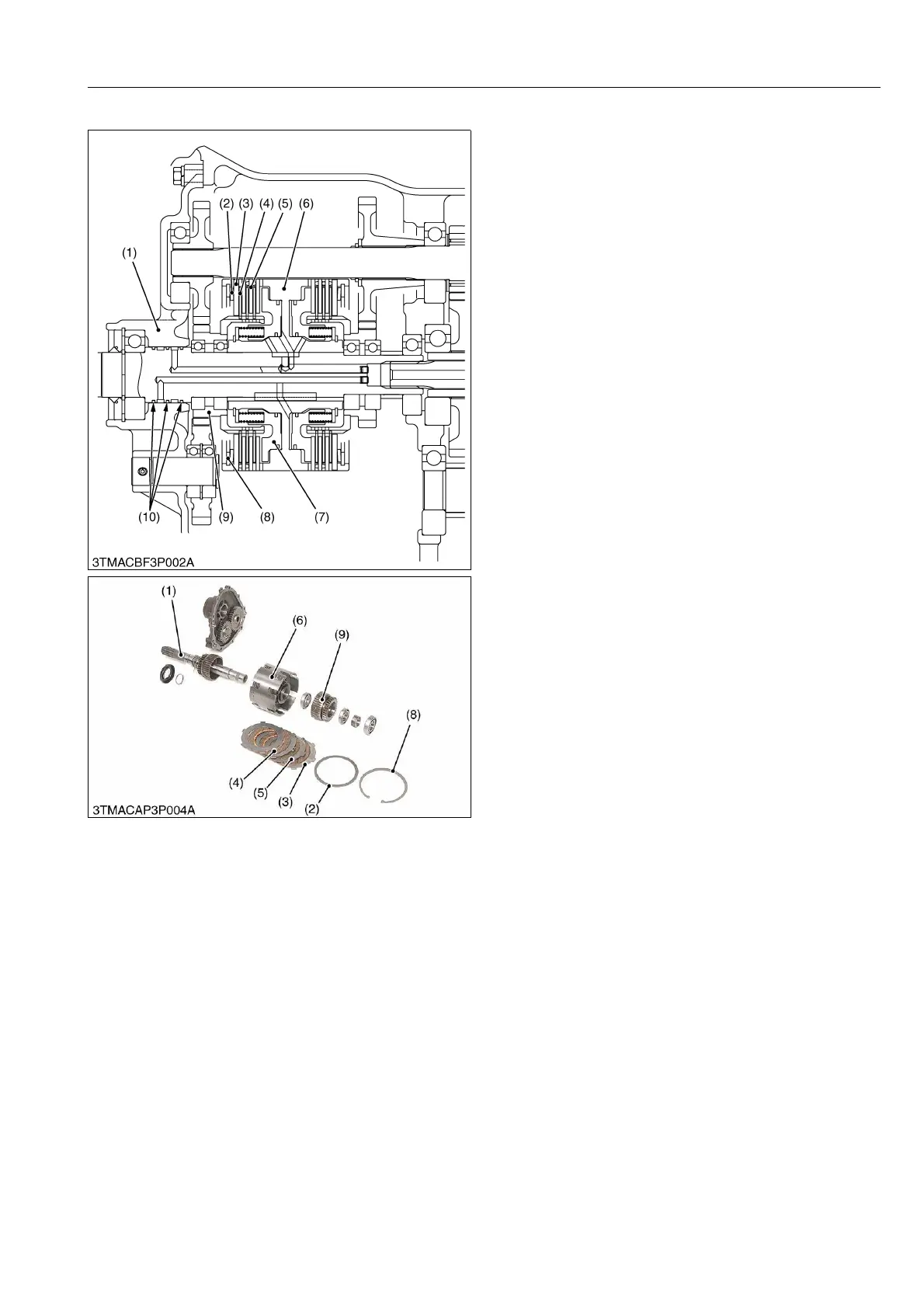

(1) Input Shaft
(2) Belleville Washer (Cupped
Spring Washer)
(3) Pressure Plate
(4) Clutch Disc
(5) Steel Plate
(6) Clutch Body
(7) Piston
(8) Internal Circlip
(9) 27T Gear
(10) Seal Ring
