REAR AXLE
M6060, M7060, WSM
3-S5

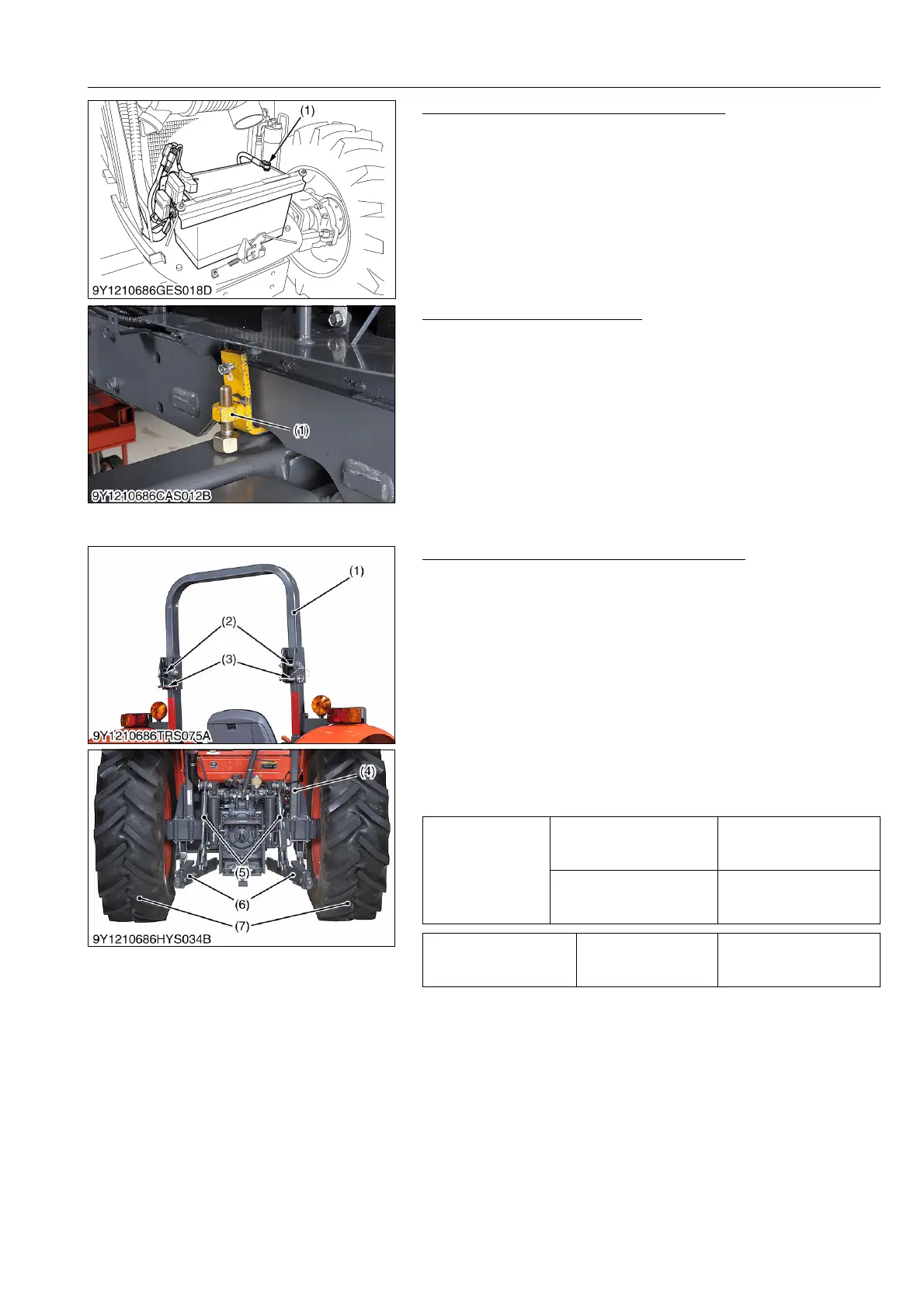

Disconnecting Battery Negative Terminal
1. Open the bonnet.
2. Disconnect the battery negative terminal (1).
9Y1210828RAS0006US0
Front Axle Rocking Restrictor
1. Chock the wheels and install the front axle rocking restrictor (1)
to the front axle bracket on both sides. (See page G-73.)
9Y1210828RAS0007US0
[2] SEPARATING REAR AXLE (ROPS MODEL)
ROPS, Lower Link, Lift Rod and Rear Wheel
1. Loosen the ROPS under frame (4) mounting screws. (Do not
remove screws.)
2. Remove the ROPS upper frame (1).
3. Remove the lift rod (5) and lower link (6).
4. Chock the front wheels and place the disassembling stand
under the transmission case.
5. Remove the both rear wheels (7) and then place the
disassembling stand under the rear axle case.
(When reassembling)
• To assemble the ROPS, fix the upper frame with screw (2) and
pin (3) temporarily, then tighten the under frame screws evenly
with specified torque.
• Adjust the upper frame does not fall down with screw (2).
9Y1210828RAS0008US0
(1) Negative terminal
(1) Front Axle Rocking Restrictor
Tightening torque
Rear wheel mounting nut
344 to 392 N·m
35.0 to 40.0 kgf·m
254 to 289 lbf·ft
ROPS under frame
mounting screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
ROPS upper frame lift up
force at center of upper
frame
Reference value
246 to 284 N
25.0 to 29.0 kgf
55.2 to 63.9 lbf
(1) ROPS Upper Frame
(2) Screw
(3) Pin
(4) ROPS Under Frame
(5) Lift Rod
(6) Lower Link
(7) Rear Wheel
